Datasheet AD8016 (Analog Devices)

HerstellerAnalog Devices
BeschreibungFull Rate ADSL Line Driver With Powerdown
Seiten / Seite20 / 1 — Low Power, High Output. Current xDSL Line Driver. Data Sheet. AD8016. …
RevisionC
Dateiformat / GrößePDF / 492 Kb
DokumentenspracheEnglisch

Low Power, High Output. Current xDSL Line Driver. Data Sheet. AD8016. FEATURES. PIN CONFIGURATIONS

Datasheet AD8016 Analog Devices, Revision: C

Modelllinie für dieses Datenblatt

Textversion des Dokuments

link to page 17 link to page 11 link to page 12

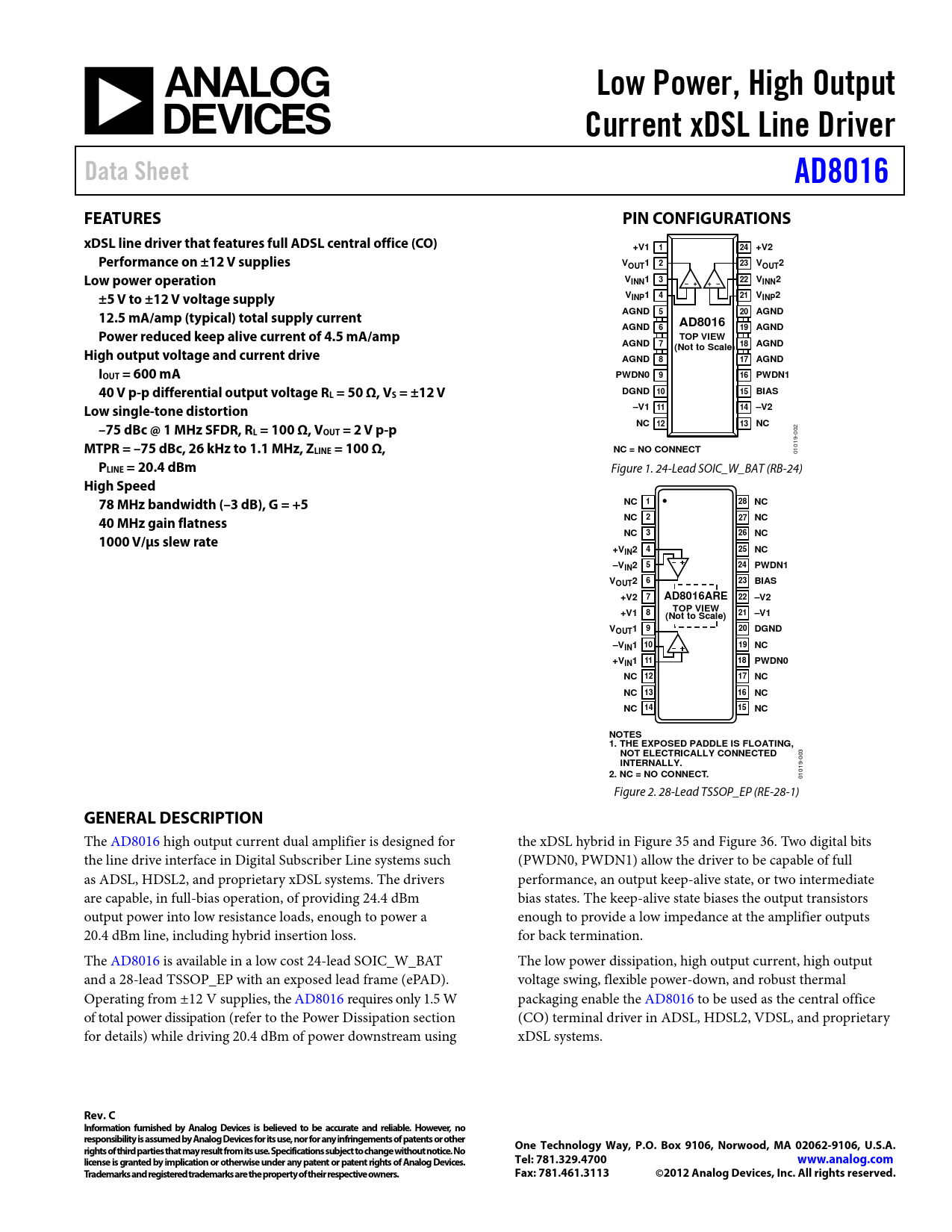

Low Power, High Output Current xDSL Line Driver Data Sheet AD8016 FEATURES PIN CONFIGURATIONS xDSL line driver that features full ADSL central office (CO) +V1 1 24 +V2 Performance on ±12 V supplies V 2 23 OUT1 VOUT2 Low power operation V 3 22 INN1 V + + – INN2 ±5 V to ±12 V voltage supply V 4 21 INP1 VINP2 AGND 5 20 AGND 12.5 mA/amp (typical) total supply current AD8016 AGND 6 19 AGND Power reduced keep alive current of 4.5 mA/amp TOP VIEW AGND 7 (Not to Scale) 18 AGND High output voltage and current drive AGND 8 17 AGND IOUT = 600 mA PWDN0 9 16 PWDN1 40 V p-p differential output voltage R DGND 10 15 BIAS L = 50 Ω, VS = ±12 V Low single-tone distortion –V1 11 14 –V2 NC 12 13 NC –75 dBc @ 1 MHz SFDR, R
2
L = 100 Ω, VOUT = 2 V p-p
00 9-
MTPR = –75 dBc, 26 kHz to 1.1 MHz, ZLINE = 100 Ω, NC = NO CONNECT
101 0
PLINE = 20.4 dBm
Figure 1. 24-Lead SOIC_W_BAT (RB-24)
High Speed 78 MHz bandwidth (–3 dB), G = +5 NC 1 28 NC NC 2 NC 40 MHz gain flatness 27 NC 3 26 NC 1000 V/μs slew rate +V 4 25 NC IN2 –V 5 24 PWDN1 IN2 V 6 23 BIAS OUT2 +V2 7 AD8016ARE 22 –V2 TOP VIEW +V1 8 21 –V1 (Not to Scale) V 9 20 DGND OUT1 –V 10 19 NC IN1 +V 11 18 PWDN0 IN1 NC 12 17 NC NC 13 16 NC NC 14 15 NC NOTES 1. THE EXPOSED PADDLE IS FLOATING, NOT ELECTRICALLY CONNECTED INTERNALLY.
-003
2. NC = NO CONNECT.
1019 0 Figure 2. 28-Lead TSSOP_EP (RE-28-1)
GENERAL DESCRIPTION
The AD8016 high output current dual amplifier is designed for the xDSL hybrid in Figure 35 and Figure 36. Two digital bits the line drive interface in Digital Subscriber Line systems such (PWDN0, PWDN1) allow the driver to be capable of full as ADSL, HDSL2, and proprietary xDSL systems. The drivers performance, an output keep-alive state, or two intermediate are capable, in full-bias operation, of providing 24.4 dBm bias states. The keep-alive state biases the output transistors output power into low resistance loads, enough to power a enough to provide a low impedance at the amplifier outputs 20.4 dBm line, including hybrid insertion loss. for back termination. The AD8016 is available in a low cost 24-lead SOIC_W_BAT The low power dissipation, high output current, high output and a 28-lead TSSOP_EP with an exposed lead frame (ePAD). voltage swing, flexible power-down, and robust thermal Operating from ±12 V supplies, the AD8016 requires only 1.5 W packaging enable the AD8016 to be used as the central office of total power dissipation (refer to the Power Dissipation section (CO) terminal driver in ADSL, HDSL2, VDSL, and proprietary for details) while driving 20.4 dBm of power downstream using xDSL systems.
Rev. C Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 www.analog.com Trademarks and registered trademarks are the property of their respective owners. Fax: 781.461.3113 ©2012 Analog Devices, Inc. All rights reserved.
Document Outline Features Pin Configurations General Description Revision History Specifications Logic Inputs (CMOS Compatible Logic) Absolute Maximum Ratings Maximum Power Dissipation ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Test Circuts Theory of Operation Power Supply and Decoupling Feedback Resistor Selection Bias Pin and PWDN Features Thermal Shutdown Applications Information Multitone Power Ratio (MTPR) Generating DMT Power Dissipation Thermal Enhancements and PCB Layout Thermal Testing Air Flow Test Conditions DUT Power Thermal Resistance PCB Dimensions of a Differential Driver Circuit Experimental Results Outline Dimensions Ordering Guide
