Datasheet ADA4311-1 (Analog Devices) - 3
| Hersteller | Analog Devices |
| Beschreibung | Low Cost, Dual, High Current Output Line Driver with Shutdown |
| Seiten / Seite | 16 / 3 — ADA4311-1. SPECIFICATIONS. Table 1. Parameter Test. Conditions/Comments. … |
| Dateiformat / Größe | PDF / 282 Kb |
| Dokumentensprache | Englisch |

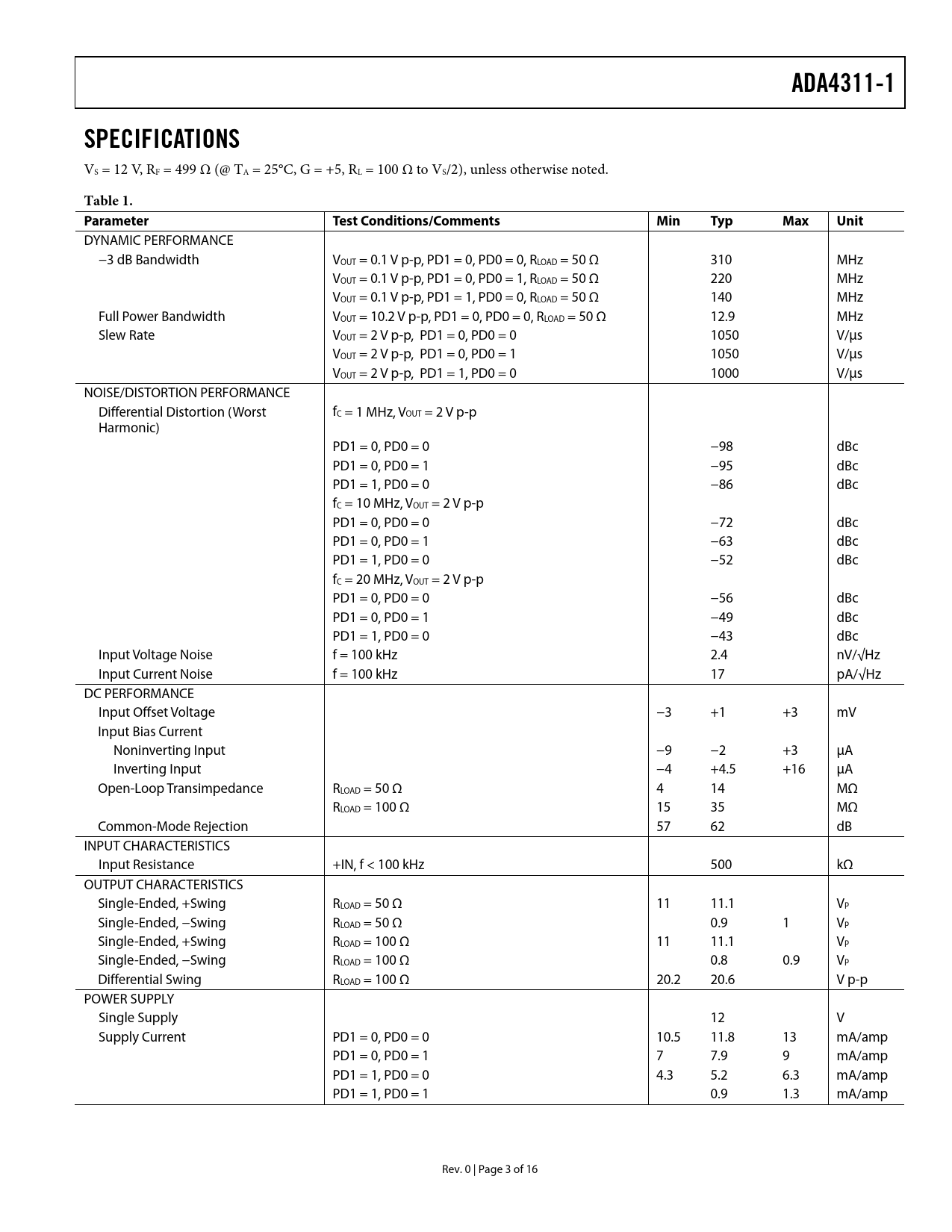

ADA4311-1. SPECIFICATIONS. Table 1. Parameter Test. Conditions/Comments. Min. Typ. Max. Unit
Modelllinie für dieses Datenblatt
Textversion des Dokuments
ADA4311-1 SPECIFICATIONS
VS = 12 V, RF = 499 Ω (@ TA = 25°C, G = +5, RL = 100 Ω to VS/2), unless otherwise noted.
Table 1. Parameter Test Conditions/Comments Min Typ Max Unit
DYNAMIC PERFORMANCE −3 dB Bandwidth VOUT = 0.1 V p-p, PD1 = 0, PD0 = 0, RLOAD = 50 Ω 310 MHz VOUT = 0.1 V p-p, PD1 = 0, PD0 = 1, RLOAD = 50 Ω 220 MHz VOUT = 0.1 V p-p, PD1 = 1, PD0 = 0, RLOAD = 50 Ω 140 MHz Full Power Bandwidth VOUT = 10.2 V p-p, PD1 = 0, PD0 = 0, RLOAD = 50 Ω 12.9 MHz Slew Rate VOUT = 2 V p-p, PD1 = 0, PD0 = 0 1050 V/μs VOUT = 2 V p-p, PD1 = 0, PD0 = 1 1050 V/μs VOUT = 2 V p-p, PD1 = 1, PD0 = 0 1000 V/μs NOISE/DISTORTION PERFORMANCE Differential Distortion (Worst fC = 1 MHz, VOUT = 2 V p-p Harmonic) PD1 = 0, PD0 = 0 −98 dBc PD1 = 0, PD0 = 1 −95 dBc PD1 = 1, PD0 = 0 −86 dBc fC = 10 MHz, VOUT = 2 V p-p PD1 = 0, PD0 = 0 −72 dBc PD1 = 0, PD0 = 1 −63 dBc PD1 = 1, PD0 = 0 −52 dBc fC = 20 MHz, VOUT = 2 V p-p PD1 = 0, PD0 = 0 −56 dBc PD1 = 0, PD0 = 1 −49 dBc PD1 = 1, PD0 = 0 −43 dBc Input Voltage Noise f = 100 kHz 2.4 nV/√Hz Input Current Noise f = 100 kHz 17 pA/√Hz DC PERFORMANCE Input Offset Voltage −3 +1 +3 mV Input Bias Current Noninverting Input −9 −2 +3 μA Inverting Input −4 +4.5 +16 μA Open-Loop Transimpedance RLOAD = 50 Ω 4 14 MΩ RLOAD = 100 Ω 15 35 MΩ Common-Mode Rejection 57 62 dB INPUT CHARACTERISTICS Input Resistance +IN, f < 100 kHz 500 kΩ OUTPUT CHARACTERISTICS Single-Ended, +Swing RLOAD = 50 Ω 11 11.1 VP Single-Ended, −Swing RLOAD = 50 Ω 0.9 1 VP Single-Ended, +Swing RLOAD = 100 Ω 11 11.1 VP Single-Ended, −Swing RLOAD = 100 Ω 0.8 0.9 VP Differential Swing RLOAD = 100 Ω 20.2 20.6 V p-p POWER SUPPLY Single Supply 12 V Supply Current PD1 = 0, PD0 = 0 10.5 11.8 13 mA/amp PD1 = 0, PD0 = 1 7 7.9 9 mA/amp PD1 = 1, PD0 = 0 4.3 5.2 6.3 mA/amp PD1 = 1, PD0 = 1 0.9 1.3 mA/amp Rev. 0 | Page 3 of 16 Document Outline FEATURES APPLICATIONS PIN CONFIGURATION TYPICAL APPLICATION GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE Maximum Power Dissipation ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATION INFORMATION FEEDBACK RESISTOR SELECTION POWER CONTROL MODES OF OPERATION EXPOSED THERMAL PAD CONNECTIONS POWERLINE APPLICATION BOARD LAYOUT POWER SUPPLY BYPASSING OUTLINE DIMENSIONS ORDERING GUIDE
