Datasheet VEMD4010X01 (Vishay)
| Hersteller | Vishay |
| Beschreibung | Silicon PIN Photodiode |
| Seiten / Seite | 7 / 1 — VEMD4010X01. Silicon PIN Photodiode. FEATURES. LINKS TO ADDITIONAL … |
| Dateiformat / Größe | PDF / 147 Kb |
| Dokumentensprache | Englisch |
VEMD4010X01. Silicon PIN Photodiode. FEATURES. LINKS TO ADDITIONAL RESOURCES. D 3. 3 D. APPLICATIONS. DESCRIPTION. PRODUCT SUMMARY
Modelllinie für dieses Datenblatt
Textversion des Dokuments

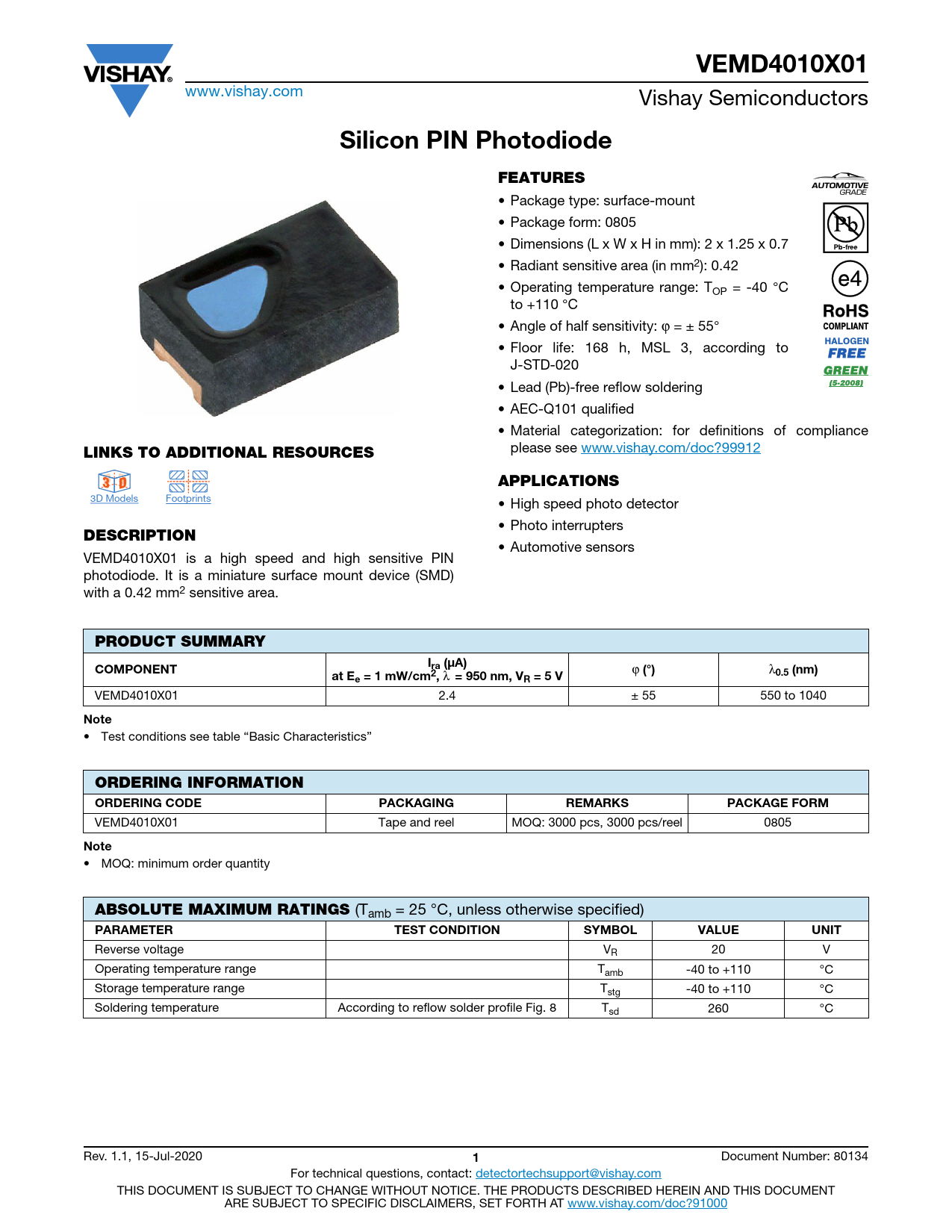

VEMD4010X01
www.vishay.com Vishay Semiconductors
Silicon PIN Photodiode FEATURES
• Package type: surface-mount • Package form: 0805 • Dimensions (L x W x H in mm): 2 x 1.25 x 0.7 • Radiant sensitive area (in mm2): 0.42 • Operating temperature range: TOP = -40 °C to +110 °C • Angle of half sensitivity: ϕ = ± 55° • Floor life: 168 h, MSL 3, according to J-STD-020 • Lead (Pb)-free reflow soldering • AEC-Q101 qualified • Material categorization: for definitions of compliance
LINKS TO ADDITIONAL RESOURCES
please see www.vishay.com/doc?99912
D 3 3 D APPLICATIONS
3D Models Footprints • High speed photo detector
DESCRIPTION
• Photo interrupters • Automotive sensors VEMD4010X01 is a high speed and high sensitive PIN photodiode. It is a miniature surface mount device (SMD) with a 0.42 mm2 sensitive area.
PRODUCT SUMMARY I COMPONENT ra (μA)
ϕ
(°)
λ
at E 0.5 (nm) e = 1 mW/cm2,
λ
= 950 nm, VR = 5 V
VEMD4010X01 2.4 ± 55 550 to 1040
Note
• Test conditions see table “Basic Characteristics”
ORDERING INFORMATION ORDERING CODE PACKAGING REMARKS PACKAGE FORM
VEMD4010X01 Tape and reel MOQ: 3000 pcs, 3000 pcs/reel 0805
Note
• MOQ: minimum order quantity
ABSOLUTE MAXIMUM RATINGS
(Tamb = 25 °C, unless otherwise specified)
PARAMETER TEST CONDITION SYMBOL VALUE UNIT
Reverse voltage VR 20 V Operating temperature range Tamb -40 to +110 °C Storage temperature range Tstg -40 to +110 °C Soldering temperature According to reflow solder profile Fig. 8 Tsd 260 °C Rev. 1.1, 15-Jul-2020
1
Document Number: 80134 For technical questions, contact: detectortechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
