| Beschreibung | High-Current, High-Performance DrMOS Power Module |
| Seiten / Seite | 18 / 9 — AOZ5312UQI. Logic Table andTiming Diagrams (Continued). Figure 2. PWM … |
| Dateiformat / Größe | PDF / 2.8 Mb |
| Dokumentensprache | Englisch |
AOZ5312UQI. Logic Table andTiming Diagrams (Continued). Figure 2. PWM Tri-State Hold Off and Exit Timing Diagram
Modelllinie für dieses Datenblatt
Textversion des Dokuments
AOZ5312UQI Logic Table andTiming Diagrams (Continued)
PWM VTRI tTSSHD tTSSHD tTSSHD tTSSHD GL tTSEXIT TTSEXIT tTSEXIT tTSEXIT VSWH

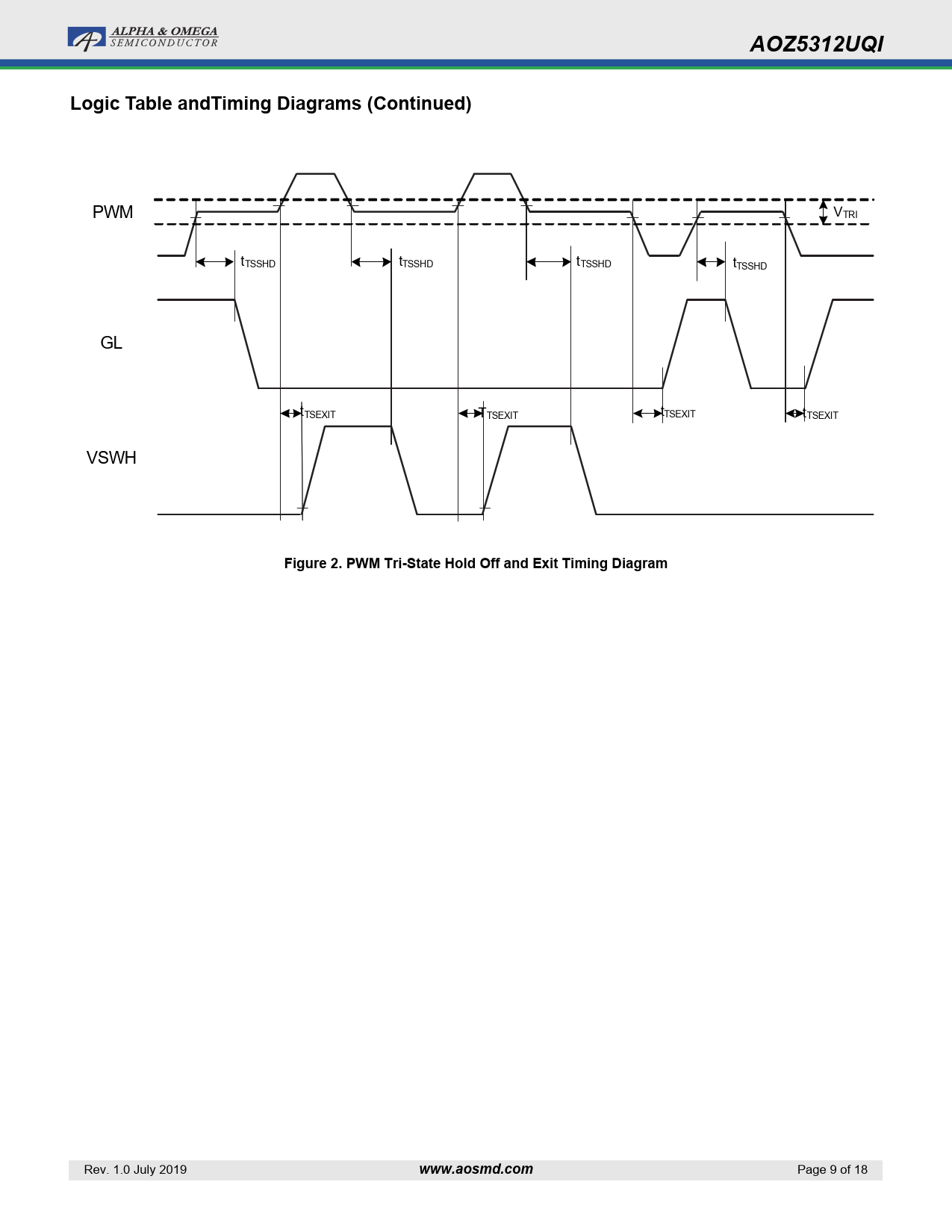

Figure 2. PWM Tri-State Hold Off and Exit Timing Diagram
