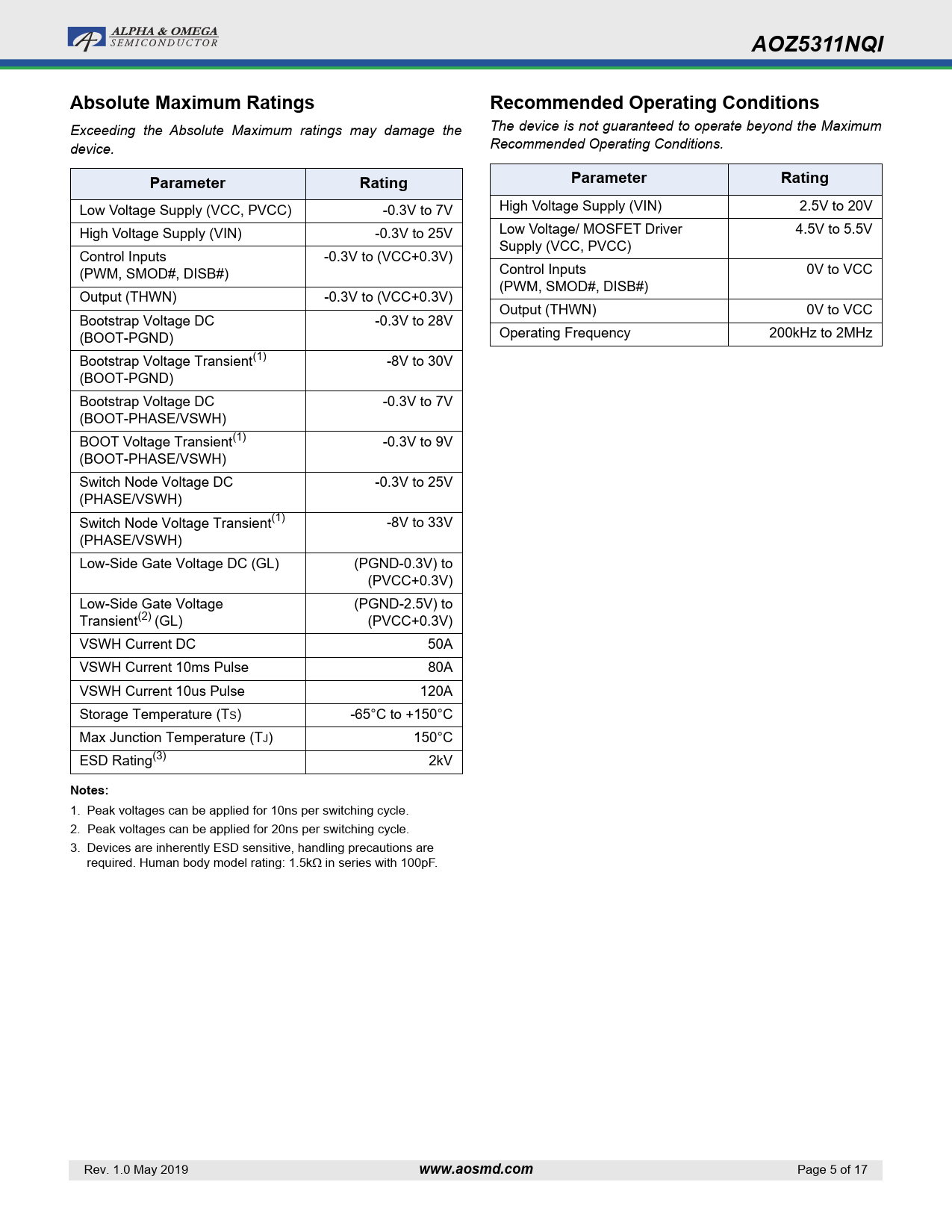

AOZ5311NQI Absolute Maximum Ratings Recommended Operating Conditions
Exceeding the Absolute Maximum ratings may damage the The device is not guaranteed to operate beyond the Maximum device. Recommended Operating Conditions.
Parameter Rating Parameter Rating
Low Voltage Supply (VCC, PVCC) -0.3V to 7V High Voltage Supply (VIN) 2.5V to 20V High Voltage Supply (VIN) -0.3V to 25V Low Voltage/ MOSFET Driver 4.5V to 5.5V Supply (VCC, PVCC) Control Inputs -0.3V to (VCC+0.3V) (PWM, SMOD#, DISB#) Control Inputs 0V to VCC (PWM, SMOD#, DISB#) Output (THWN) -0.3V to (VCC+0.3V) Output (THWN) 0V to VCC Bootstrap Voltage DC -0.3V to 28V (BOOT-PGND) Operating Frequency 200kHz to 2MHz Bootstrap Voltage Transient(1) -8V to 30V (BOOT-PGND) Bootstrap Voltage DC -0.3V to 7V (BOOT-PHASE/VSWH) BOOT Voltage Transient(1) -0.3V to 9V (BOOT-PHASE/VSWH) Switch Node Voltage DC -0.3V to 25V (PHASE/VSWH) Switch Node Voltage Transient(1) -8V to 33V (PHASE/VSWH) Low-Side Gate Voltage DC (GL) (PGND-0.3V) to (PVCC+0.3V) Low-Side Gate Voltage (PGND-2.5V) to Transient(2) (GL) (PVCC+0.3V) VSWH Current DC 50A VSWH Current 10ms Pulse 80A VSWH Current 10us Pulse 120A Storage Temperature (TS) -65°C to +150°C Max Junction Temperature (TJ) 150°C ESD Rating(3) 2kV
Notes:
1. Peak voltages can be applied for 10ns per switching cycle. 2. Peak voltages can be applied for 20ns per switching cycle. 3. Devices are inherently ESD sensitive, handling precautions are required. Human body model rating: 1.5k in series with 100pF. Rev. 1.0 May 2019
www.aosmd.com
Page 5 of 17
