Datasheet PA22 (Apex) - 4
| Hersteller | Apex |
| Beschreibung | High Voltage Power Operational Amplifiers |
| Seiten / Seite | 14 / 4 — PA22. SPECIFICATIONS. ABSOLUTE MAXIMUM RATINGS. Parameter. Symbol1. Min. … |
| Dateiformat / Größe | PDF / 3.1 Mb |
| Dokumentensprache | Englisch |

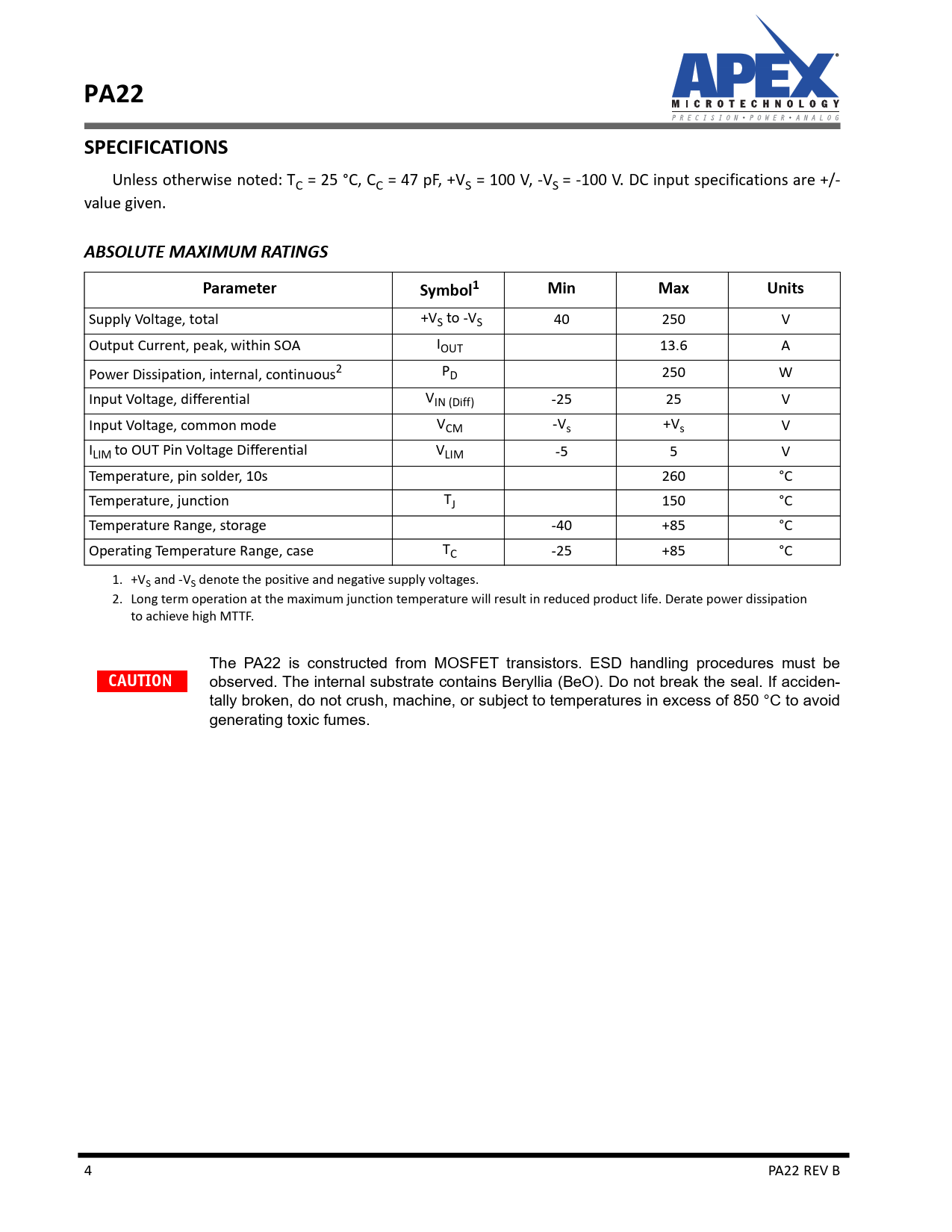

PA22. SPECIFICATIONS. ABSOLUTE MAXIMUM RATINGS. Parameter. Symbol1. Min. Max. Units. CAUTION
Modelllinie für dieses Datenblatt
Textversion des Dokuments
PA22 SPECIFICATIONS
Unless otherwise noted: TC = 25 °C, CC = 47 pF, +VS = 100 V, -VS = -100 V. DC input specifications are +/- value given.
ABSOLUTE MAXIMUM RATINGS Parameter Symbol1 Min Max Units
Supply Voltage, total +VS to -VS 40 250 V Output Current, peak, within SOA IOUT 13.6 A Power Dissipation, internal, continuous2 PD 250 W Input Voltage, differential VIN (Diff) -25 25 V Input Voltage, common mode VCM -Vs +Vs V ILIM to OUT Pin Voltage Differential VLIM -5 5 V Temperature, pin solder, 10s 260 °C Temperature, junction TJ 150 °C Temperature Range, storage -40 +85 °C Operating Temperature Range, case TC -25 +85 °C 1. +VS and -VS denote the positive and negative supply voltages. 2. Long term operation at the maximum junction temperature wil result in reduced product life. Derate power dissipation to achieve high MTTF. The PA22 is constructed from MOSFET transistors. ESD handling procedures must be
CAUTION
observed. The internal substrate contains Beryl ia (BeO). Do not break the seal. If acciden- tal y broken, do not crush, machine, or subject to temperatures in excess of 850 °C to avoid generating toxic fumes. 4 PA22 REV B Document Outline Features Applications Description Figure 1: Equivalent Schematic Typical Connection Figure 2: Typical Connection Pinout and Description Table Figure 3: External Connections Specifications Absolute Maximum Ratings Input Gain Output Power Supply Thermal Figure 14: Temp Sense vs Time General Safe operating area (SOA) Figure 15: Safe Operating Area (SOA) typical application Figure 16: Typical Application Schematic current limit overvoltage protection Figure 17: Overvoltage Protection power supply bypassing phase Compensation Temperature Sense Package Options Package Outline (Style LL)
