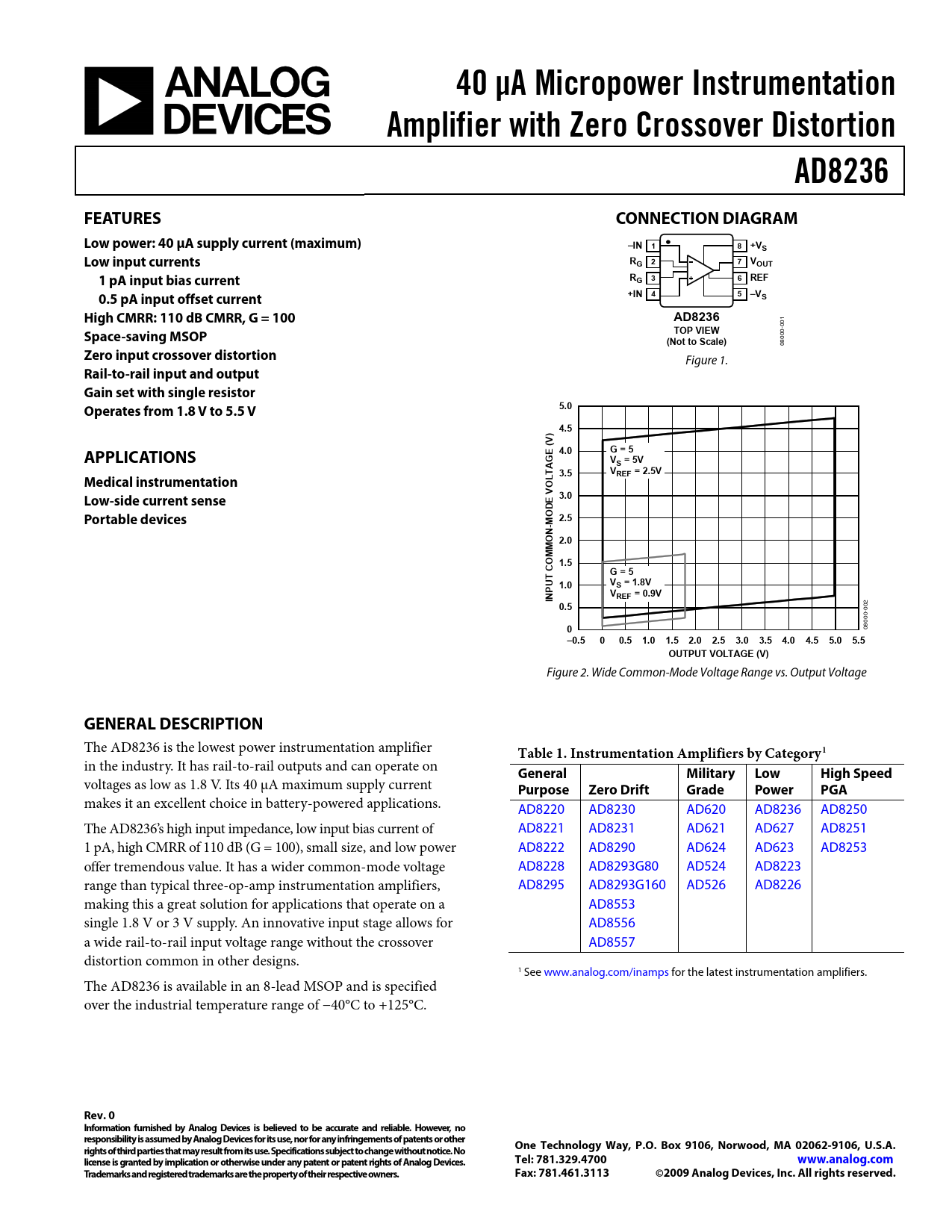

40 μA Micropower Instrumentation Amplifier with Zero Crossover Distortion AD8236 FEATURES CONNECTION DIAGRAM Low power: 40 μA supply current (maximum) –IN 1 8 +VS Low input currents RG 2 7 VOUT 1 pA input bias current RG 3 6 REF +IN 4 5 –V 0.5 pA input offset current S High CMRR: 110 dB CMRR, G = 100 AD8236
01 0
TOP VIEW
0-
Space-saving MSOP (Not to Scale)
00 08
Zero input crossover distortion
Figure 1.
Rail-to-rail input and output Gain set with single resistor Operates from 1.8 V to 5.5 V 5.0 4.5 ) (V E 4.0 G = 5 APPLICATIONS G V A S = 5V T 3.5 V L REF = 2.5V Medical instrumentation 3.0 Low-side current sense E VO D O Portable devices 2.5 -M N O 2.0 MM O 1.5 C T G = 5 1.0 V PU S = 1.8V V IN REF = 0.9V 0.5
02 0 0- 00
0
08
–0.5 0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5 5.0 5.5 OUTPUT VOLTAGE (V)
Figure 2. Wide Common-Mode Voltage Range vs. Output Voltage
GENERAL DESCRIPTION
The AD8236 is the lowest power instrumentation amplifier
Table 1. Instrumentation Amplifiers by Category1
in the industry. It has rail-to-rail outputs and can operate on
General Military Low High Speed
voltages as low as 1.8 V. Its 40 μA maximum supply current
Purpose Zero Drift Grade Power PGA
makes it an excellent choice in battery-powered applications. AD8220 AD8230 AD620 AD8236 AD8250 The AD8236’s high input impedance, low input bias current of AD8221 AD8231 AD621 AD627 AD8251 1 pA, high CMRR of 110 dB (G = 100), small size, and low power AD8222 AD8290 AD624 AD623 AD8253 offer tremendous value. It has a wider common-mode voltage AD8228 AD8293G80 AD524 AD8223 range than typical three-op-amp instrumentation amplifiers, AD8295 AD8293G160 AD526 AD8226 making this a great solution for applications that operate on a AD8553 single 1.8 V or 3 V supply. An innovative input stage allows for AD8556 a wide rail-to-rail input voltage range without the crossover AD8557 distortion common in other designs. 1 See www.analog.com/inamps for the latest instrumentation amplifiers. The AD8236 is available in an 8-lead MSOP and is specified over the industrial temperature range of −40°C to +125°C.
