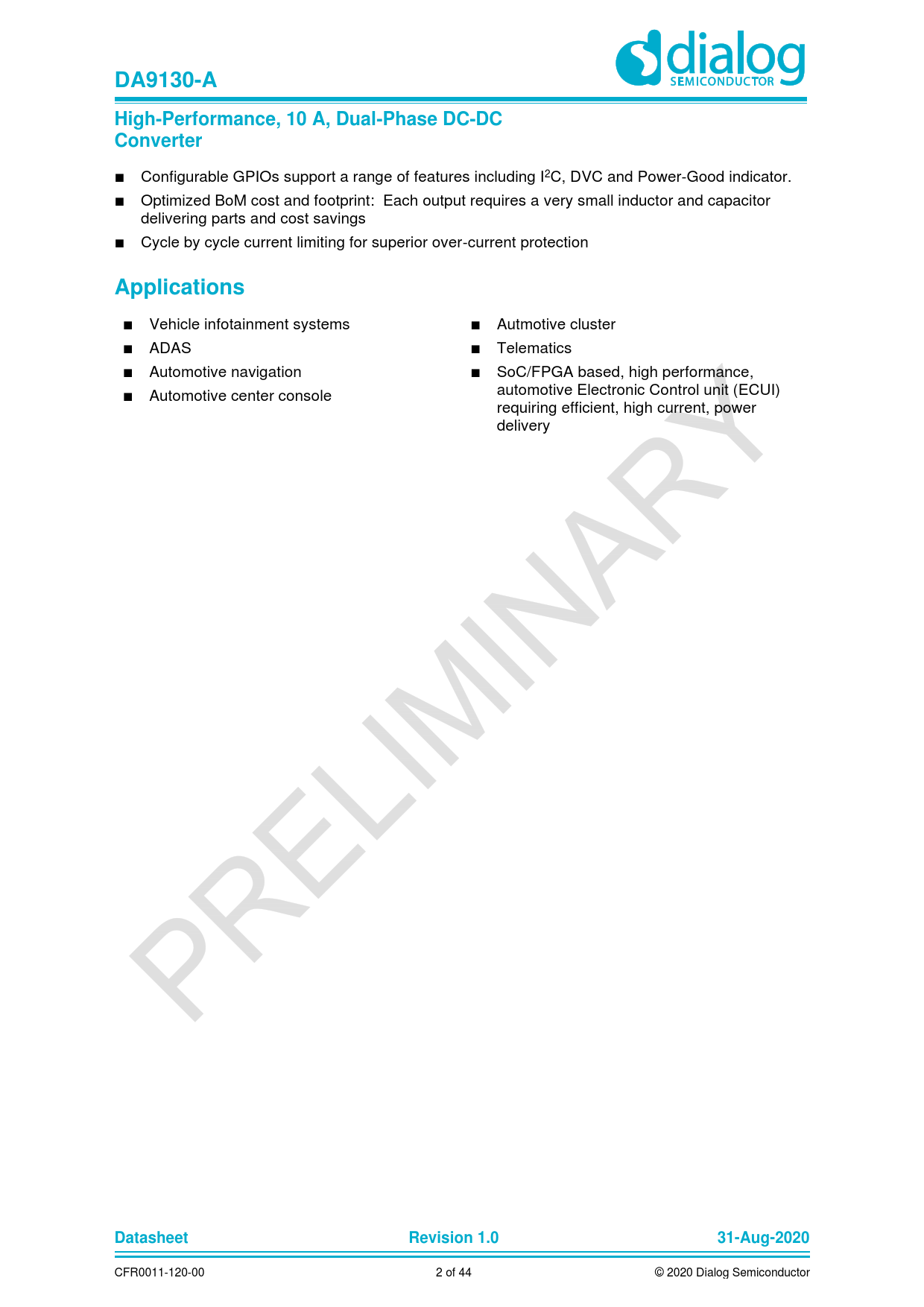

DA9130-A High-Performance, 10 A, Dual-Phase DC-DC Converter
■ Configurable GPIOs support a range of features including I2C, DVC and Power-Good indicator. ■ Optimized BoM cost and footprint: Each output requires a very small inductor and capacitor delivering parts and cost savings ■ Cycle by cycle current limiting for superior over-current protection
Applications
■ Vehicle infotainment systems ■ Autmotive cluster ■ ADAS ■ Telematics ■ Automotive navigation ■ SoC/FPGA based, high performance, ■ Automotive center console automotive Electronic Control unit (ECUI) requiring efficient, high current, power delivery
Datasheet Revision 1.0 31-Aug-2020
