AD632 Data Sheet OUTLINE DIMENSIONS 0.005 (0.13) MIN 0.080 (2.03) MAX 14 8 0.310 (7.87) 1 0.220 (5.59) 7 PIN 1 0.100 (2.54) BSC 0.320 (8.13) 0.765 (19.43) MAX 0.290 (7.37) 0.060 (1.52) 0.200 (5.08) MAX 0.015 (0.38) 0.150 (3.81) 0.200 (5.08) MIN 0.125 (3.18) SEATING 0.015 (0.38) 0.070 (1.78) PLANE 0.008 (0.20) 0.023 (0.58) 0.030 (0.76) 0.014 (0.36) CONTROLLING DIMENSIONS ARE IN INCHES; MILLIMETER DIMENSIONS (IN PARENTHESES) ARE ROUNDED-OFF INCH EQUIVALENTS FOR REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN.

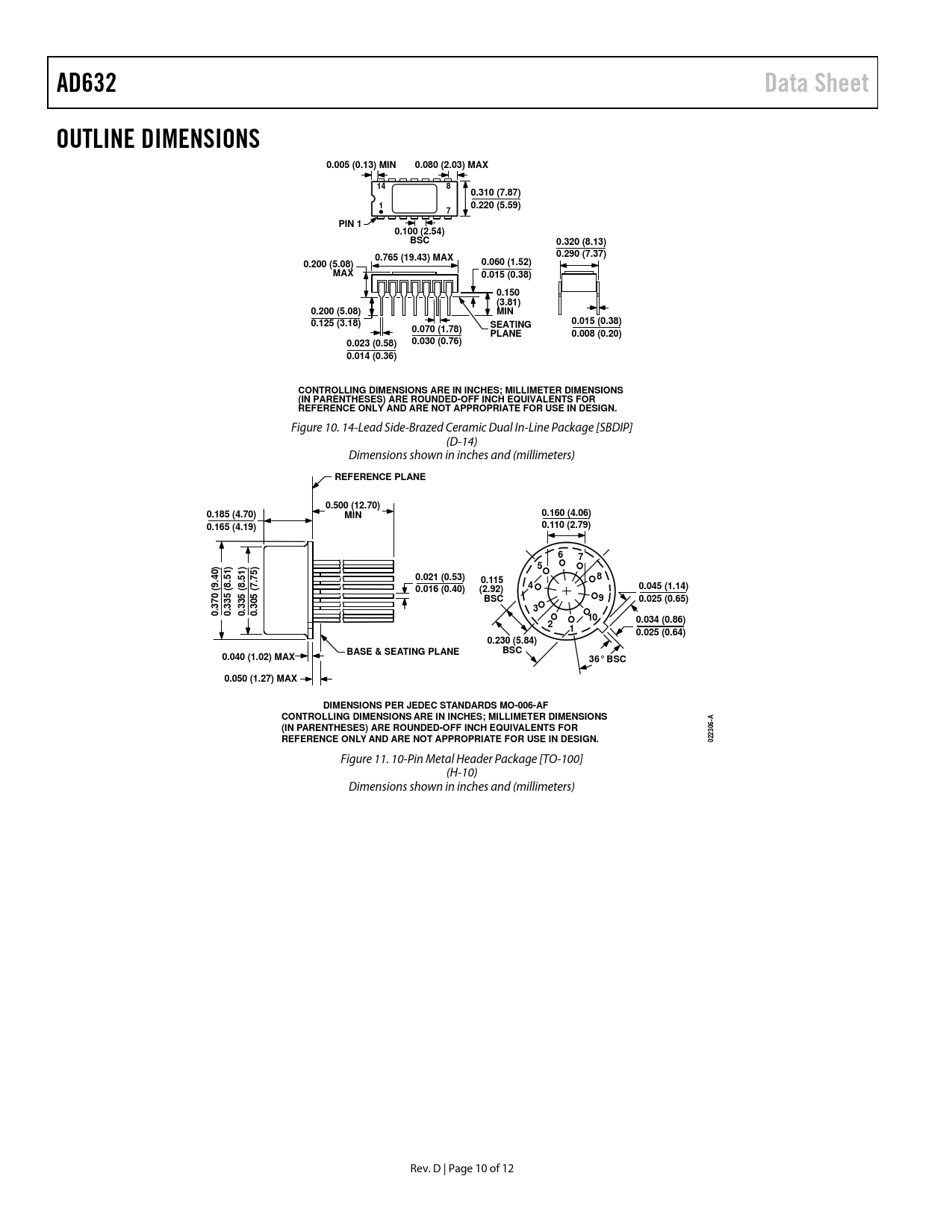

Figure 10. 14-Lead Side-Brazed Ceramic Dual In-Line Package [SBDIP] (D-14) Dimensions shown in inches and (millimeters)
REFERENCE PLANE 0.500 (12.70) 0.185 (4.70) MIN 0.160 (4.06) 0.165 (4.19) 0.110 (2.79) 6 7 5 40) 51) 51) 75) 0.021 (0.53) 8 9. 8. 0.115 8. 7. 0.016 (0.40) 4 0.045 (1.14) (2.92) BSC 9 0.025 (0.65) 370 ( 335 ( 335 ( 305 ( 0. 0. 3 0. 0. 10 0.034 (0.86) 2 1 0.025 (0.64) 0.230 (5.84) BASE & SEATING PLANE BSC 0.040 (1.02) MAX 36° BSC 0.050 (1.27) MAX DIMENSIONS PER JEDEC STANDARDS MO-006-AF CONTROLLING DIMENSIONS ARE IN INCHES; MILLIMETER DIMENSIONS A (IN PARENTHESES) ARE ROUNDED-OFF INCH EQUIVALENTS FOR REFERENCE ONLY AND ARE NOT APPROPRIATE FOR USE IN DESIGN. 022306-
Figure 11. 10-Pin Metal Header Package [TO-100] (H-10) Dimensions shown in inches and (millimeters) Rev. D | Page 10 of 12 Document Outline Features Applications Functional Block Diagram General Description Product Highlights Revision History Specifications Absolute Maximum Ratings Thermal Resistance Pin Configurations and Function Descriptions Typical Performance Characteristics Operation As a Multiplier Operation As a Divider Outline Dimensions Ordering Guide
