Datasheet RH117 (Analog Devices) - 2
| Hersteller | Analog Devices |
| Beschreibung | Positive Adjustable Regulator |
| Seiten / Seite | 4 / 2 — TABLE 1: ELECTRICAL CHARACTERISTICS (Preirradiation) (Note 1). TA = 25°C. … |
| Revision | D |
| Dateiformat / Größe | PDF / 144 Kb |
| Dokumentensprache | Englisch |

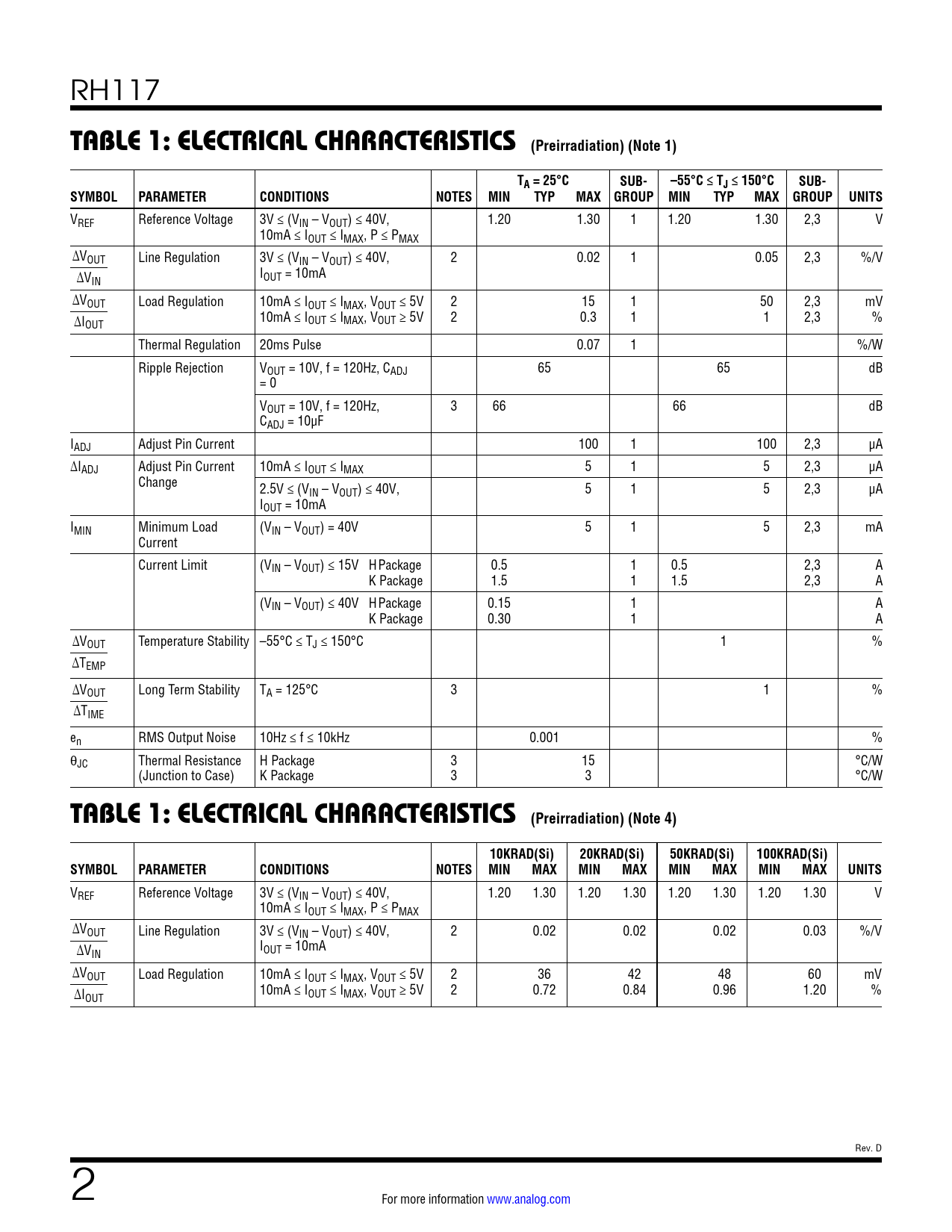

TABLE 1: ELECTRICAL CHARACTERISTICS (Preirradiation) (Note 1). TA = 25°C. SUB-. –55°C ≤ TJ ≤ 150°C. SYMBOL. PARAMETER. CONDITIONS
Modelllinie für dieses Datenblatt
Textversion des Dokuments
RH117
TABLE 1: ELECTRICAL CHARACTERISTICS (Preirradiation) (Note 1) TA = 25°C SUB- –55°C ≤ TJ ≤ 150°C SUB- SYMBOL PARAMETER CONDITIONS NOTES MIN TYP MAX GROUP MIN TYP MAX GROUP UNITS
VREF Reference Voltage 3V ≤ (VIN – VOUT) ≤ 40V, 1.20 1.30 1 1.20 1.30 2,3 V 10mA ≤ IOUT ≤ IMAX, P ≤ PMAX ∆VOUT Line Regulation 3V ≤ (VIN – VOUT) ≤ 40V, 2 0.02 1 0.05 2,3 %/V ∆V I IN OUT = 10mA ∆VOUT Load Regulation 10mA ≤ IOUT ≤ IMAX, VOUT ≤ 5V 2 15 1 50 2,3 mV ∆I 10mA ≤ I 2 0.3 1 1 2,3 % OUT OUT ≤ IMAX, VOUT ≥ 5V Thermal Regulation 20ms Pulse 0.07 1 %/W Ripple Rejection VOUT = 10V, f = 120Hz, CADJ 65 65 dB = 0 VOUT = 10V, f = 120Hz, 3 66 66 dB CADJ = 10µF IADJ Adjust Pin Current 100 1 100 2,3 µA ∆IADJ Adjust Pin Current 10mA ≤ IOUT ≤ IMAX 5 1 5 2,3 µA Change 2.5V ≤ (VIN – VOUT) ≤ 40V, 5 1 5 2,3 µA IOUT = 10mA IMIN Minimum Load (VIN – VOUT) = 40V 5 1 5 2,3 mA Current Current Limit (VIN – VOUT) ≤ 15V H Package 0.5 1 0.5 2,3 A K Package 1.5 1 1.5 2,3 A (VIN – VOUT) ≤ 40V H Package 0.15 1 A K Package 0.30 1 A ∆VOUT Temperature Stability –55°C ≤ TJ ≤ 150°C 1 % ∆TEMP ∆VOUT Long Term Stability TA = 125°C 3 1 % ∆TIME en RMS Output Noise 10Hz ≤ f ≤ 10kHz 0.001 % θJC Thermal Resistance H Package 3 15 °C/W (Junction to Case) K Package 3 3 °C/W
TABLE 1: ELECTRICAL CHARACTERISTICS (Preirradiation) (Note 4) 10KRAD(Si) 20KRAD(Si) 50KRAD(Si) 100KRAD(Si) SYMBOL PARAMETER CONDITIONS NOTES MIN MAX MIN MAX MIN MAX MIN MAX UNITS
VREF Reference Voltage 3V ≤ (VIN – VOUT) ≤ 40V, 1.20 1.30 1.20 1.30 1.20 1.30 1.20 1.30 V 10mA ≤ IOUT ≤ IMAX, P ≤ PMAX ∆VOUT Line Regulation 3V ≤ (VIN – VOUT) ≤ 40V, 2 0.02 0.02 0.02 0.03 %/V ∆V I IN OUT = 10mA ∆VOUT Load Regulation 10mA ≤ IOUT ≤ IMAX, VOUT ≤ 5V 2 36 42 48 60 mV ∆I 10mA ≤ I 2 0.72 0.84 0.96 1.20 % OUT OUT ≤ IMAX, VOUT ≥ 5V Rev. D 2 For more information www.analog.com Document Outline Description Burn-In Circuit Absolute Maximum Ratings Package/Order information Table 1: Electrical Characteristics Total Dose Bias Circuit Table 1: Electrical characteristics Typical Performance Characteristics Revision History
