Datasheet ADP124, ADP125 (Analog Devices) - 10
| Hersteller | Analog Devices |
| Beschreibung | 5.5 V Input, 500 mA, Low Quiescent Current, CMOS Linear Regulators |
| Seiten / Seite | 20 / 10 — ADP124/ADP125. Data Sheet. IOUT. 1mA TO 500mA LOAD STEP. 4V TO 4.5V … |
| Revision | D |
| Dateiformat / Größe | PDF / 1.2 Mb |
| Dokumentensprache | Englisch |

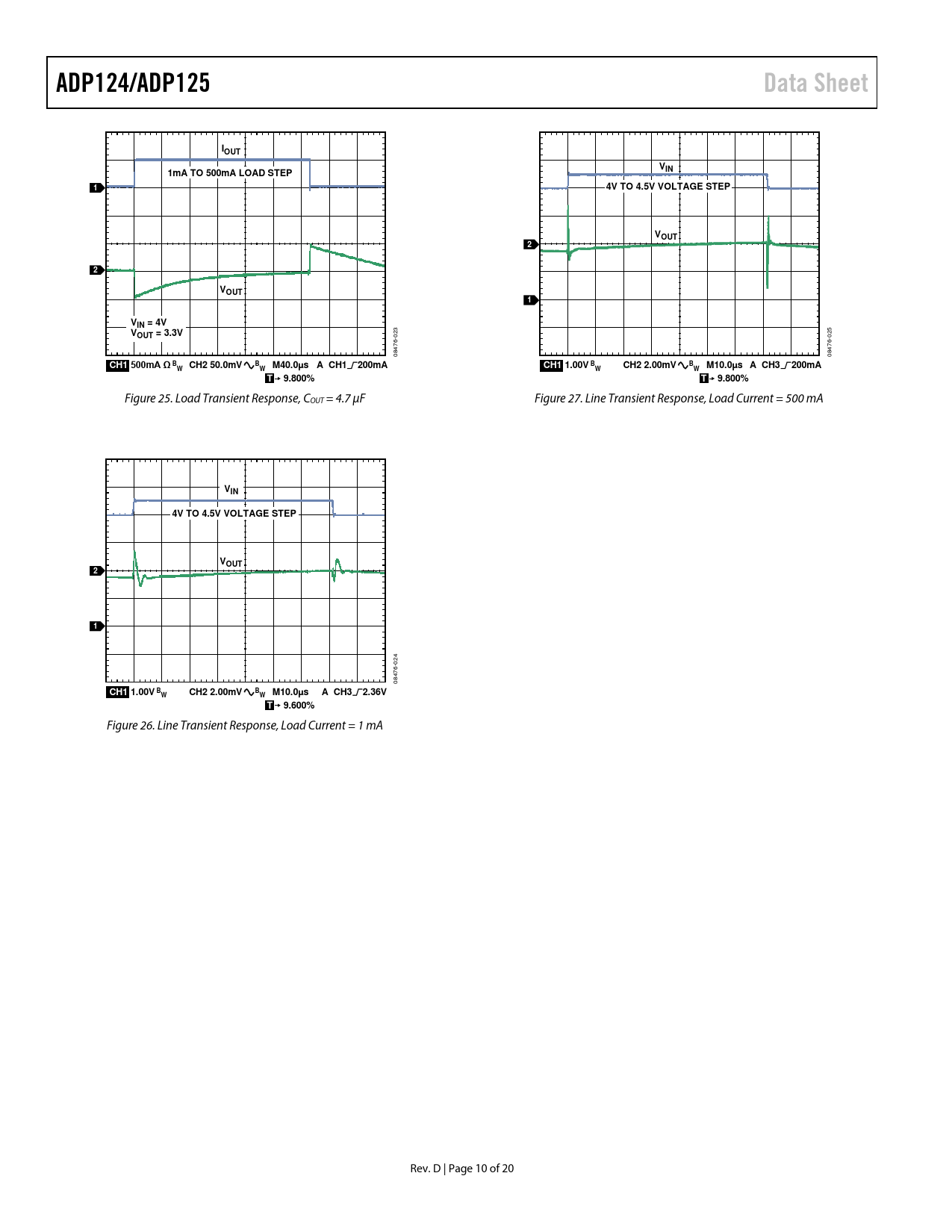

ADP124/ADP125. Data Sheet. IOUT. 1mA TO 500mA LOAD STEP. 4V TO 4.5V VOLTAGE STEP. VOUT. VIN = 4V VOUT = 3.3V. CH1 500mA Ω B. CH2 50.0mV
Modelllinie für dieses Datenblatt
Textversion des Dokuments
ADP124/ADP125 Data Sheet IOUT V 1mA TO 500mA LOAD STEP IN 1 4V TO 4.5V VOLTAGE STEP VOUT 2 2 VOUT 1 VIN = 4V VOUT = 3.3V
023 025 08476- 08476-
CH1 500mA Ω B CH2 50.0mV B M40.0µs A CH1 200mA CH1 1.00V B CH2 2.00mV B M10.0µs A CH3 200mA W W W W T 9.800% T 9.800%
Figure 25. Load Transient Response, COUT = 4.7 μF Figure 27. Line Transient Response, Load Current = 500 mA
