Datasheet ADP160, ADP161, ADP162, ADP163 (Analog Devices) - 7
| Hersteller | Analog Devices |
| Beschreibung | Ultralow Quiescent Current, 150 mA, CMOS Linear Regulators |
| Seiten / Seite | 24 / 7 — Data Sheet. ADP160/ADP161/ADP162/ADP163. VIN. VOUT. ADP160/. ADP162. GND. … |
| Revision | H |
| Dateiformat / Größe | PDF / 605 Kb |
| Dokumentensprache | Englisch |
Data Sheet. ADP160/ADP161/ADP162/ADP163. VIN. VOUT. ADP160/. ADP162. GND. TOP VIEW. (Not to Scale)
Modelllinie für dieses Datenblatt
- ADP160ACBZ-1.2-R7 ADP160ACBZ-1.5-R7 ADP160ACBZ-1.8-R7 ADP160ACBZ-2.1-R7 ADP160ACBZ-2.3-R7 ADP160ACBZ-2.5-R7 ADP160ACBZ-2.7-R7 ADP160ACBZ-2.75-R7 ADP160ACBZ-2.8-R7 ADP160ACBZ-2.85-R7 ADP160ACBZ-3.0-R7 ADP160ACBZ-3.3-R7 ADP160ACBZ-4.2-R7 ADP160AUJZ-1.2-R7 ADP160AUJZ-1.5-R7 ADP160AUJZ-1.8-R7 ADP160AUJZ-2.3-R7 ADP160AUJZ-2.5-R7 ADP160AUJZ-2.7-R7 ADP160AUJZ-2.8-R7 ADP160AUJZ-3.0-R7 ADP160AUJZ-3.3-R7 ADP160AUJZ-4.2-R7
- ADP162ACBZ-1.2-R7 ADP162ACBZ-1.8-R7 ADP162ACBZ-2.1-R7 ADP162ACBZ-2.3-R7 ADP162ACBZ-2.8-R7 ADP162ACBZ-3.0-R7 ADP162ACBZ-3.2-R7 ADP162ACBZ-4.2-R7 ADP162AUJZ-1.5-R7 ADP162AUJZ-1.8-R7 ADP162AUJZ-2.3-R7 ADP162AUJZ-2.5-R7 ADP162AUJZ-2.7-R7 ADP162AUJZ-2.8-R7 ADP162AUJZ-3.0-R7 ADP162AUJZ-3.1-R7 ADP162AUJZ-3.3-R7 ADP162AUJZ-4.2-R7
Textversion des Dokuments
Data Sheet ADP160/ADP161/ADP162/ADP163 1 2 A VIN VOUT ADP160/ ADP162 B EN GND
006
TOP VIEW (Not to Scale)

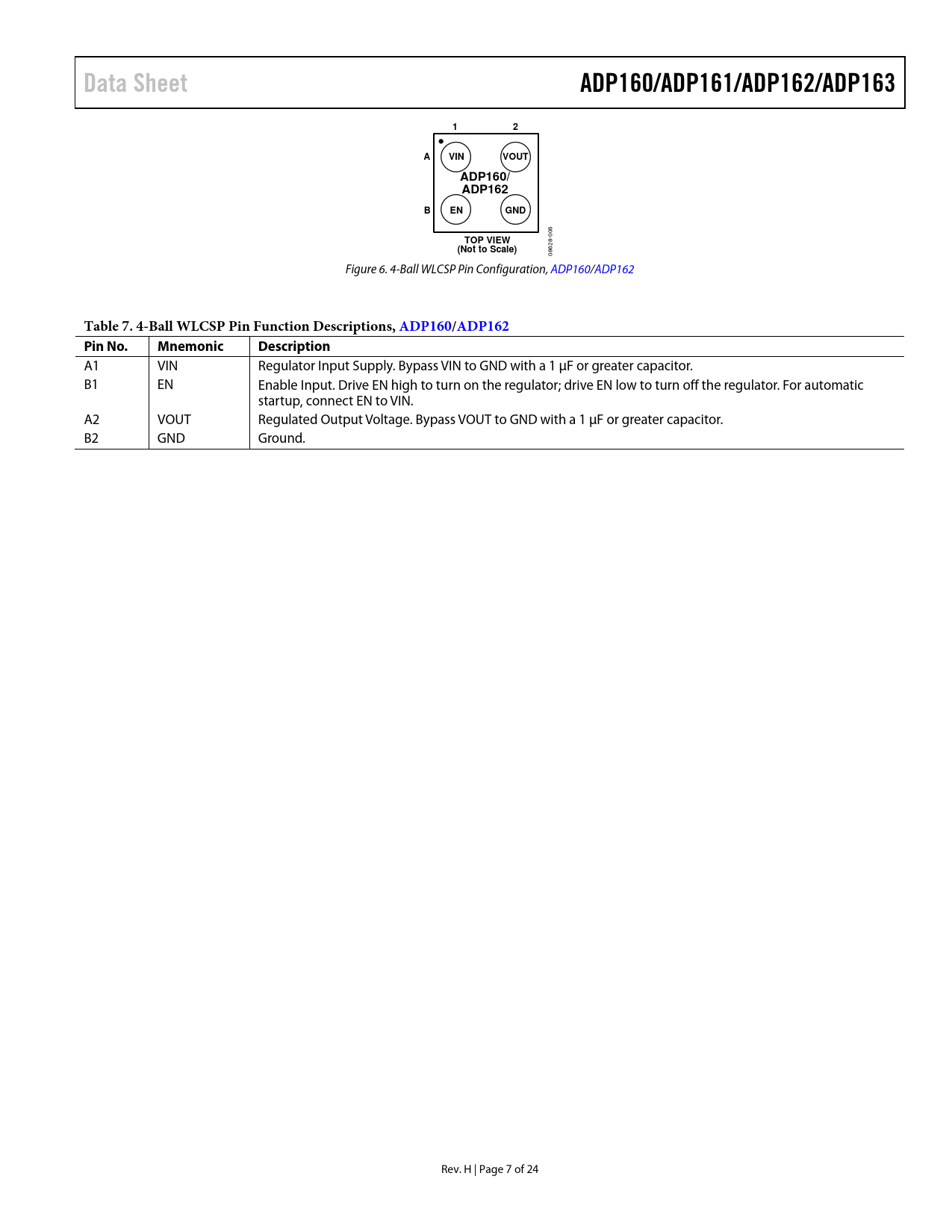

08628- Figure 6. 4-Ball WLCSP Pin Configuration, ADP160/ADP162
Table 7. 4-Ball WLCSP Pin Function Descriptions, ADP160/ ADP162 Pin No. Mnemonic Description
A1 VIN Regulator Input Supply. Bypass VIN to GND with a 1 µF or greater capacitor. B1 EN Enable Input. Drive EN high to turn on the regulator; drive EN low to turn off the regulator. For automatic startup, connect EN to VIN. A2 VOUT Regulated Output Voltage. Bypass VOUT to GND with a 1 µF or greater capacitor. B2 GND Ground. Rev. H | Page 7 of 24 Document Outline Features Applications Typical Application Circuits General Description Table of Contents Revision History Specifications Input and Output Capacitor, Recommended Specifications Absolute Maximum Ratings Thermal Data Thermal Resistance ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics Theory of Operation Applications Information Capacitor Selection Output Capacitor Input Bypass Capacitor Input and Output Capacitor Properties Enable Feature Current Limit and Thermal Overload Protection Thermal Considerations PCB Layout Considerations Light Sensitivity of WLCSPs Outline Dimensions Ordering Guide
