Datasheet ADM7172-KGD (Analog Devices) - 5
| Hersteller | Analog Devices |
| Beschreibung | 6.5 V, 2 A, Ultralow Noise, High PSRR, Fast Transient Response CMOS LDO |
| Seiten / Seite | 7 / 5 — Known Good Die. ADM7172-KGD. ABSOLUTE MAXIMUM RATINGS Table 3. ESD … |
| Revision | A |
| Dateiformat / Größe | PDF / 157 Kb |
| Dokumentensprache | Englisch |
Known Good Die. ADM7172-KGD. ABSOLUTE MAXIMUM RATINGS Table 3. ESD CAUTION. Parameter. Rating
Modelllinie für dieses Datenblatt
Textversion des Dokuments

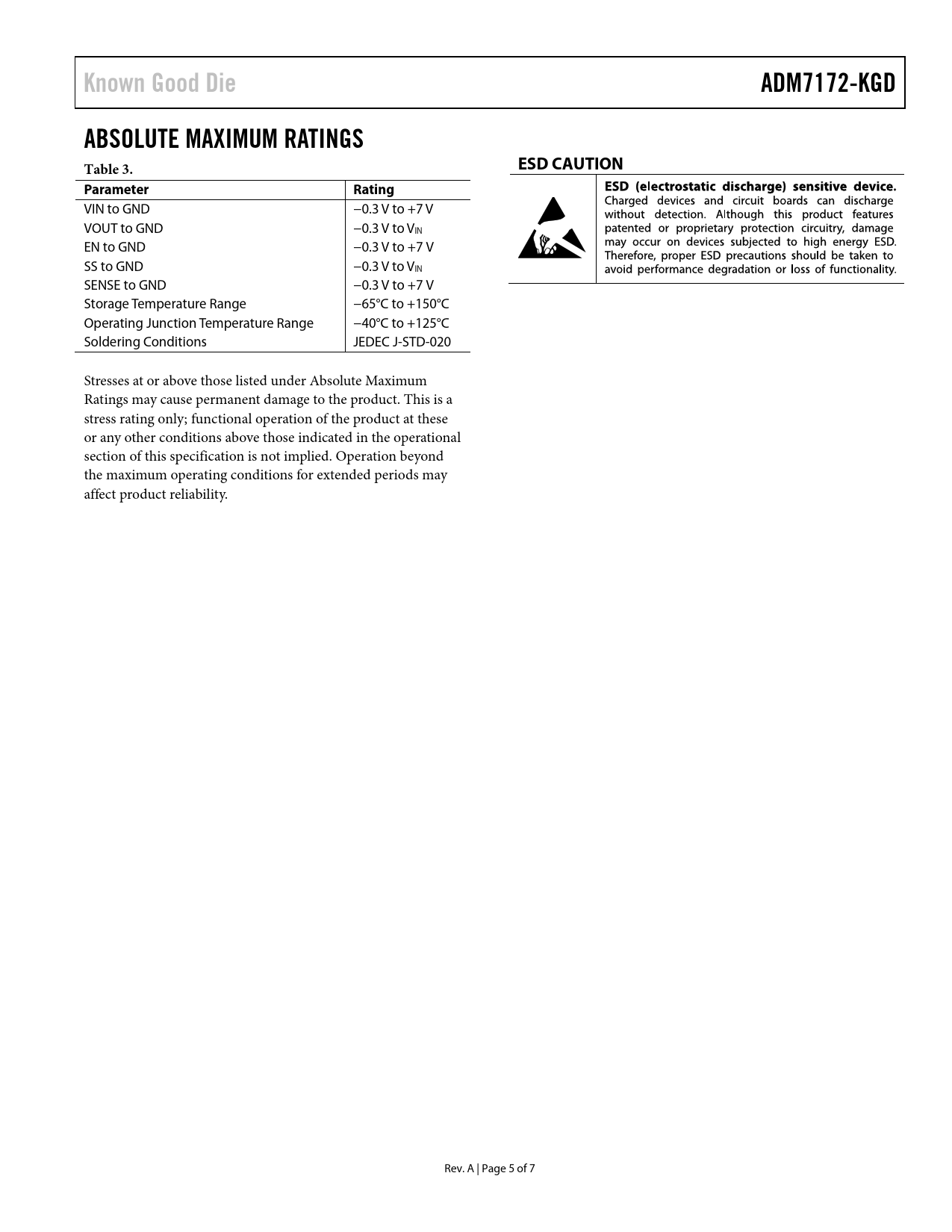

Known Good Die ADM7172-KGD ABSOLUTE MAXIMUM RATINGS Table 3. ESD CAUTION Parameter Rating
VIN to GND −0.3 V to +7 V VOUT to GND −0.3 V to VIN EN to GND −0.3 V to +7 V SS to GND −0.3 V to VIN SENSE to GND −0.3 V to +7 V Storage Temperature Range −65°C to +150°C Operating Junction Temperature Range −40°C to +125°C Soldering Conditions JEDEC J-STD-020 Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. A | Page 5 of 7 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS INPUT AND OUTPUT CAPACITOR, RECOMMENDED SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
