Datasheet ADCMP604, ADCMP605 (Analog Devices) - 6
| Hersteller | Analog Devices |
| Beschreibung | Rail-to-Rail, Very Fast, 2.5 V to 5.5 V, Single-Supply LVDS Comparators |
| Seiten / Seite | 14 / 6 — ADCMP604/ADCMP605. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. THERMAL … |
| Revision | C |
| Dateiformat / Größe | PDF / 357 Kb |
| Dokumentensprache | Englisch |
ADCMP604/ADCMP605. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 3. THERMAL RESISTANCE. Parameter. Rating. Table 4. Thermal Resistance
Modelllinie für dieses Datenblatt
Textversion des Dokuments

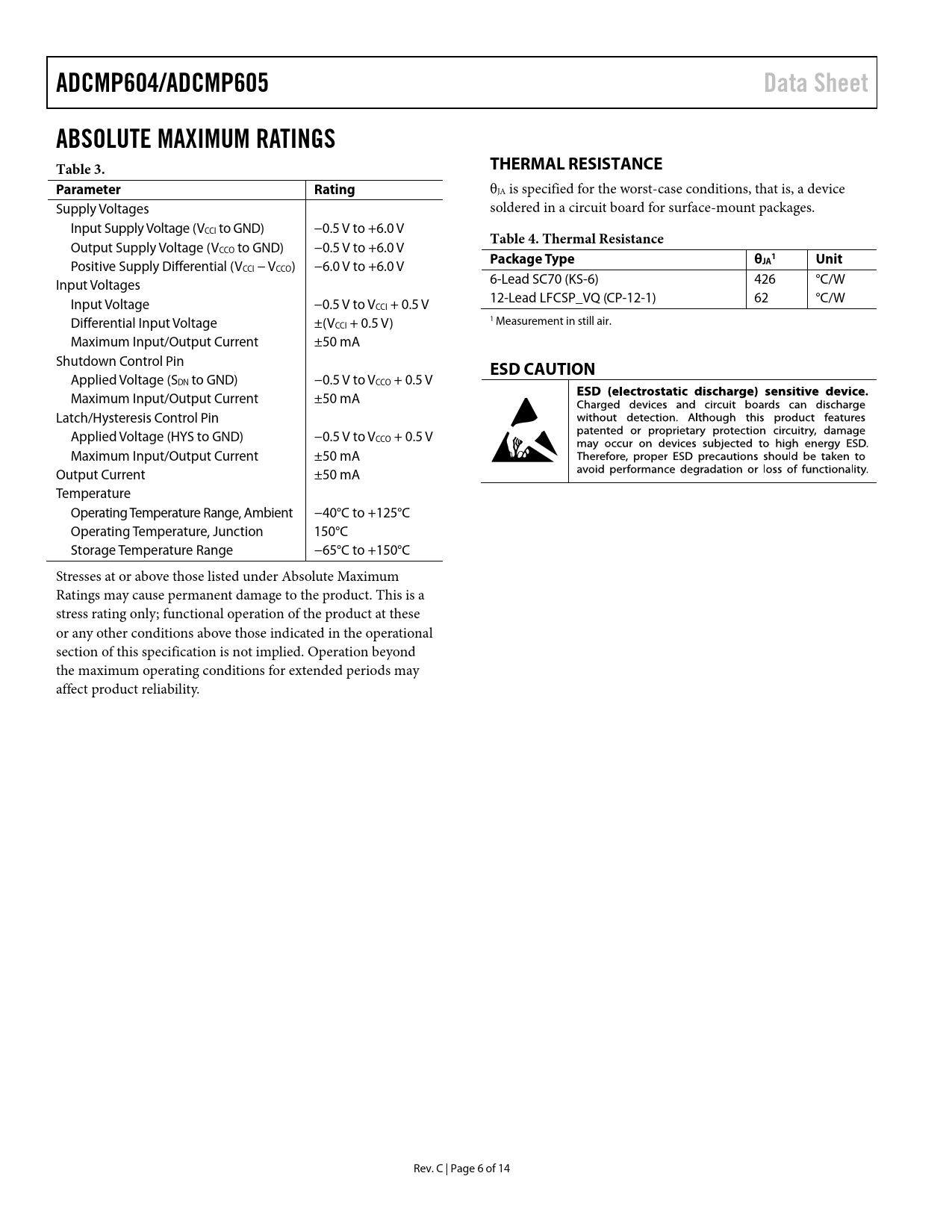

ADCMP604/ADCMP605 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 3. THERMAL RESISTANCE Parameter Rating
θJA is specified for the worst-case conditions, that is, a device Supply Voltages soldered in a circuit board for surface-mount packages. Input Supply Voltage (VCCI to GND) −0.5 V to +6.0 V Output Supply Voltage (V
Table 4. Thermal Resistance
CCO to GND) −0.5 V to +6.0 V
1
Positive Supply Differential (V
Package Type θJA Unit
CCI − VCCO) −6.0 V to +6.0 V Input Voltages 6-Lead SC70 (KS-6) 426 °C/W Input Voltage −0.5 V to V 12-Lead LFCSP_VQ (CP-12-1) 62 °C/W CCI + 0.5 V Differential Input Voltage ±(V 1 CCI + 0.5 V) Measurement in stil air. Maximum Input/Output Current ±50 mA Shutdown Control Pin
