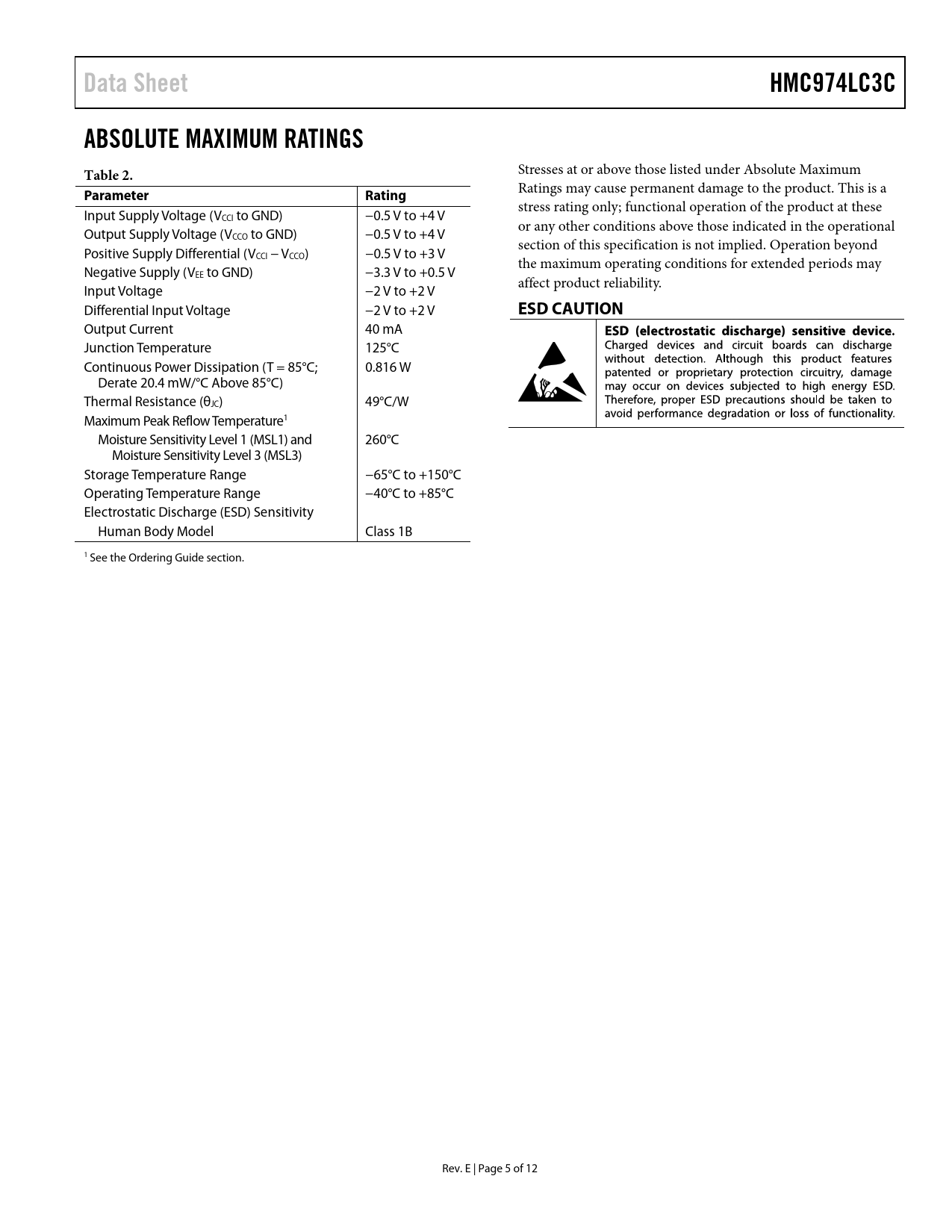

Data Sheet HMC974LC3C ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these Input Supply Voltage (VCCI to GND) −0.5 V to +4 V or any other conditions above those indicated in the operational Output Supply Voltage (VCCO to GND) −0.5 V to +4 V section of this specification is not implied. Operation beyond Positive Supply Differential (VCCI − VCCO) −0.5 V to +3 V the maximum operating conditions for extended periods may Negative Supply (VEE to GND) −3.3 V to +0.5 V affect product reliability. Input Voltage −2 V to +2 V Differential Input Voltage −2 V to +2 V
ESD CAUTION
Output Current 40 mA Junction Temperature 125°C Continuous Power Dissipation (T = 85°C; 0.816 W Derate 20.4 mW/°C Above 85°C) Thermal Resistance (θ JC) 49°C/W Maximum Peak Reflow Temperature1 Moisture Sensitivity Level 1 (MSL1) and 260°C Moisture Sensitivity Level 3 (MSL3) Storage Temperature Range −65°C to +150°C Operating Temperature Range −40°C to +85°C Electrostatic Discharge (ESD) Sensitivity Human Body Model Class 1B 1 See the Ordering Guide section. Rev. E | Page 5 of 12 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS TIMING DIAGRAM ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS INTERFACE SCHEMATICS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION POWER SEQUENCING APPLICATIONS INFORMATION EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
