Datasheet CMP401, CMP402 (Analog Devices) - 4
| Hersteller | Analog Devices |
| Beschreibung | 23 ns and 65 ns Low Voltage Comparators |
| Seiten / Seite | 8 / 4 — CMP401/CMP402. ABSOLUTE MAXIMUM RATINGS1. V+ ANA. V+ DIG. Package Type. … |
| Revision | B |
| Dateiformat / Größe | PDF / 173 Kb |
| Dokumentensprache | Englisch |

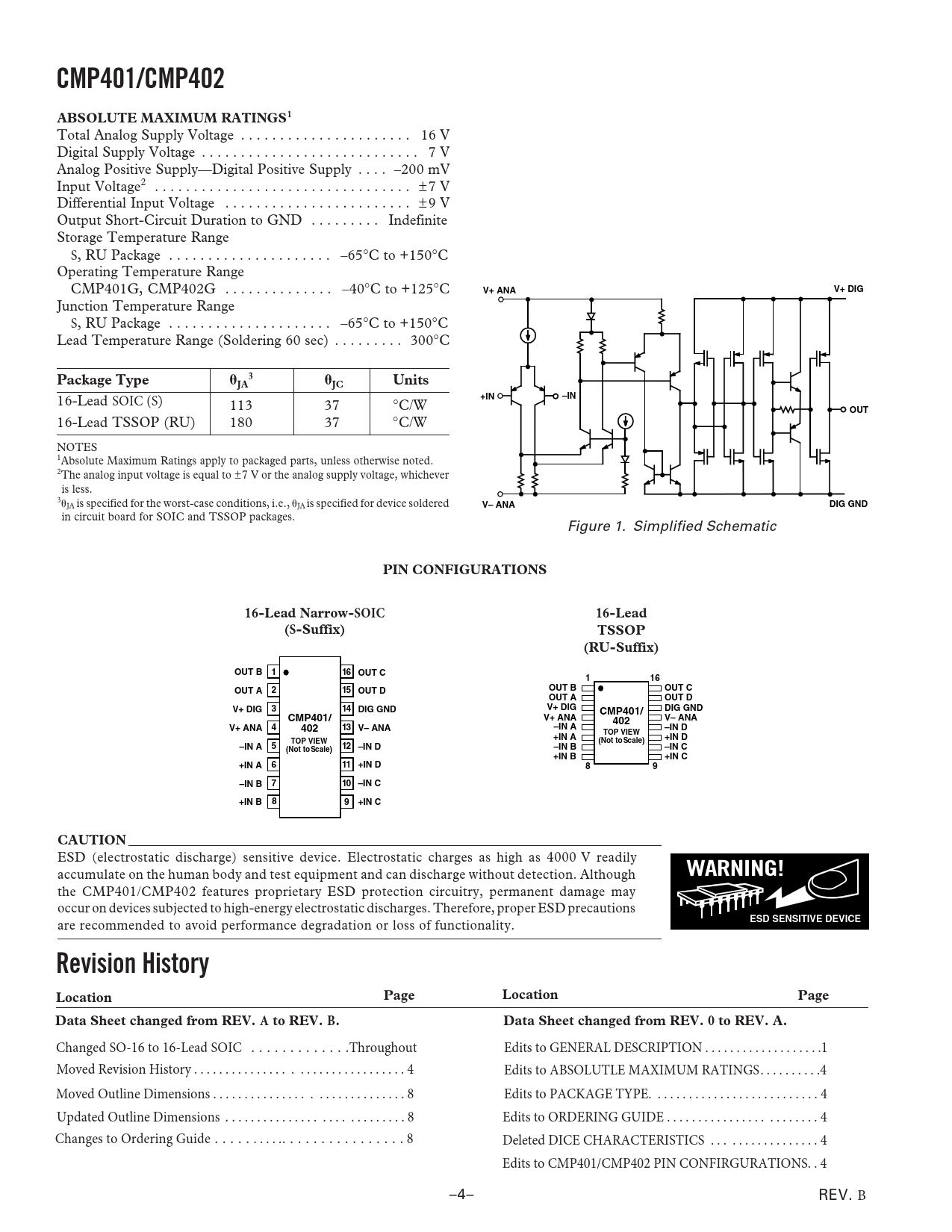

CMP401/CMP402. ABSOLUTE MAXIMUM RATINGS1. V+ ANA. V+ DIG. Package Type. Units. +IN. –IN. OUT. V– ANA. DIG GND. PIN CONFIGURATIONS
Modelllinie für dieses Datenblatt
Textversion des Dokuments
CMP401/CMP402 ABSOLUTE MAXIMUM RATINGS1
Total Analog Supply Voltage . 16 V Digital Supply Voltage . 7 V Analog Positive Supply—Digital Positive Supply . –200 mV Input Voltage2 . ± 7 V Differential Input Voltage . ± 9 V Output Short-Circuit Duration to GND . Indefinite Storage Temperature Range S, RU Package . –65°C to +150°C Operating Temperature Range CMP401G, CMP402G . –40°C to +125°C
V+ ANA V+ DIG
Junction Temperature Range S, RU Package . –65°C to +150°C Lead Temperature Range (Soldering 60 sec) . 300°C
Package Type
3
JA JC Units
16-Lead SOIC (S)
+IN –IN
113 37 °C/W
OUT
16-Lead TSSOP (RU) 180 37 °C/W NOTES 1Absolute Maximum Ratings apply to packaged parts, unless otherwise noted. 2The analog input voltage is equal to ±7 V or the analog supply voltage, whichever is less. 3JA is specified for the worst-case conditions, i.e., JA is specified for device soldered
V– ANA DIG GND
in circuit board for SOIC and TSSOP packages. Figure 1. Simplified Schematic
PIN CONFIGURATIONS 16-Lead Narrow-SOIC 16-Lead (S-Suffix) TSSOP (RU-Suffix) OUT B 1 16 OUT C 1 16 OUT A 2 15 OUT D OUT B OUT C OUT A OUT D V+ DIG 3 14 DIG GND V+ DIG DIG GND CMP401/ CMP401/ V+ ANA V– ANA 402 V+ ANA 4 402 13 V– ANA –IN A –IN D TOP VIEW +IN A +IN D TOP VIEW (Not to Scale) –IN A 5 12 –IN D (Not to Scale) –IN B –IN C +IN B +IN C +IN A 6 11 +IN D 8 9 –IN B 7 10 –IN C +IN B 8 9 +IN C CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although
WARNING!
the CMP401/CMP402 features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high-energy electrostatic discharges. Therefore, proper ESD precautions
ESD SENSITIVE DEVICE
are recommended to avoid performance degradation or loss of functionality.
Revision History Location Page Location Page Data Sheet changed from REV. A to REV. B. Data Sheet changed from REV. 0 to REV. A.
Changed SO-16 to 16-Lead SOIC . .Throughout Edits to GENERAL DESCRIPTION . .1 Moved Revision History . 4 Edits to ABSOLUTLE MAXIMUM RATINGS. .4 Moved Outline Dimensions . 8 Edits to PACKAGE TYPE. 4 Updated Outline Dimensions . 8 Edits to ORDERING GUIDE . 4 Changes to Ordering Guide . .. 8 Deleted DICE CHARACTERISTICS . 4 Edits to CMP401/CMP402 PIN CONFIRGURATIONS. 4 –4– REV. B
Total Analog Supply Voltage . 16 V Digital Supply Voltage . 7 V Analog Positive Supply—Digital Positive Supply . –200 mV Input Voltage2 . ± 7 V Differential Input Voltage . ± 9 V Output Short-Circuit Duration to GND . Indefinite Storage Temperature Range S, RU Package . –65°C to +150°C Operating Temperature Range CMP401G, CMP402G . –40°C to +125°C
V+ ANA V+ DIG
Junction Temperature Range S, RU Package . –65°C to +150°C Lead Temperature Range (Soldering 60 sec) . 300°C
Package Type
3
JA JC Units
16-Lead SOIC (S)
+IN –IN
113 37 °C/W
OUT
16-Lead TSSOP (RU) 180 37 °C/W NOTES 1Absolute Maximum Ratings apply to packaged parts, unless otherwise noted. 2The analog input voltage is equal to ±7 V or the analog supply voltage, whichever is less. 3JA is specified for the worst-case conditions, i.e., JA is specified for device soldered
V– ANA DIG GND
in circuit board for SOIC and TSSOP packages. Figure 1. Simplified Schematic
PIN CONFIGURATIONS 16-Lead Narrow-SOIC 16-Lead (S-Suffix) TSSOP (RU-Suffix) OUT B 1 16 OUT C 1 16 OUT A 2 15 OUT D OUT B OUT C OUT A OUT D V+ DIG 3 14 DIG GND V+ DIG DIG GND CMP401/ CMP401/ V+ ANA V– ANA 402 V+ ANA 4 402 13 V– ANA –IN A –IN D TOP VIEW +IN A +IN D TOP VIEW (Not to Scale) –IN A 5 12 –IN D (Not to Scale) –IN B –IN C +IN B +IN C +IN A 6 11 +IN D 8 9 –IN B 7 10 –IN C +IN B 8 9 +IN C CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily accumulate on the human body and test equipment and can discharge without detection. Although
WARNING!
the CMP401/CMP402 features proprietary ESD protection circuitry, permanent damage may occur on devices subjected to high-energy electrostatic discharges. Therefore, proper ESD precautions
ESD SENSITIVE DEVICE
are recommended to avoid performance degradation or loss of functionality.
Revision History Location Page Location Page Data Sheet changed from REV. A to REV. B. Data Sheet changed from REV. 0 to REV. A.
Changed SO-16 to 16-Lead SOIC . .Throughout Edits to GENERAL DESCRIPTION . .1 Moved Revision History . 4 Edits to ABSOLUTLE MAXIMUM RATINGS. .4 Moved Outline Dimensions . 8 Edits to PACKAGE TYPE. 4 Updated Outline Dimensions . 8 Edits to ORDERING GUIDE . 4 Changes to Ordering Guide . .. 8 Deleted DICE CHARACTERISTICS . 4 Edits to CMP401/CMP402 PIN CONFIRGURATIONS. 4 –4– REV. B
