ADCMP670. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. OUTA. OUTB. ADCMP670-1. GND. TOP VIEW. (Not to Scale). +INA. –INB
Modelllinie für dieses Datenblatt
Textversion des Dokuments

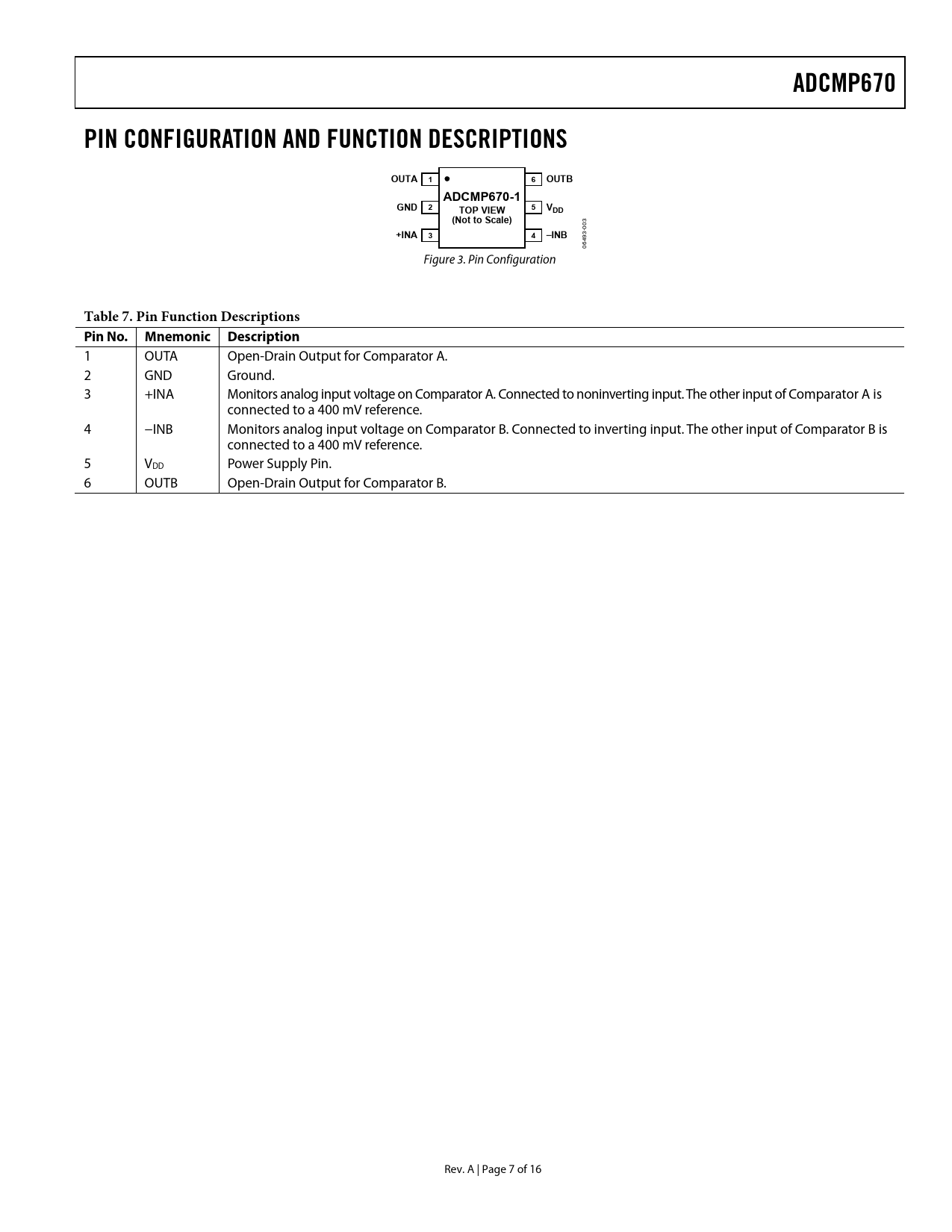

ADCMP670 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS OUTA 1 6 OUTB ADCMP670-1 GND 2 5 V TOP VIEW DD (Not to Scale)
3 00
+INA 3 4 –INB
3- 49 06 Figure 3. Pin Configuration
Table 7. Pin Function Descriptions Pin No. Mnemonic Description
1 OUTA Open-Drain Output for Comparator A. 2 GND Ground. 3 +INA Monitors analog input voltage on Comparator A. Connected to noninverting input. The other input of Comparator A is connected to a 400 mV reference. 4 −INB Monitors analog input voltage on Comparator B. Connected to inverting input. The other input of Comparator B is connected to a 400 mV reference. 5 VDD Power Supply Pin. 6 OUTB Open-Drain Output for Comparator B. Rev. A | Page 7 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS APPLICATION INFORMATION COMPARATORS AND INTERNAL REFERENCE POWER SUPPLY INPUTS OUTPUTS ADDING HYSTERESIS OUTLINE DIMENSIONS ORDERING GUIDE
