Datasheet AD8468 (Analog Devices) - 5
| Hersteller | Analog Devices |
| Beschreibung | Rail-to-Rail, Fast, Low Power 2.5 V to 5.5 V, Single-Supply TTL/CMOS Comparator |
| Seiten / Seite | 12 / 5 — Data Sheet. AD8468. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. Q 1. 6 … |
| Revision | A |
| Dateiformat / Größe | PDF / 273 Kb |
| Dokumentensprache | Englisch |

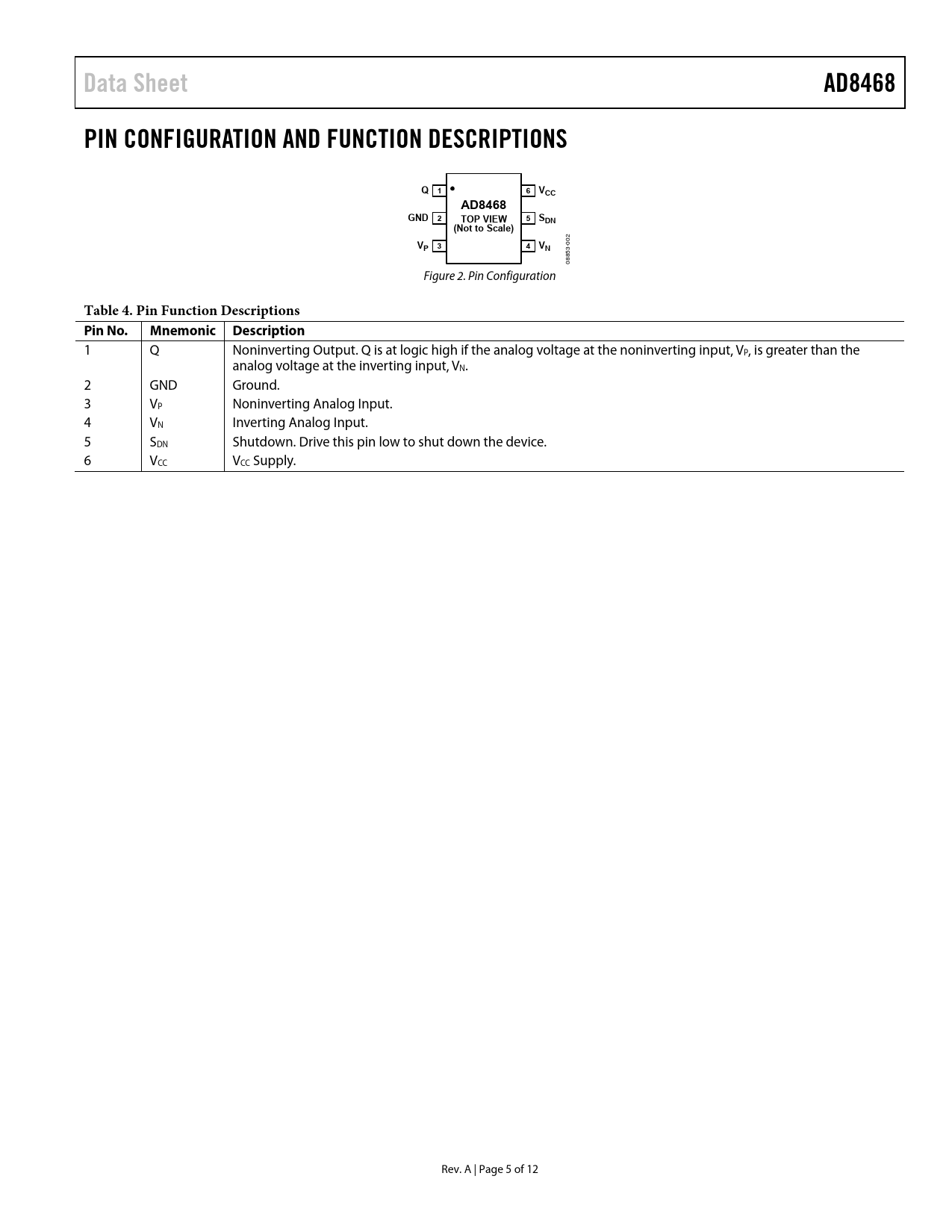

Data Sheet. AD8468. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. Q 1. 6 VCC. GND 2. TOP VIEW. 5 SDN. (Not to Scale). 4 VN
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Data Sheet AD8468 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS Q 1 6 VCC AD8468 GND 2 TOP VIEW 5 SDN (Not to Scale)
02
V
0
P 3 4 VN
3- 85 08 Figure 2. Pin Configuration
Table 4. Pin Function Descriptions Pin No. Mnemonic Description
1 Q Noninverting Output. Q is at logic high if the analog voltage at the noninverting input, VP, is greater than the analog voltage at the inverting input, VN. 2 GND Ground. 3 VP Noninverting Analog Input. 4 VN Inverting Analog Input. 5 SDN Shutdown. Drive this pin low to shut down the device. 6 VCC VCC Supply. Rev. A | Page 5 of 12 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION POWER/GROUND LAYOUT AND BYPASSING TTL-/CMOS-COMPATIBLE OUTPUT STAGE OPTIMIZING PERFORMANCE COMPARATOR PROPAGATIONDELAY DISPERSION CROSSOVER BIAS POINT MINIMUM INPUT SLEW RATE REQUIREMENT TYPICAL APPLICATION CIRCUITS OUTLINE DIMENSIONS ORDERING GUIDE AUTOMOTIVE PRODUCTS
