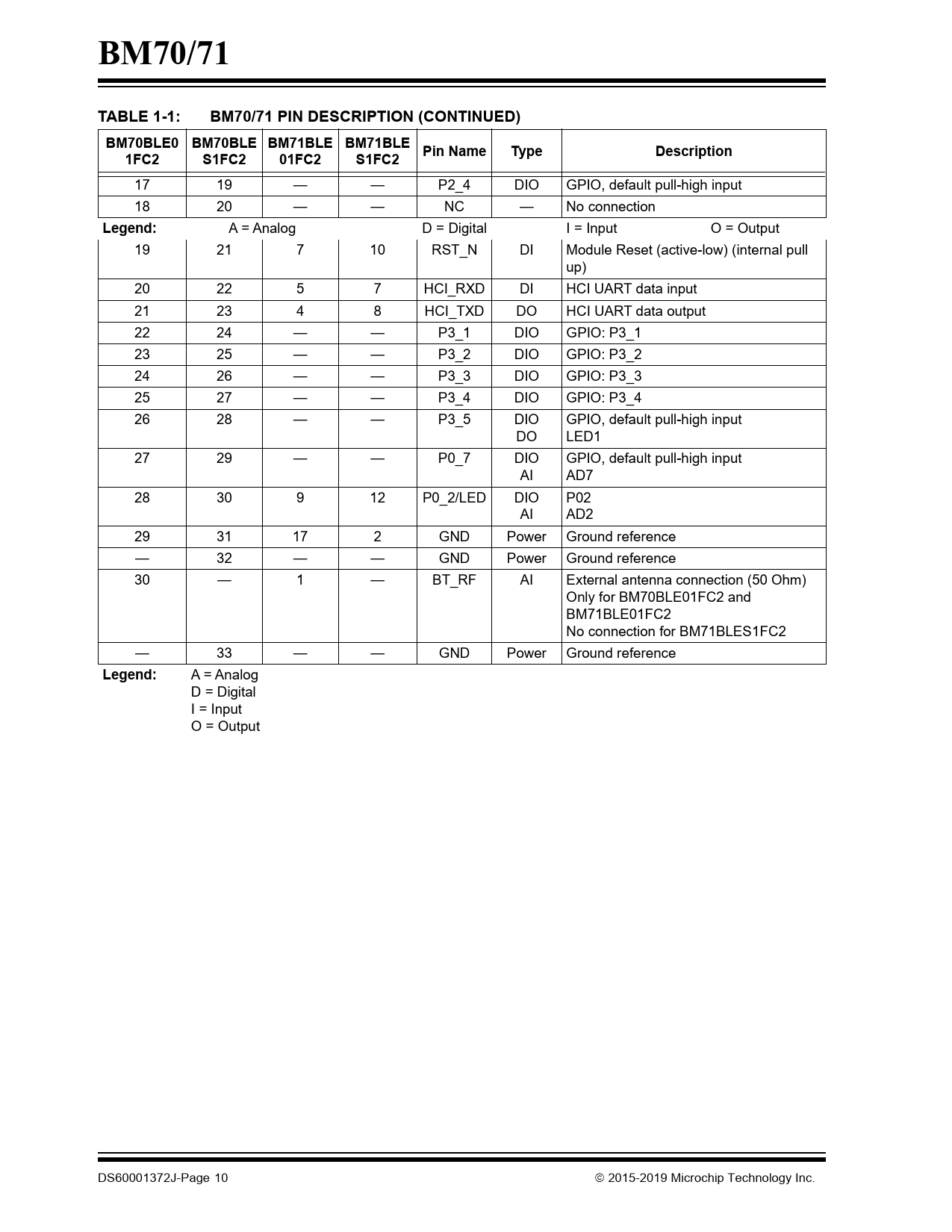

BM70/71 TABLE 1-1: BM70/71 PIN DESCRIPTION (CONTINUED) BM70BLE0 BM70BLE BM71BLE BM71BLE Pin Name Type Description 1FC2 S1FC2 01FC2 S1FC2
17 19 — — P2_4 DIO GPIO, default pull-high input 18 20 — — NC — No connection
Legend:
A = Analog D = Digital I = Input O = Output 19 21 7 10 RST_N DI Module Reset (active-low) (internal pull up) 20 22 5 7 HCI_RXD DI HCI UART data input 21 23 4 8 HCI_TXD DO HCI UART data output 22 24 — — P3_1 DIO GPIO: P3_1 23 25 — — P3_2 DIO GPIO: P3_2 24 26 — — P3_3 DIO GPIO: P3_3 25 27 — — P3_4 DIO GPIO: P3_4 26 28 — — P3_5 DIO GPIO, default pull-high input DO LED1 27 29 — — P0_7 DIO GPIO, default pull-high input AI AD7 28 30 9 12 P0_2/LED DIO P02 AI AD2 29 31 17 2 GND Power Ground reference — 32 — — GND Power Ground reference 30 — 1 — BT_RF AI External antenna connection (50 Ohm) Only for BM70BLE01FC2 and BM71BLE01FC2 No connection for BM71BLES1FC2 — 33 — — GND Power Ground reference
Legend:
