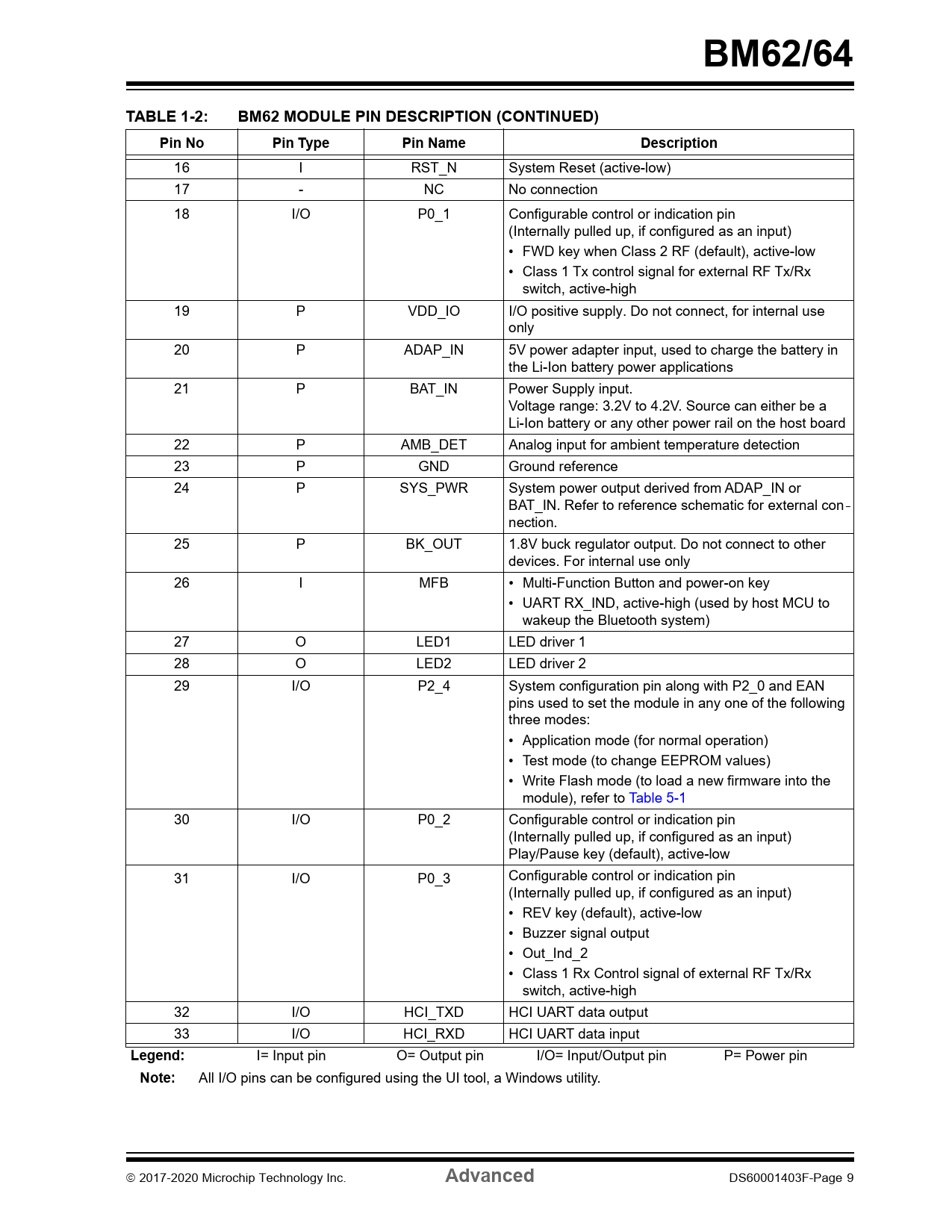

BM62/64 TABLE 1-2: BM62 MODULE PIN DESCRIPTION (CONTINUED) Pin No Pin Type Pin Name Description
16 I RST_N System Reset (active-low) 17 - NC No connection 18 I/O P0_1 Configurable control or indication pin (Internally pulled up, if configured as an input) • FWD key when Class 2 RF (default), active-low • Class 1 Tx control signal for external RF Tx/Rx switch, active-high 19 P VDD_IO I/O positive supply. Do not connect, for internal use only 20 P ADAP_IN 5V power adapter input, used to charge the battery in the Li-Ion battery power applications 21 P BAT_IN Power Supply input. Voltage range: 3.2V to 4.2V. Source can either be a Li-Ion battery or any other power rail on the host board 22 P AMB_DET Analog input for ambient temperature detection 23 P GND Ground reference 24 P SYS_PWR System power output derived from ADAP_IN or BAT_IN. Refer to reference schematic for external con- nection. 25 P BK_OUT 1.8V buck regulator output. Do not connect to other devices. For internal use only 26 I MFB • Multi-Function Button and power-on key • UART RX_IND, active-high (used by host MCU to wakeup the Bluetooth system) 27 O LED1 LED driver 1 28 O LED2 LED driver 2 29 I/O P2_4 System configuration pin along with P2_0 and EAN pins used to set the module in any one of the following three modes: • Application mode (for normal operation) • Test mode (to change EEPROM values) • Write Flash mode (to load a new firmware into the module), refer to Table 5-1 30 I/O P0_2 Configurable control or indication pin (Internally pulled up, if configured as an input) Play/Pause key (default), active-low 31 I/O P0_3 Configurable control or indication pin (Internally pulled up, if configured as an input) • REV key (default), active-low • Buzzer signal output • Out_Ind_2 • Class 1 Rx Control signal of external RF Tx/Rx switch, active-high 32 I/O HCI_TXD HCI UART data output 33 I/O HCI_RXD HCI UART data input
Legend:
I= Input pin O= Output pin I/O= Input/Output pin P= Power pin
Note:
All I/O pins can be configured using the UI tool, a Windows utility.  2017-2020 Microchip Technology Inc.
