BM62/64

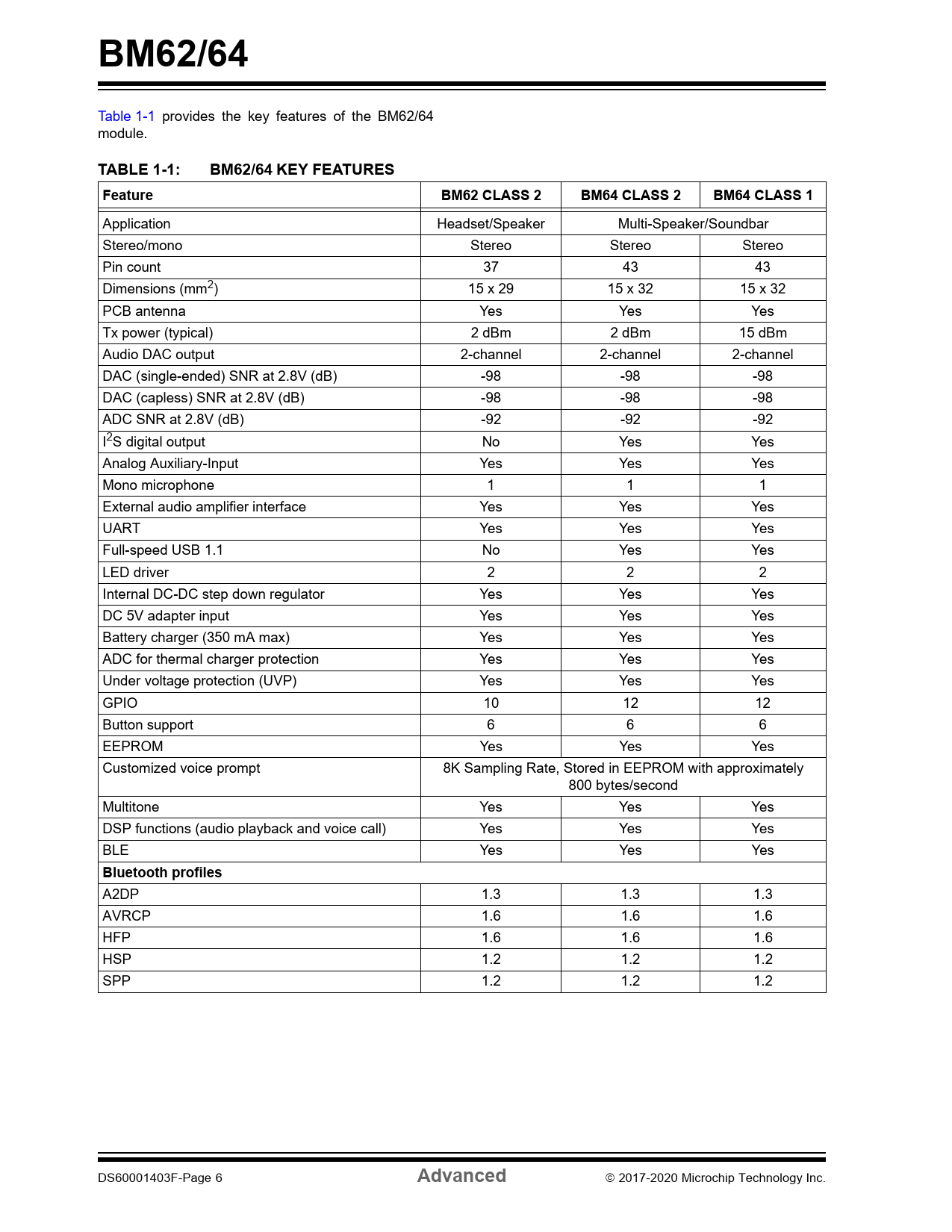

Table 1-1 provides the key features of the BM62/64 module.
TABLE 1-1: BM62/64 KEY FEATURES Feature BM62 CLASS 2 BM64 CLASS 2 BM64 CLASS 1
Application Headset/Speaker Multi-Speaker/Soundbar Stereo/mono Stereo Stereo Stereo Pin count 37 43 43 Dimensions (mm2) 15 x 29 15 x 32 15 x 32 PCB antenna Yes Yes Yes Tx power (typical) 2 dBm 2 dBm 15 dBm Audio DAC output 2-channel 2-channel 2-channel DAC (single-ended) SNR at 2.8V (dB) -98 -98 -98 DAC (capless) SNR at 2.8V (dB) -98 -98 -98 ADC SNR at 2.8V (dB) -92 -92 -92 I2S digital output No Yes Yes Analog Auxiliary-Input Yes Yes Yes Mono microphone 1 1 1 External audio amplifier interface Yes Yes Yes UART Yes Yes Yes Full-speed USB 1.1 No Yes Yes LED driver 2 2 2 Internal DC-DC step down regulator Yes Yes Yes DC 5V adapter input Yes Yes Yes Battery charger (350 mA max) Yes Yes Yes ADC for thermal charger protection Yes Yes Yes Under voltage protection (UVP) Yes Yes Yes GPIO 10 12 12 Button support 6 6 6 EEPROM Yes Yes Yes Customized voice prompt 8K Sampling Rate, Stored in EEPROM with approximately 800 bytes/second Multitone Yes Yes Yes DSP functions (audio playback and voice call) Yes Yes Yes BLE Yes Yes Yes
Bluetooth profiles
A2DP 1.3 1.3 1.3 AVRCP 1.6 1.6 1.6 HFP 1.6 1.6 1.6 HSP 1.2 1.2 1.2 SPP 1.2 1.2 1.2 DS60001403F-Page 6
Advanced
