Datasheet ADL5501 (Analog Devices) - 9
| Hersteller | Analog Devices |
| Beschreibung | 50 MHz to 6 GHz TruPwr Detector |
| Seiten / Seite | 28 / 9 — ADL5501. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter Rating. ESD CAUTION |
| Revision | B |
| Dateiformat / Größe | PDF / 2.1 Mb |
| Dokumentensprache | Englisch |
ADL5501. ABSOLUTE MAXIMUM RATINGS. Table 2. Parameter Rating. ESD CAUTION
Modelllinie für dieses Datenblatt
Textversion des Dokuments

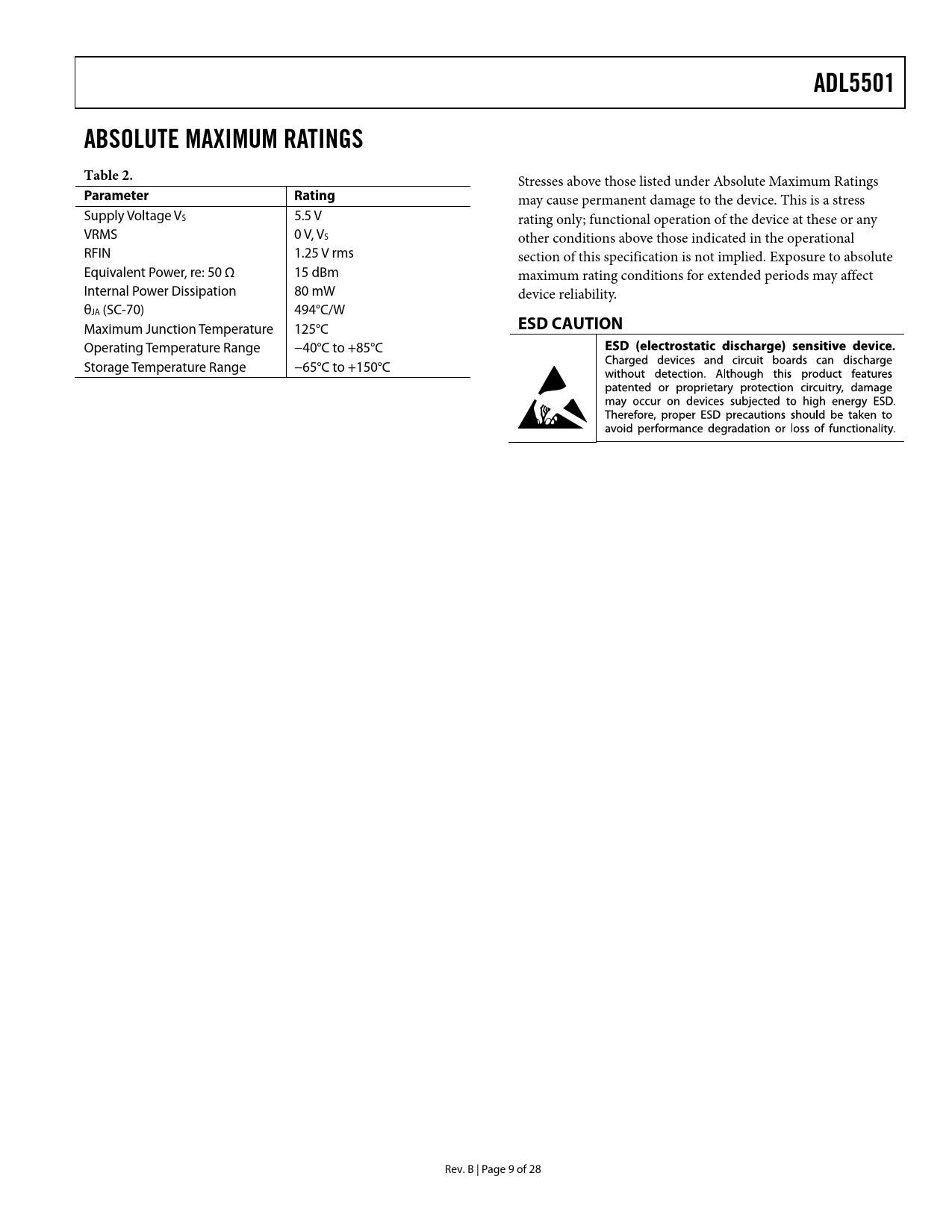

ADL5501 ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses above those listed under Absolute Maximum Ratings
Parameter Rating
may cause permanent damage to the device. This is a stress Supply Voltage VS 5.5 V rating only; functional operation of the device at these or any VRMS 0 V, VS other conditions above those indicated in the operational RFIN 1.25 V rms section of this specification is not implied. Exposure to absolute Equivalent Power, re: 50 Ω 15 dBm maximum rating conditions for extended periods may affect Internal Power Dissipation 80 mW device reliability. θJA (SC-70) 494°C/W Maximum Junction Temperature 125°C
ESD CAUTION
Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C Rev. B | Page 9 of 28 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS CIRCUIT DESCRIPTION FILTERING APPLICATIONS INFORMATION BASIC CONNECTIONS OUTPUT SWING LINEARITY INPUT COUPLING USING A SERIES RESISTOR MULTIPLE RF INPUTS SELECTING THE SQUARE-DOMAIN FILTER AND OUTPUT LOW-PASS FILTER POWER CONSUMPTION, ENABLE, AND POWER-ON/POWER-OFF RESPONSE TIME OUTPUT DRIVE CAPABILITY AND BUFFERING VRMS OUTPUT OFFSET DEVICE CALIBRATION AND ERROR CALCULATION CALIBRATION FOR IMPROVED ACCURACY DRIFT OVER A REDUCED TEMPERATURE RANGE OPERATION BELOW 100 MHz EVALUATION BOARD OUTLINE DIMENSIONS ORDERING GUIDE
