Datasheet ZR431L (Diodes) - 8

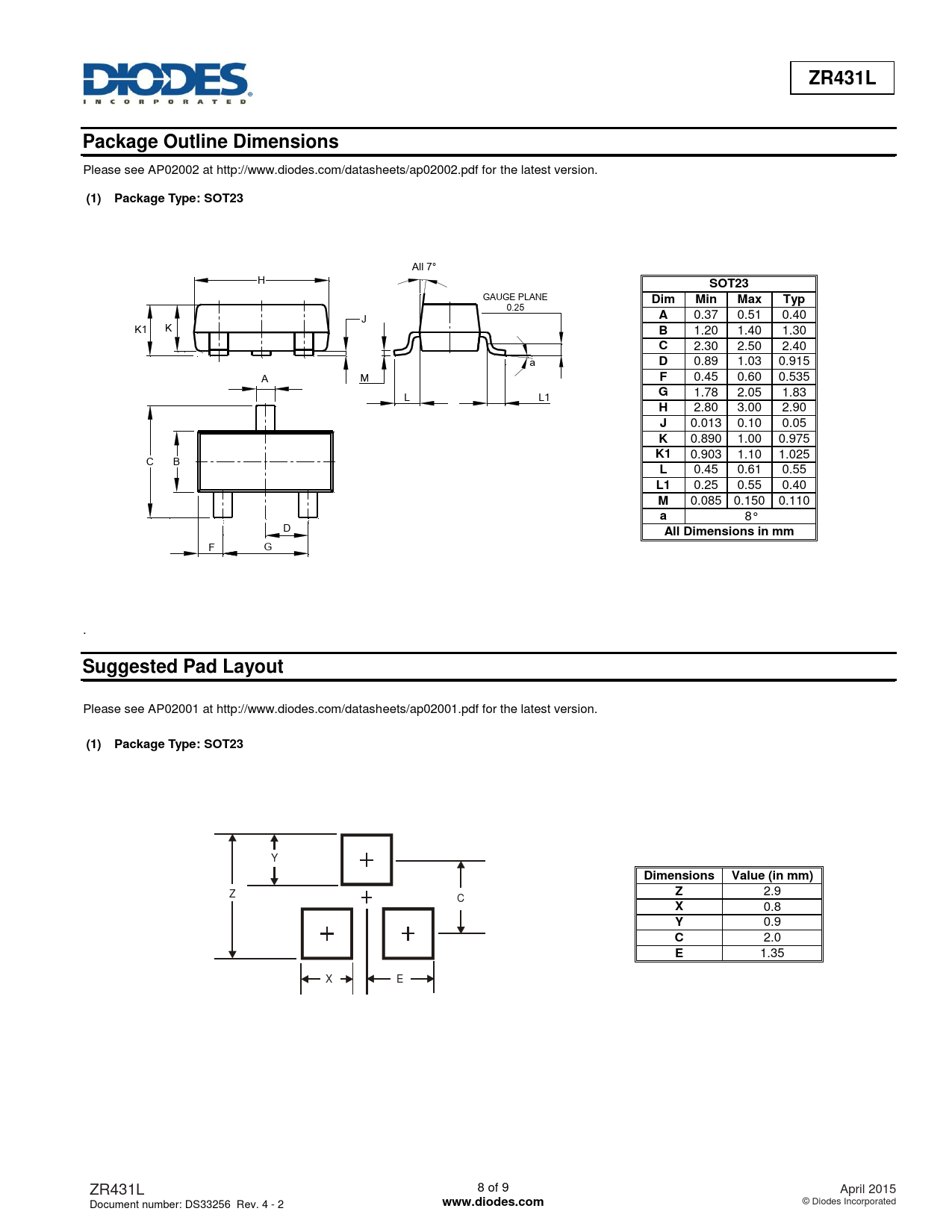

ZR431L Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for the latest version.
(1) Package Type: SOT23
All 7° H
SOT23
GAUGE PLANE
Dim Min Max Typ
0.25 J
A
0.37 0.51 0.40 K1 K
B
1.20 1.40 1.30
C
2.30 2.50 2.40 a
D
0.89 1.03 0.915 A M
F
0.45 0.60 0.535 L L1
G
1.78 2.05 1.83
H
2.80 3.00 2.90
J
0.013 0.10 0.05
K
0.890 1.00 0.975 C B
K1
0.903 1.10 1.025
L
0.45 0.61 0.55
L1
0.25 0.55 0.40
M
0.085 0.150 0.110
a
 8° D
All Dimensions in mm
F G .
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
(1) Package Type: SOT23
Y
Dimensions Value (in mm)
Z
Z
2.9 C
X
0.8
Y
0.9
C
2.0
E
1.35 X E ZR431L 8 of 9 April 2015 Document number: DS33256 Rev. 4 - 2
