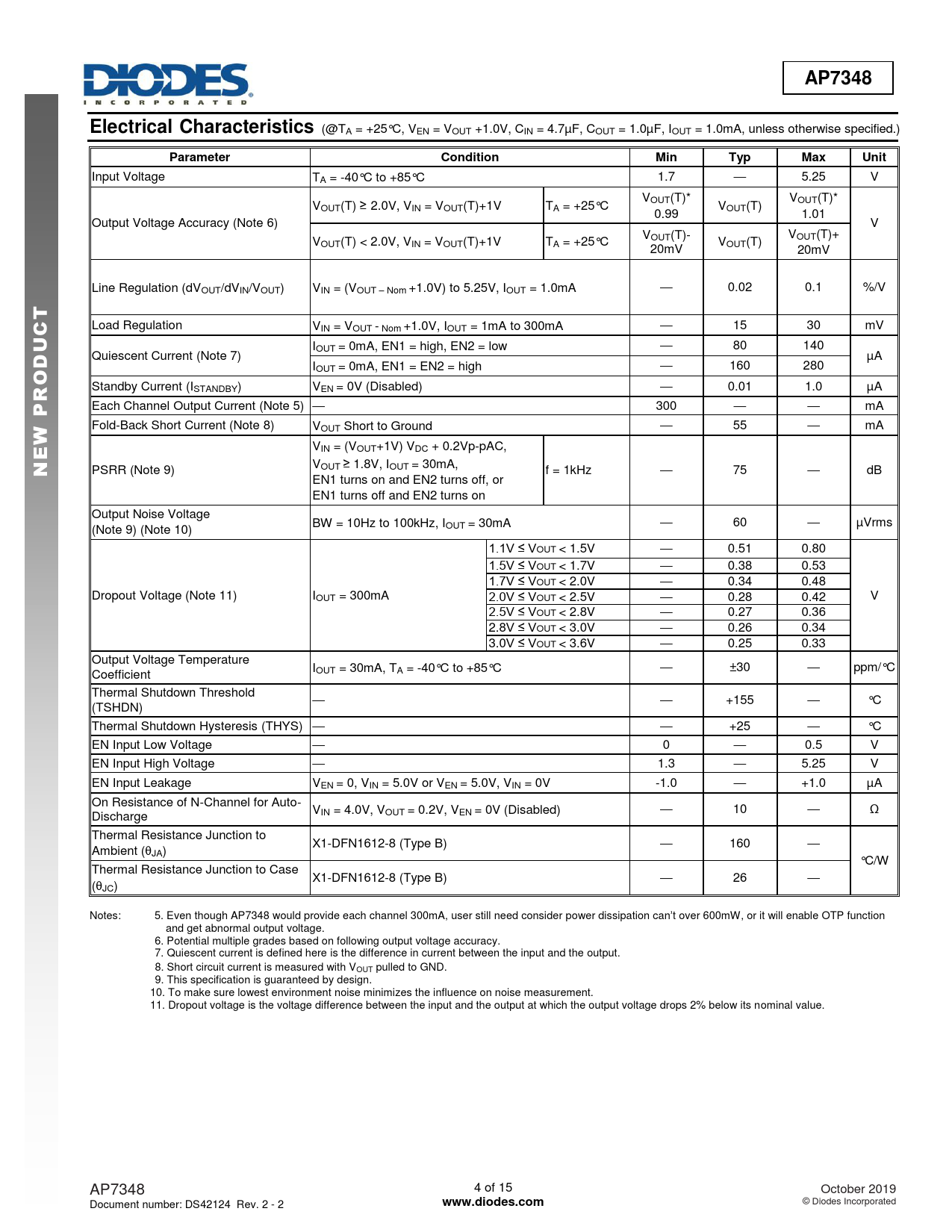

AP7348 Electrical Characteristics
(@TA = +25°C, VEN = VOUT +1.0V, CIN = 4.7µF, COUT = 1.0µF, IOUT = 1.0mA, unless otherwise specified.)
Parameter Condition Min Typ Max Unit
Input Voltage TA = -40°C to +85°C 1.7 — 5.25 V V V V OUT(T)* OUT(T)* OUT(T) ≥ 2.0V, VIN = VOUT(T)+1V TA = +25°C V 0.99 OUT(T) 1.01 Output Voltage Accuracy (Note 6) V V V V OUT(T)- OUT(T)+ OUT(T) < 2.0V, VIN = VOUT(T)+1V TA = +25°C V 20mV OUT(T) 20mV Line Regulation (dVOUT/dVIN/VOUT) VIN = (VOUT – Nom +1.0V) to 5.25V, IOUT = 1.0mA — 0.02 0.1 %/V
T C
Load Regulation VIN = VOUT - Nom +1.0V, IOUT = 1mA to 300mA — 15 30 mV
U
I
D
OUT = 0mA, EN1 = high, EN2 = low — 80 140 Quiescent Current (Note 7) µA
O
IOUT = 0mA, EN1 = EN2 = high — 160 280
R
Standby Current (ISTANDBY) VEN = 0V (Disabled) — 0.01 1.0 µA
P
Each Channel Output Current (Note 5) — 300 — — mA
W
Fold-Back Short Current (Note 8) VOUT Short to Ground — 55 — mA
E
VIN = (VOUT+1V) VDC + 0.2Vp-pAC,
N
V PSRR (Note 9) OUT ≥ 1.8V, IOUT = 30mA, f = 1kHz — 75 — dB EN1 turns on and EN2 turns off, or EN1 turns off and EN2 turns on Output Noise Voltage BW = 10Hz to 100kHz, I (Note 9) (Note 10) OUT = 30mA — 60 — µVrms 1.1V ≤ VOUT < 1.5V — 0.51 0.80 1.5V ≤ VOUT < 1.7V — 0.38 0.53 1.7V ≤ VOUT < 2.0V — 0.34 0.48 Dropout Voltage (Note 11) IOUT = 300mA 2.0V ≤ VOUT < 2.5V — 0.28 0.42 V 2.5V ≤ VOUT < 2.8V — 0.27 0.36 2.8V ≤ VOUT < 3.0V — 0.26 0.34 3.0V ≤ VOUT < 3.6V — 0.25 0.33 Output Voltage Temperature I Coefficient OUT = 30mA, TA = -40° C to +85°C — ±30 — ppm/°C Thermal Shutdown Threshold — — +155 — °C (TSHDN) Thermal Shutdown Hysteresis (THYS) — — +25 — °C EN Input Low Voltage — 0 — 0.5 V EN Input High Voltage — 1.3 — 5.25 V EN Input Leakage VEN = 0, VIN = 5.0V or VEN = 5.0V, VIN = 0V -1.0 — +1.0 µA On Resistance of N-Channel for Auto- V Discharge IN = 4.0V, VOUT = 0.2V, VEN = 0V (Disabled) — 10 — Ω Thermal Resistance Junction to X1-DFN1612-8 (Type B) — 160 — Ambient (JA) °C/W Thermal Resistance Junction to Case X1-DFN1612-8 (Type B) — 26 — (JC) Notes: 5. Even though AP7348 would provide each channel 300mA, user still need consider power dissipation can’t over 600mW, or it will enable OTP function and get abnormal output voltage. 6. Potential multiple grades based on following output voltage accuracy. 7. Quiescent current is defined here is the difference in current between the input and the output. 8. Short circuit current is measured with VOUT pulled to GND. 9. This specification is guaranteed by design. 10. To make sure lowest environment noise minimizes the influence on noise measurement. 11. Dropout voltage is the voltage difference between the input and the output at which the output voltage drops 2% below its nominal value. AP7348 4 of 15 October 2019 Document number: DS42124 Rev. 2 - 2
