Datasheet GP2Y0A41SK0F (Sharp) - 2
| Hersteller | Sharp |
| Beschreibung | Distance Measuring Sensor Unit Measuring distance: 4 to 30 cm Analog output type |
| Seiten / Seite | 9 / 2 — GP2Y0A41SK0F. Schematic. Outline |
| Dateiformat / Größe | PDF / 1.8 Mb |
| Dokumentensprache | Englisch |

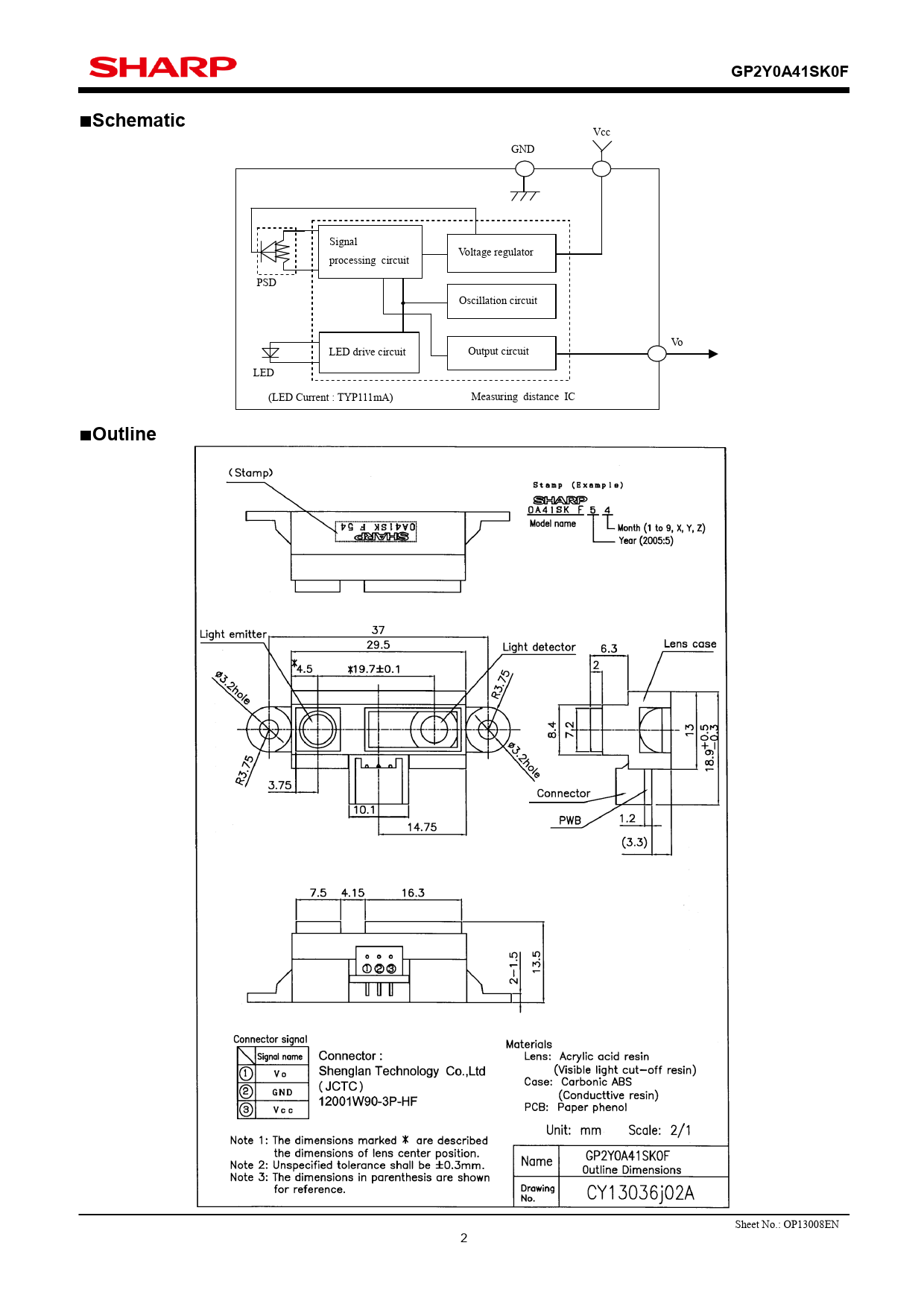

GP2Y0A41SK0F. Schematic. Outline
Modelllinie für dieses Datenblatt
Textversion des Dokuments
GP2Y0A41SK0F Schematic
Vcc GND Signal Voltage regulator processing circuit PSD Oscillation circuit Vo LED drive circuit Output circuit LED (LED Current : TYP111mA) Measuring distance IC
Outline
Sheet No.: OP13008EN 2
Vcc GND Signal Voltage regulator processing circuit PSD Oscillation circuit Vo LED drive circuit Output circuit LED (LED Current : TYP111mA) Measuring distance IC
Outline
Sheet No.: OP13008EN 2
