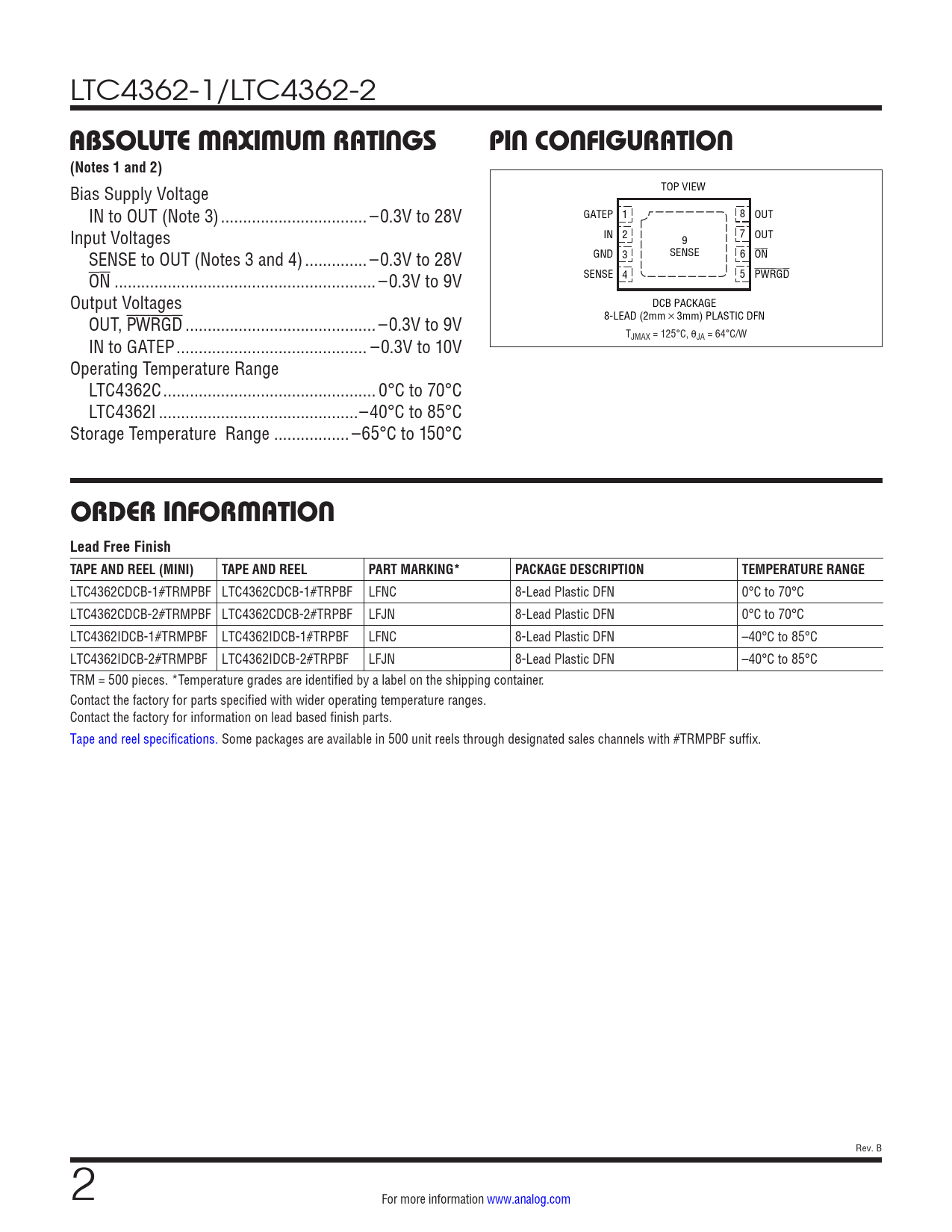

LTC4362-1/LTC4362-2
ABSOLUTE MAXIMUM RATINGS PIN CONFIGURATION (Notes 1 and 2)
Bias Supply Voltage TOP VIEW IN to OUT (Note 3) ... –0.3V to 28V GATEP 1 8 OUT Input Voltages IN 2 7 OUT 9 SENSE to OUT (Notes 3 and 4) .. –0.3V to 28V GND 3 SENSE 6 ON ON ... –0.3V to 9V SENSE 4 5 PWRGD Output Voltages DCB PACKAGE OUT, PWRGD ... –0.3V to 9V 8-LEAD (2mm × 3mm) PLASTIC DFN T IN to GATEP ... –0.3V to 10V JMAX = 125°C, θJA = 64°C/W Operating Temperature Range LTC4362C .. 0°C to 70°C LTC4362I ...–40°C to 85°C Storage Temperature Range ... –65°C to 150°C
ORDER INFORMATION Lead Free Finish TAPE AND REEL (MINI) TAPE AND REEL PART MARKING* PACKAGE DESCRIPTION TEMPERATURE RANGE
LTC4362CDCB-1#TRMPBF LTC4362CDCB-1#TRPBF LFNC 8-Lead Plastic DFN 0°C to 70°C LTC4362CDCB-2#TRMPBF LTC4362CDCB-2#TRPBF LFJN 8-Lead Plastic DFN 0°C to 70°C LTC4362IDCB-1#TRMPBF LTC4362IDCB-1#TRPBF LFNC 8-Lead Plastic DFN –40°C to 85°C LTC4362IDCB-2#TRMPBF LTC4362IDCB-2#TRPBF LFJN 8-Lead Plastic DFN –40°C to 85°C TRM = 500 pieces. *Temperature grades are identified by a label on the shipping container. Contact the factory for parts specified with wider operating temperature ranges. Contact the factory for information on lead based finish parts. Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. Rev. B 2 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings order information Pin Configuration Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Package Description Revision History Typical Application Related Parts
