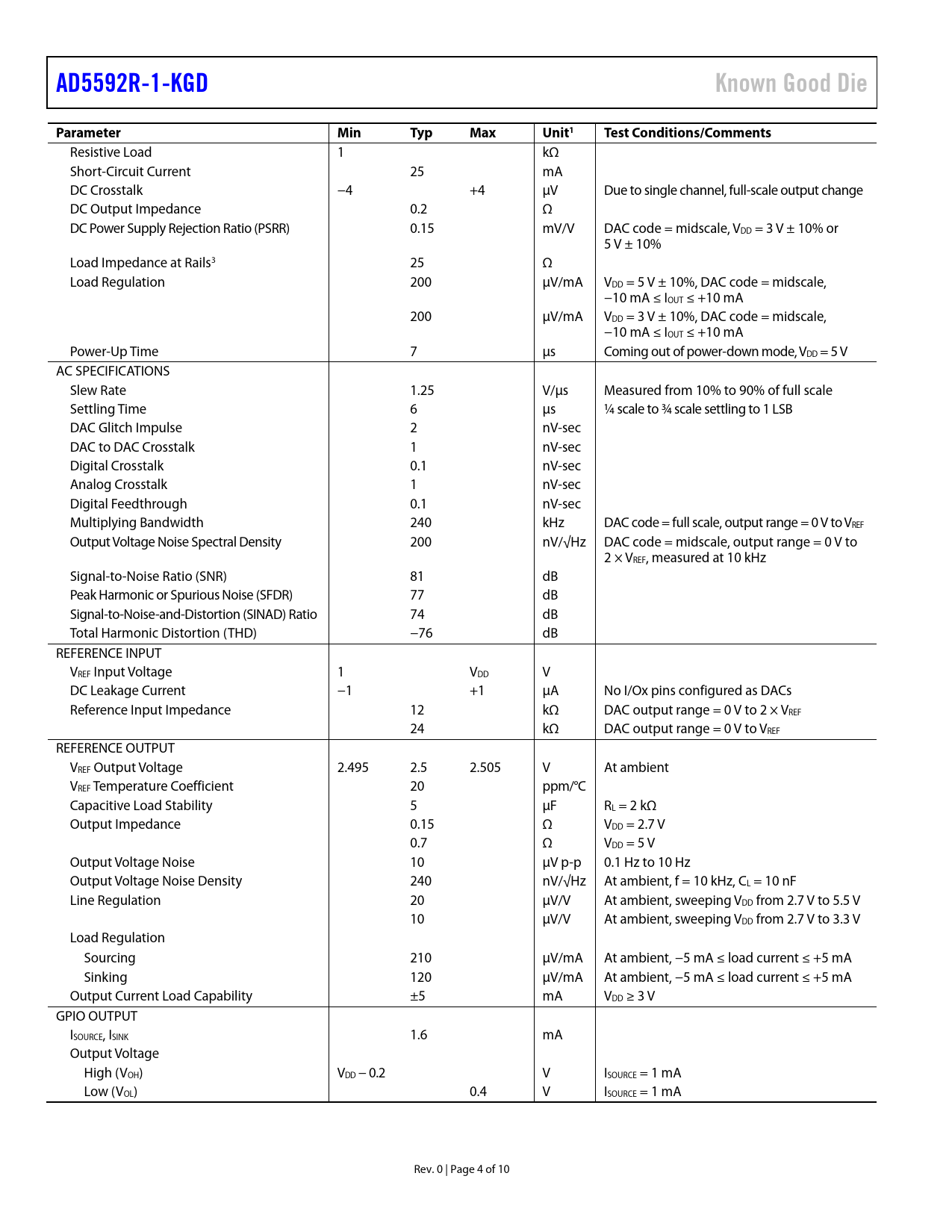

AD5592R-1-KGD Known Good Die Parameter Min Typ Max Unit1 Test Conditions/Comments
Resistive Load 1 kΩ Short-Circuit Current 25 mA DC Crosstalk −4 +4 µV Due to single channel, ful -scale output change DC Output Impedance 0.2 Ω DC Power Supply Rejection Ratio (PSRR) 0.15 mV/V DAC code = midscale, VDD = 3 V ± 10% or 5 V ± 10% Load Impedance at Rails3 25 Ω Load Regulation 200 µV/mA VDD = 5 V ± 10%, DAC code = midscale, −10 mA ≤ IOUT ≤ +10 mA 200 µV/mA VDD = 3 V ± 10%, DAC code = midscale, −10 mA ≤ IOUT ≤ +10 mA Power-Up Time 7 µs Coming out of power-down mode, VDD = 5 V AC SPECIFICATIONS Slew Rate 1.25 V/µs Measured from 10% to 90% of full scale Settling Time 6 µs ¼ scale to ¾ scale settling to 1 LSB DAC Glitch Impulse 2 nV-sec DAC to DAC Crosstalk 1 nV-sec Digital Crosstalk 0.1 nV-sec Analog Crosstalk 1 nV-sec Digital Feedthrough 0.1 nV-sec Multiplying Bandwidth 240 kHz DAC code = ful scale, output range = 0 V to VREF Output Voltage Noise Spectral Density 200 nV/√Hz DAC code = midscale, output range = 0 V to 2 × VREF, measured at 10 kHz Signal-to-Noise Ratio (SNR) 81 dB Peak Harmonic or Spurious Noise (SFDR) 77 dB Signal-to-Noise-and-Distortion (SINAD) Ratio 74 dB Total Harmonic Distortion (THD) −76 dB REFERENCE INPUT VREF Input Voltage 1 VDD V DC Leakage Current −1 +1 µA No I/Ox pins configured as DACs Reference Input Impedance 12 kΩ DAC output range = 0 V to 2 × VREF 24 kΩ DAC output range = 0 V to VREF REFERENCE OUTPUT VREF Output Voltage 2.495 2.5 2.505 V At ambient VREF Temperature Coefficient 20 ppm/°C Capacitive Load Stability 5 μF RL = 2 kΩ Output Impedance 0.15 Ω VDD = 2.7 V 0.7 Ω VDD = 5 V Output Voltage Noise 10 µV p-p 0.1 Hz to 10 Hz Output Voltage Noise Density 240 nV/√Hz At ambient, f = 10 kHz, CL = 10 nF Line Regulation 20 µV/V At ambient, sweeping VDD from 2.7 V to 5.5 V 10 µV/V At ambient, sweeping VDD from 2.7 V to 3.3 V Load Regulation Sourcing 210 µV/mA At ambient, −5 mA ≤ load current ≤ +5 mA Sinking 120 µV/mA At ambient, −5 mA ≤ load current ≤ +5 mA Output Current Load Capability ±5 mA VDD ≥ 3 V GPIO OUTPUT ISOURCE, ISINK 1.6 mA Output Voltage High (VOH) VDD − 0.2 V ISOURCE = 1 mA Low (VOL) 0.4 V ISOURCE = 1 mA Rev. 0 | Page 4 of 10 Document Outline Features Applications General Description Functional Block Diagram Revision History Specifications Timing Characteristics Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Outline Dimensions Die Specifications and Assembly Recommendations Ordering Guide
