Datasheet AD8515 (Analog Devices)
| Hersteller | Analog Devices |
| Beschreibung | 1.8 V Low Power CMOS Rail-to-Rail Input/Output Operational Amplifier |
| Seiten / Seite | 16 / 1 — 1.8 V Low Power CMOS Rail-to-Rail. Input/Output Operational Amplifier. … |
| Revision | E |
| Dateiformat / Größe | PDF / 290 Kb |
| Dokumentensprache | Englisch |

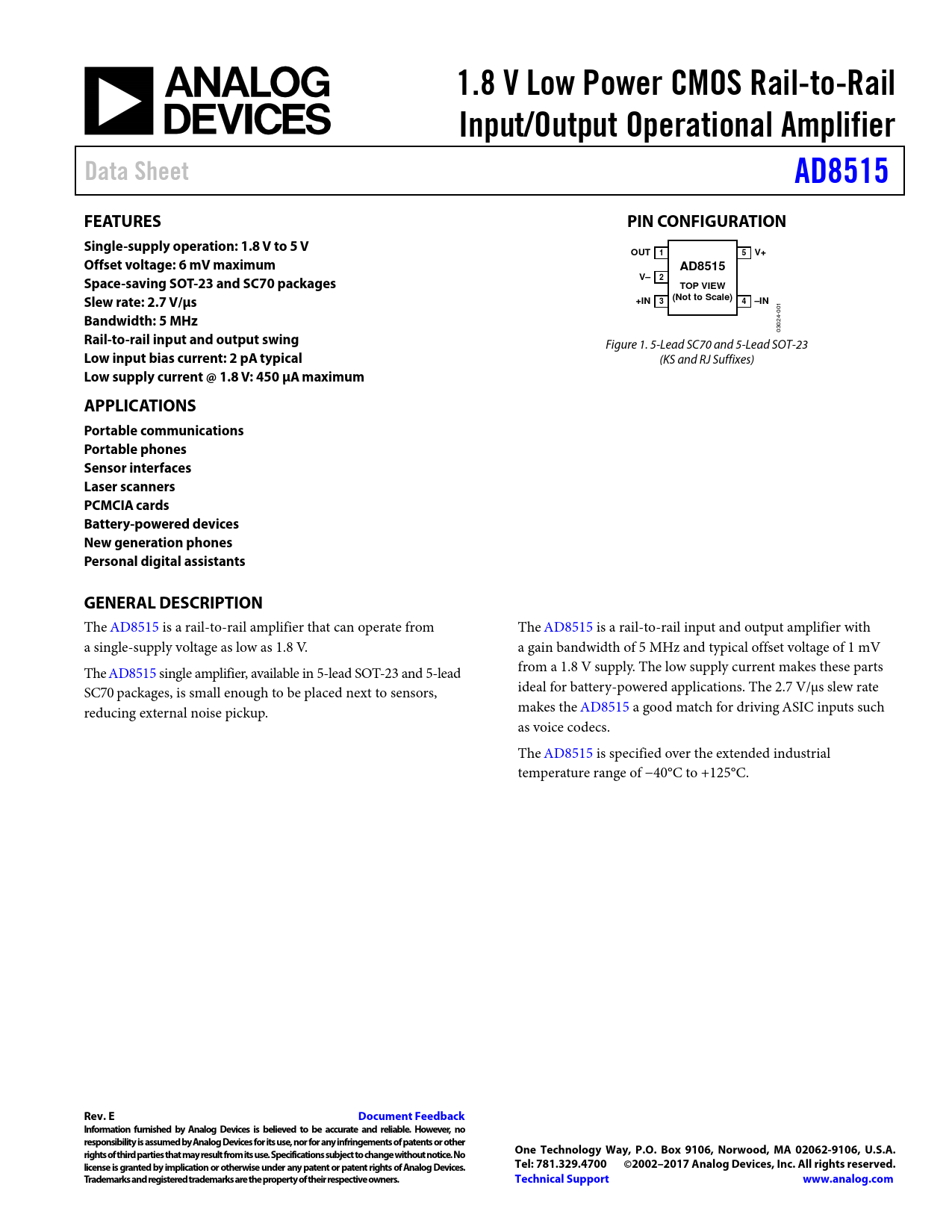

1.8 V Low Power CMOS Rail-to-Rail. Input/Output Operational Amplifier. Data Sheet. AD8515. FEATURES. PIN CONFIGURATION
Modelllinie für dieses Datenblatt
Textversion des Dokuments
1.8 V Low Power CMOS Rail-to-Rail Input/Output Operational Amplifier Data Sheet AD8515 FEATURES PIN CONFIGURATION Single-supply operation: 1.8 V to 5 V OUT 1 5 V+ Offset voltage: 6 mV maximum AD8515 V– 2 Space-saving SOT-23 and SC70 packages TOP VIEW Slew rate: 2.7 V/μs +IN (Not to Scale) 3 4 –IN
1 -00
Bandwidth: 5 MHz
24 30 0
Rail-to-rail input and output swing
Figure 1. 5-Lead SC70 and 5-Lead SOT-23
Low input bias current: 2 pA typical
(KS and RJ Suffixes)
Low supply current @ 1.8 V: 450 μA maximum APPLICATIONS Portable communications Portable phones Sensor interfaces Laser scanners PCMCIA cards Battery-powered devices New generation phones Personal digital assistants GENERAL DESCRIPTION
The AD8515 is a rail-to-rail amplifier that can operate from The AD8515 is a rail-to-rail input and output amplifier with a single-supply voltage as low as 1.8 V. a gain bandwidth of 5 MHz and typical offset voltage of 1 mV The AD8515 single amplifier, available in 5-lead SOT-23 and 5-lead from a 1.8 V supply. The low supply current makes these parts SC70 packages, is small enough to be placed next to sensors, ideal for battery-powered applications. The 2.7 V/μs slew rate reducing external noise pickup. makes the AD8515 a good match for driving ASIC inputs such as voice codecs. The AD8515 is specified over the extended industrial temperature range of −40°C to +125°C.
Rev. E Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2002–2017 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline FEATURES APPLICATIONS PIN CONFIGURATION GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION POWER CONSUMPTION vs. BANDWIDTH DRIVING CAPACITIVE LOADS FULL POWER BANDWIDTH A MICROPOWER REFERENCE VOLTAGE GENERATOR A 100 kHz SINGLE-SUPPLY SECOND-ORDER BAND-PASS FILTER WIEN BRIDGE OSCILLATOR OUTLINE DIMENSIONS ORDERING GUIDE
