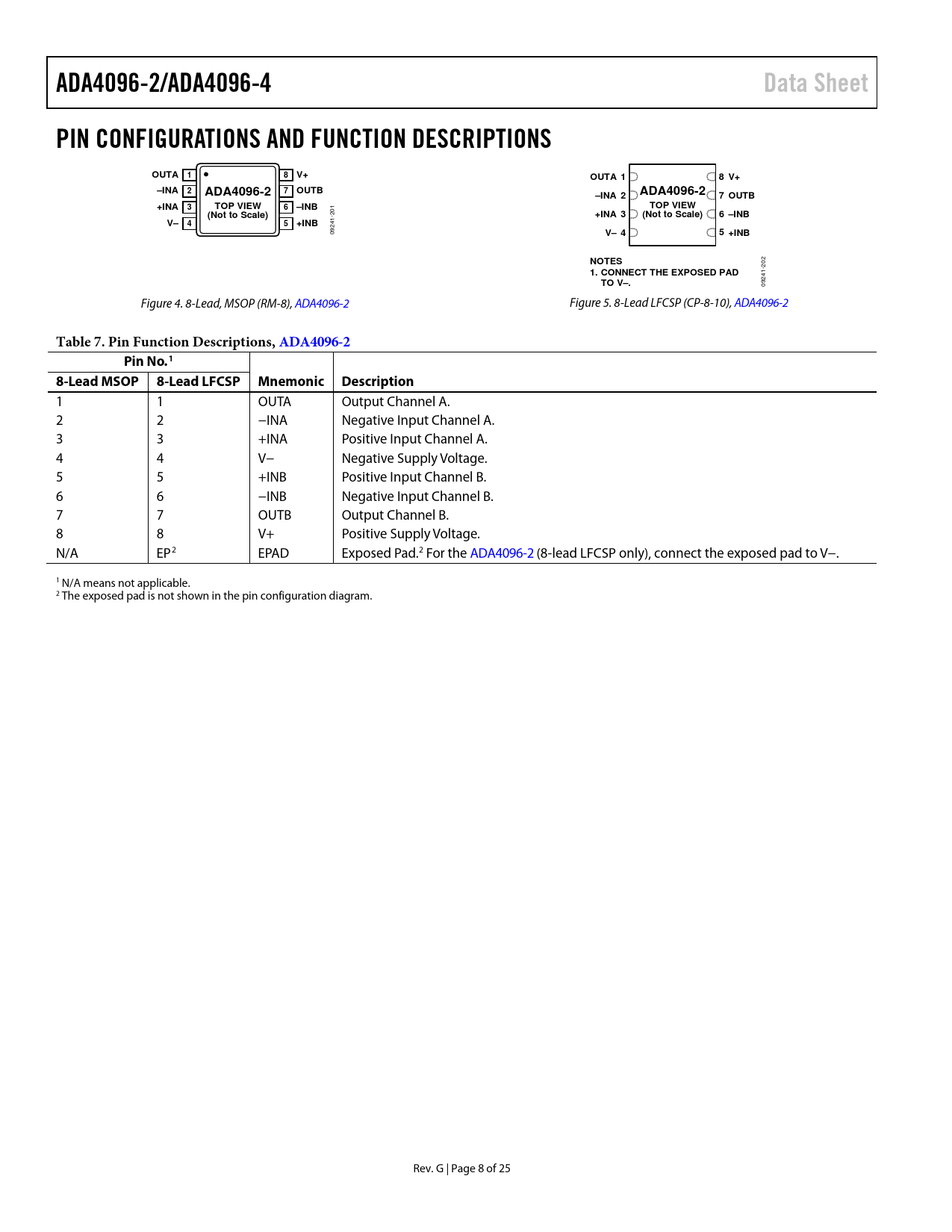

ADA4096-2/ADA4096-4 Data Sheet PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS OUTA 1 8 V+ OUTA 1 8 V+ –INA 2 7 OUTB ADA4096-2 ADA4096-2 –INA 2 7 OUTB +INA 3 TOP VIEW 6 –INB TOP VIEW (Not to Scale)
201
+INA 3 (Not to Scale) 6 –INB V– 4 5 +INB
09241-
V– 4 5 +INB NOTES
202
1. CONNECT THE EXPOSED PAD TO V–.
09241- Figure 4. 8-Lead, MSOP (RM-8), ADA4096-2 Figure 5. 8-Lead LFCSP (CP-8-10), ADA4096-2
Table 7. Pin Function Descriptions, ADA4096-2 Pin No.1 8-Lead MSOP 8-Lead LFCSP Mnemonic Description
1 1 OUTA Output Channel A. 2 2 −INA Negative Input Channel A. 3 3 +INA Positive Input Channel A. 4 4 V− Negative Supply Voltage. 5 5 +INB Positive Input Channel B. 6 6 −INB Negative Input Channel B. 7 7 OUTB Output Channel B. 8 8 V+ Positive Supply Voltage. N/A EP2 EPAD Exposed Pad.2 For the ADA4096-2 (8-lead LFCSP only), connect the exposed pad to V−. 1 N/A means not applicable. 2 The exposed pad is not shown in the pin configuration diagram. Rev. G | Page 8 of 25 Document Outline Features Applications Pin Connection Diagrams General Description Revision History Specifications Electrical Specifications, VSY = ±1.5 V Electrical Specifications, VSY = ±5 V Electrical Specifications, VSY = ±15 V Absolute Maximum Ratings Thermal Resistance ESD Caution Pin Configurations and Function Descriptions Typical Performance Characteristics ±1.5 V Characteristics ±5 V Characteristics ±15 V Characteristics Comparative Voltage and Variable Voltage Graphs Theory of Operation Input Stage Phase Inversion Input Overvoltage Protection Comparator Operation Outline Dimensions Ordering Guide Automotive Products
