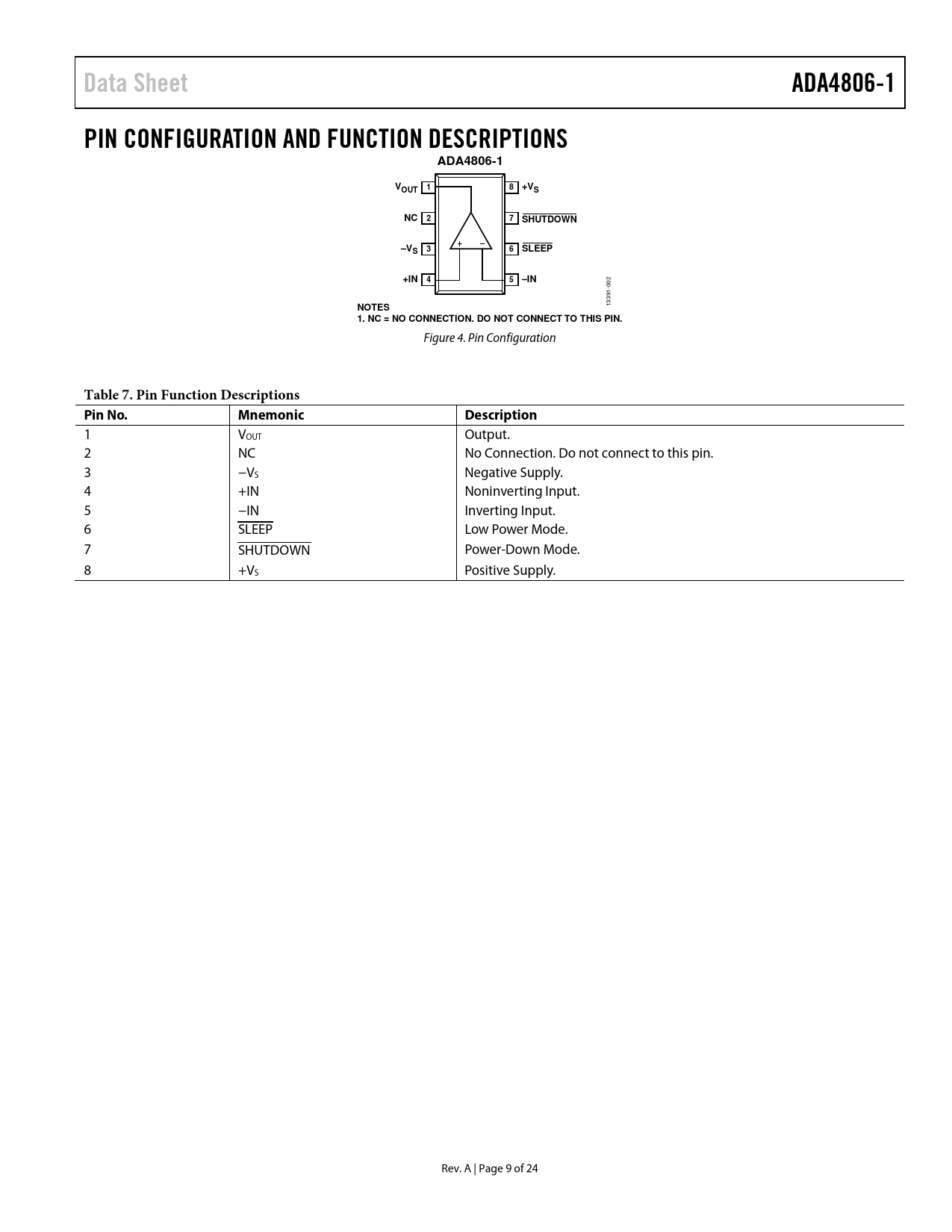

Data SheetADA4806-1PIN CONFIGURATION AND FUNCTION DESCRIPTIONSADA4806-1VOUT 18+VSNC27SHUTDOWN–VS 36SLEEP+IN45–IN 002 NOTES 13391- 1. NC = NO CONNECTION. DO NOT CONNECT TO THIS PIN. Figure 4. Pin Configuration Table 7. Pin Function Descriptions Pin No.MnemonicDescription 1 VOUT Output. 2 NC No Connection. Do not connect to this pin. 3 −VS Negative Supply. 4 +IN Noninverting Input. 5 −IN Inverting Input. 6 SLEEP Low Power Mode. 7 SHUTDOWN Power-Down Mode. 8 +VS Positive Supply. Rev. A | Page 9 of 24 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION TYPICAL APPLICATIONS CIRCUIT TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ±5 V SUPPLY 5 V SUPPLY 3 V SUPPLY ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE MAXIMUM POWER DISSIPATION ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS THEORY OF OPERATION AMPLIFIER DESCRIPTION INPUT PROTECTION SHUTDOWN/SLEEP MODE OPERATION NOISE CONSIDERATIONS APPLICATIONS INFORMATION SLEW ENHANCEMENT EFFECT OF FEEDBACK RESISTOR ON FREQUENCY RESPONSE COMPENSATING PEAKING IN LARGE SIGNAL FREQUENCY RESPONSE DRIVING LOW POWER, HIGH RESOLUTION SUCCESSIVE APPROXIMATION REGISTER (SAR) ADCs DYNAMIC POWER SCALING SINGLE-ENDED TO DIFFERENTIAL CONVERSION LAYOUT CONSIDERATIONS Ground Plane Power Supply Bypassing OUTLINE DIMENSIONS ORDERING GUIDE
