Data Sheet. ADA4505-1/ADA4505-2/ADA4505-4. SPECIFICATIONS ELECTRICAL CHARACTERISTICS—1.8 V OPERATION. Table 1. Parameter

Data Sheet ADA4505-1/ADA4505-2/ADA4505-4 SPECIFICATIONS ELECTRICAL CHARACTERISTICS—1.8 V OPERATION Table 1 Parameter

Modelllinie für dieses Datenblatt

Textversion des Dokuments

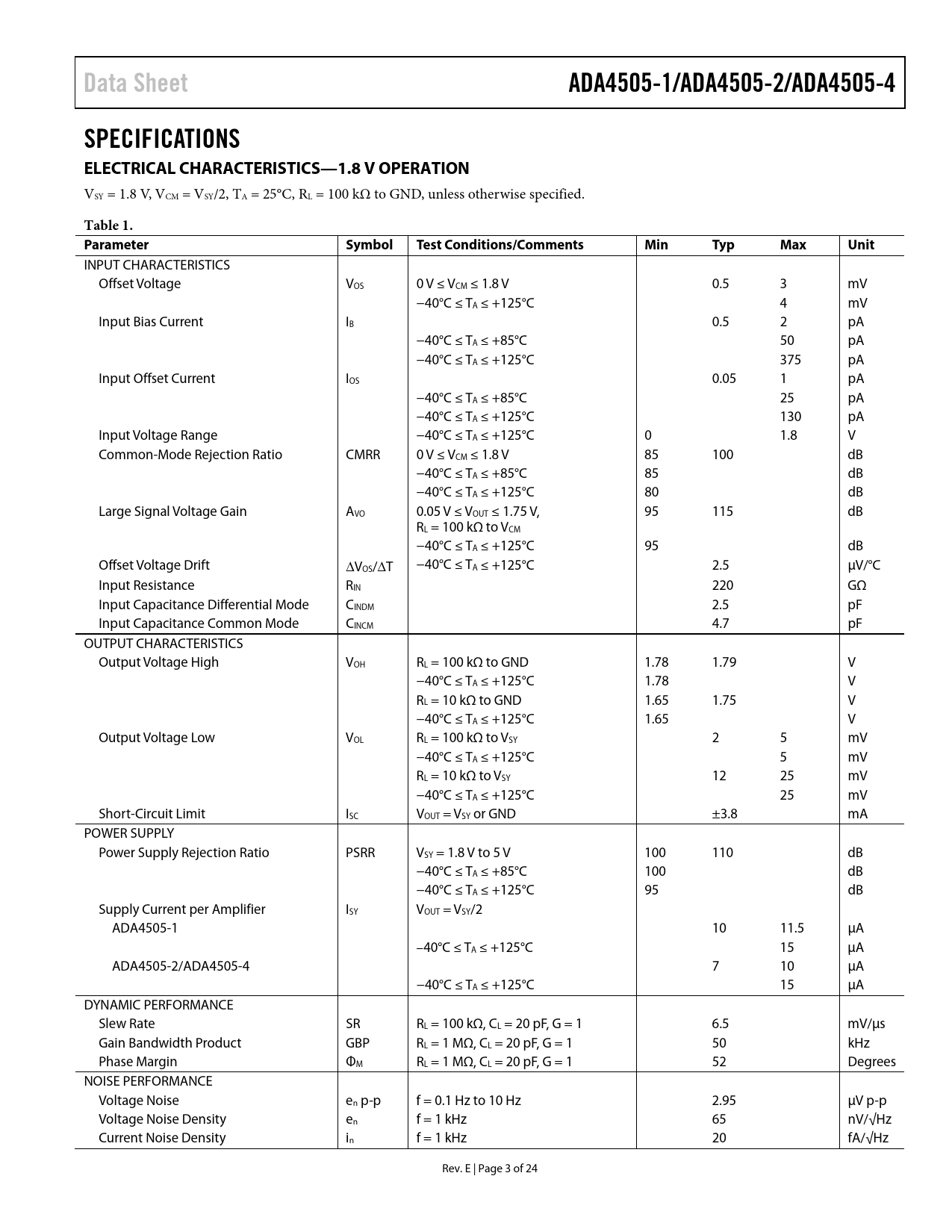

Data Sheet ADA4505-1/ADA4505-2/ADA4505-4 SPECIFICATIONS ELECTRICAL CHARACTERISTICS—1.8 V OPERATION
VSY = 1.8 V, VCM = VSY/2, TA = 25°C, RL = 100 kΩ to GND, unless otherwise specified.
Table 1. Parameter Symbol Test Conditions/Comments Min Typ Max Unit
INPUT CHARACTERISTICS Offset Voltage VOS 0 V ≤ VCM ≤ 1.8 V 0.5 3 mV −40°C ≤ TA ≤ +125°C 4 mV Input Bias Current IB 0.5 2 pA −40°C ≤ TA ≤ +85°C 50 pA −40°C ≤ TA ≤ +125°C 375 pA Input Offset Current IOS 0.05 1 pA −40°C ≤ TA ≤ +85°C 25 pA −40°C ≤ TA ≤ +125°C 130 pA Input Voltage Range −40°C ≤ TA ≤ +125°C 0 1.8 V Common-Mode Rejection Ratio CMRR 0 V ≤ VCM ≤ 1.8 V 85 100 dB −40°C ≤ TA ≤ +85°C 85 dB −40°C ≤ TA ≤ +125°C 80 dB Large Signal Voltage Gain AVO 0.05 V ≤ VOUT ≤ 1.75 V, 95 115 dB RL = 100 kΩ to VCM −40°C ≤ TA ≤ +125°C 95 dB Offset Voltage Drift ∆VOS/∆T −40°C ≤ TA ≤ +125°C 2.5 µV/°C Input Resistance RIN 220 GΩ Input Capacitance Differential Mode CINDM 2.5 pF Input Capacitance Common Mode CINCM 4.7 pF OUTPUT CHARACTERISTICS Output Voltage High VOH RL = 100 kΩ to GND 1.78 1.79 V −40°C ≤ TA ≤ +125°C 1.78 V RL = 10 kΩ to GND 1.65 1.75 V −40°C ≤ TA ≤ +125°C 1.65 V Output Voltage Low VOL RL = 100 kΩ to VSY 2 5 mV −40°C ≤ TA ≤ +125°C 5 mV RL = 10 kΩ to VSY 12 25 mV −40°C ≤ TA ≤ +125°C 25 mV Short-Circuit Limit ISC VOUT = VSY or GND ±3.8 mA POWER SUPPLY Power Supply Rejection Ratio PSRR VSY = 1.8 V to 5 V 100 110 dB −40°C ≤ TA ≤ +85°C 100 dB −40°C ≤ TA ≤ +125°C 95 dB Supply Current per Amplifier ISY VOUT = VSY/2 ADA4505-1 10 11.5 µA –40°C ≤ TA ≤ +125°C 15 µA ADA4505-2/ADA4505-4 7 10 µA −40°C ≤ TA ≤ +125°C 15 µA DYNAMIC PERFORMANCE Slew Rate SR RL = 100 kΩ, CL = 20 pF, G = 1 6.5 mV/µs Gain Bandwidth Product GBP RL = 1 MΩ, CL = 20 pF, G = 1 50 kHz Phase Margin ΦM RL = 1 MΩ, CL = 20 pF, G = 1 52 Degrees NOISE PERFORMANCE Voltage Noise en p-p f = 0.1 Hz to 10 Hz 2.95 µV p-p Voltage Noise Density en f = 1 kHz 65 nV/√Hz Current Noise Density in f = 1 kHz 20 fA/√Hz Rev. E | Page 3 of 24 Document Outline Features Applications General Description Pin Configurations Revision History Specifications Electrical Characteristics—1.8 V Operation Electrical Characteristics—5 V Operation Absolute Maximum Ratings Thermal Resistance ESD Caution Typical Performance Characteristics Theory of Operation Applications Information Pulse Oximeter Current Source Four-Pole, Low-Pass Butterworth Filter for Glucose Monitor Outline Dimensions Ordering Guide
