ADA4528-1/ADA4528-2. Data Sheet. ABSOLUTE MAXIMUM RATINGS Table 4. THERMAL RESISTANCE. Parameter. Rating
Modelllinie für dieses Datenblatt
Textversion des Dokuments

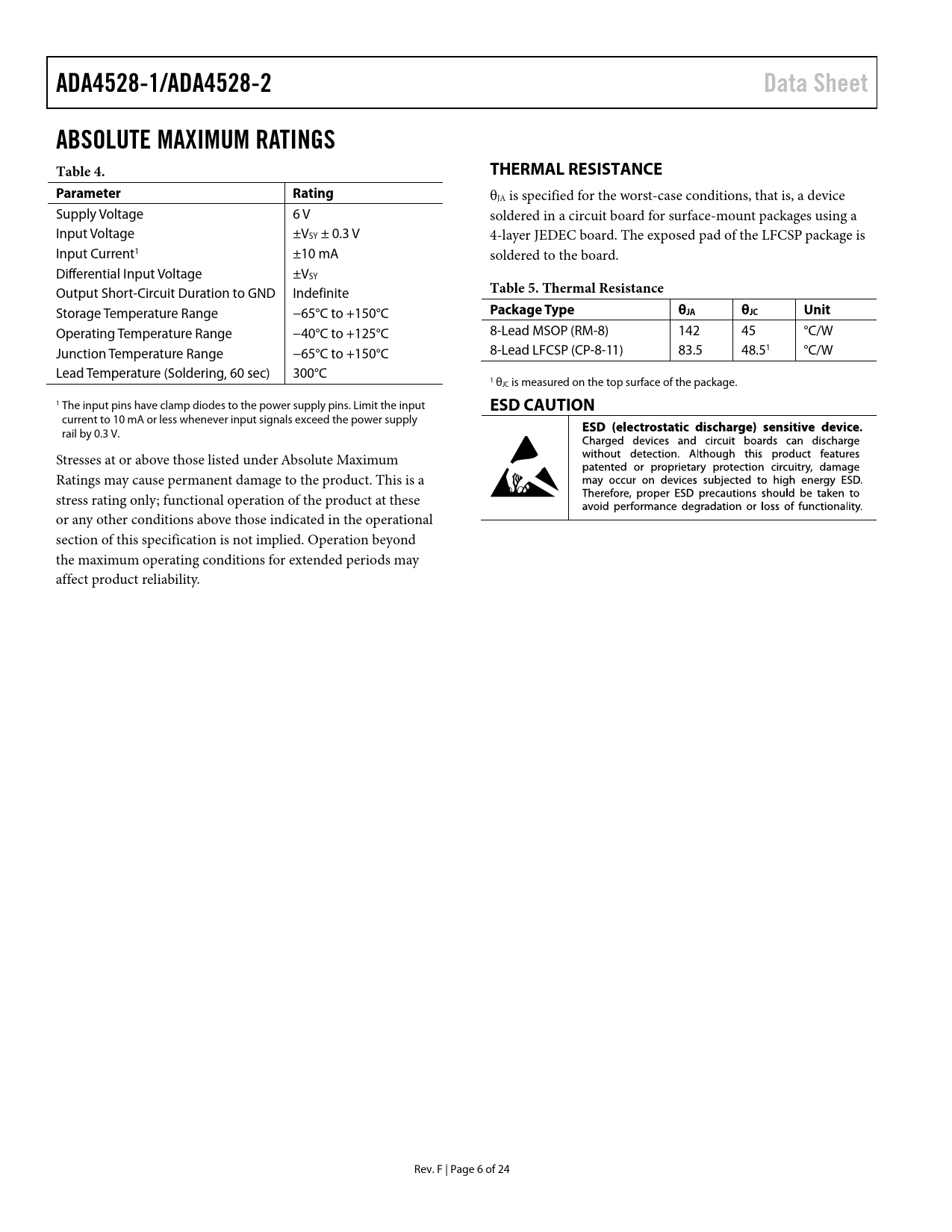

ADA4528-1/ADA4528-2 Data Sheet ABSOLUTE MAXIMUM RATINGS Table 4. THERMAL RESISTANCE Parameter Rating
θJA is specified for the worst-case conditions, that is, a device Supply Voltage 6 V soldered in a circuit board for surface-mount packages using a Input Voltage ±VSY ± 0.3 V 4-layer JEDEC board. The exposed pad of the LFCSP package is Input Current1 ±10 mA soldered to the board. Differential Input Voltage ±VSY Output Short-Circuit Duration to GND Indefinite
Table 5. Thermal Resistance
Storage Temperature Range −65°C to +150°C
Package Type θJA θJC Unit
Operating Temperature Range −40°C to +125°C 8-Lead MSOP (RM-8) 142 45 °C/W Junction Temperature Range −65°C to +150°C 8-Lead LFCSP (CP-8-11) 83.5 48.51 °C/W Lead Temperature (Soldering, 60 sec) 300°C 1 θ JC is measured on the top surface of the package. 1 The input pins have clamp diodes to the power supply pins. Limit the input
ESD CAUTION
current to 10 mA or less whenever input signals exceed the power supply rail by 0.3 V. Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a stress rating only; functional operation of the product at these or any other conditions above those indicated in the operational section of this specification is not implied. Operation beyond the maximum operating conditions for extended periods may affect product reliability. Rev. F | Page 6 of 24 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION PIN CONNECTION DIAGRAMS TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS—2.5 V OPERATION ELECTRICAL CHARACTERISTICS—5 V OPERATION ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATIONS AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS APPLICATIONS INFORMATION INPUT PROTECTION RAIL-TO-RAIL INPUT AND OUTPUT NOISE CONSIDERATIONS 1/f Noise Source Resistance Voltage Noise Density with Different Gain Configurations Residual Voltage Ripple COMPARATOR OPERATION PRINTED CIRCUIT BOARD LAYOUT OUTLINE DIMENSIONS ORDERING GUIDE
