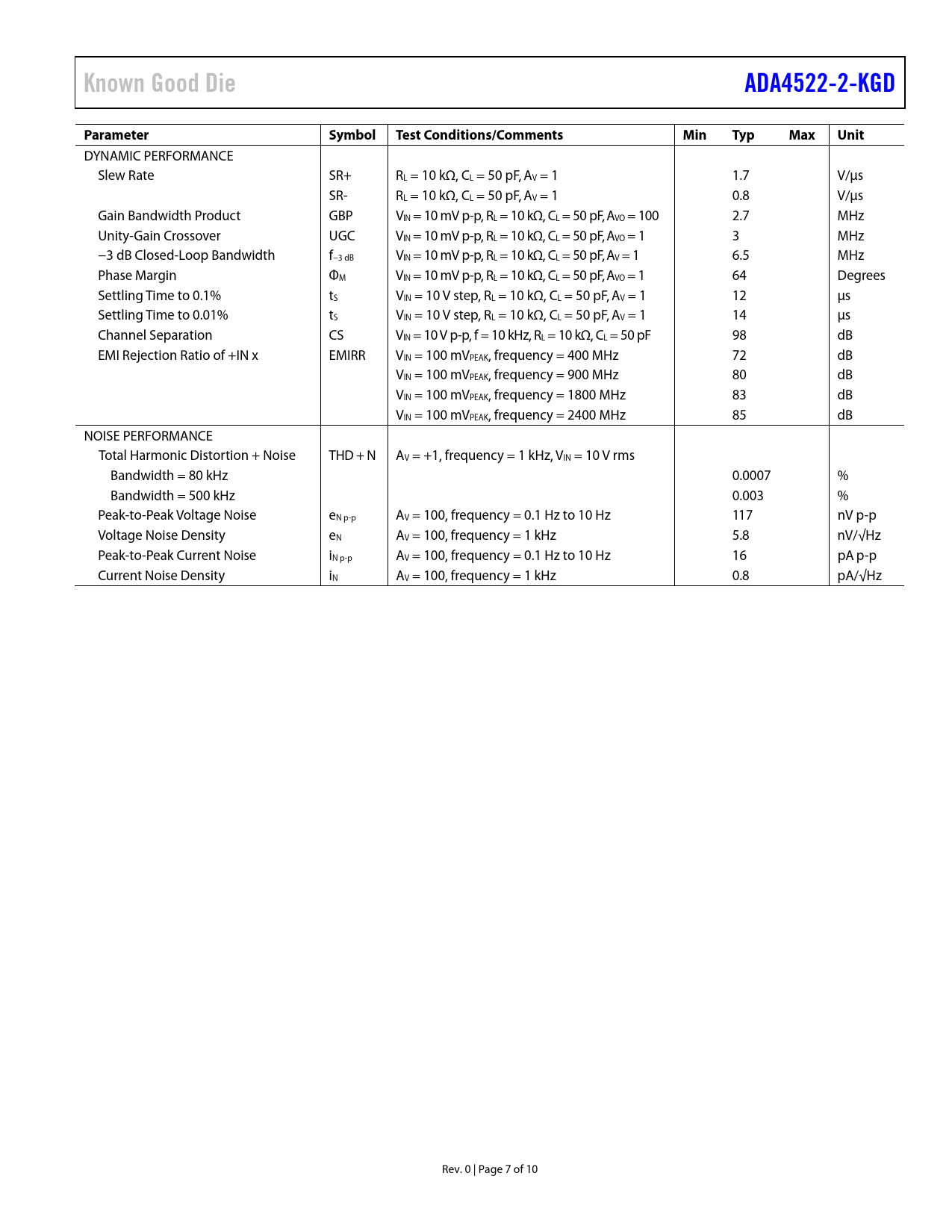

Known Good Die ADA4522-2-KGD Parameter Symbol Test Conditions/Comments Min Typ Max Unit
DYNAMIC PERFORMANCE Slew Rate SR+ RL = 10 kΩ, CL = 50 pF, AV = 1 1.7 V/μs SR- RL = 10 kΩ, CL = 50 pF, AV = 1 0.8 V/μs Gain Bandwidth Product GBP VIN = 10 mV p-p, RL = 10 kΩ, CL = 50 pF, AVO = 100 2.7 MHz Unity-Gain Crossover UGC VIN = 10 mV p-p, RL = 10 kΩ, CL = 50 pF, AVO = 1 3 MHz −3 dB Closed-Loop Bandwidth f−3 dB VIN = 10 mV p-p, RL = 10 kΩ, CL = 50 pF, AV = 1 6.5 MHz Phase Margin ΦM VIN = 10 mV p-p, RL = 10 kΩ, CL = 50 pF, AVO = 1 64 Degrees Settling Time to 0.1% tS VIN = 10 V step, RL = 10 kΩ, CL = 50 pF, AV = 1 12 μs Settling Time to 0.01% tS VIN = 10 V step, RL = 10 kΩ, CL = 50 pF, AV = 1 14 μs Channel Separation CS VIN = 10 V p-p, f = 10 kHz, RL = 10 kΩ, CL = 50 pF 98 dB EMI Rejection Ratio of +IN x EMIRR VIN = 100 mVPEAK, frequency = 400 MHz 72 dB VIN = 100 mVPEAK, frequency = 900 MHz 80 dB VIN = 100 mVPEAK, frequency = 1800 MHz 83 dB VIN = 100 mVPEAK, frequency = 2400 MHz 85 dB NOISE PERFORMANCE Total Harmonic Distortion + Noise THD + N AV = +1, frequency = 1 kHz, VIN = 10 V rms Bandwidth = 80 kHz 0.0007 % Bandwidth = 500 kHz 0.003 % Peak-to-Peak Voltage Noise eN p-p AV = 100, frequency = 0.1 Hz to 10 Hz 117 nV p-p Voltage Noise Density eN AV = 100, frequency = 1 kHz 5.8 nV/√Hz Peak-to-Peak Current Noise iN p-p AV = 100, frequency = 0.1 Hz to 10 Hz 16 pA p-p Current Noise Density iN AV = 100, frequency = 1 kHz 0.8 pA/√Hz Rev. 0 | Page 7 of 10 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL CHARACTERISTICS—5.0 V OPERATION ELECTRICAL CHARACTERISTICS—30 V OPERATION ELECTRICAL CHARACTERISTICS—55 V OPERATION ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
