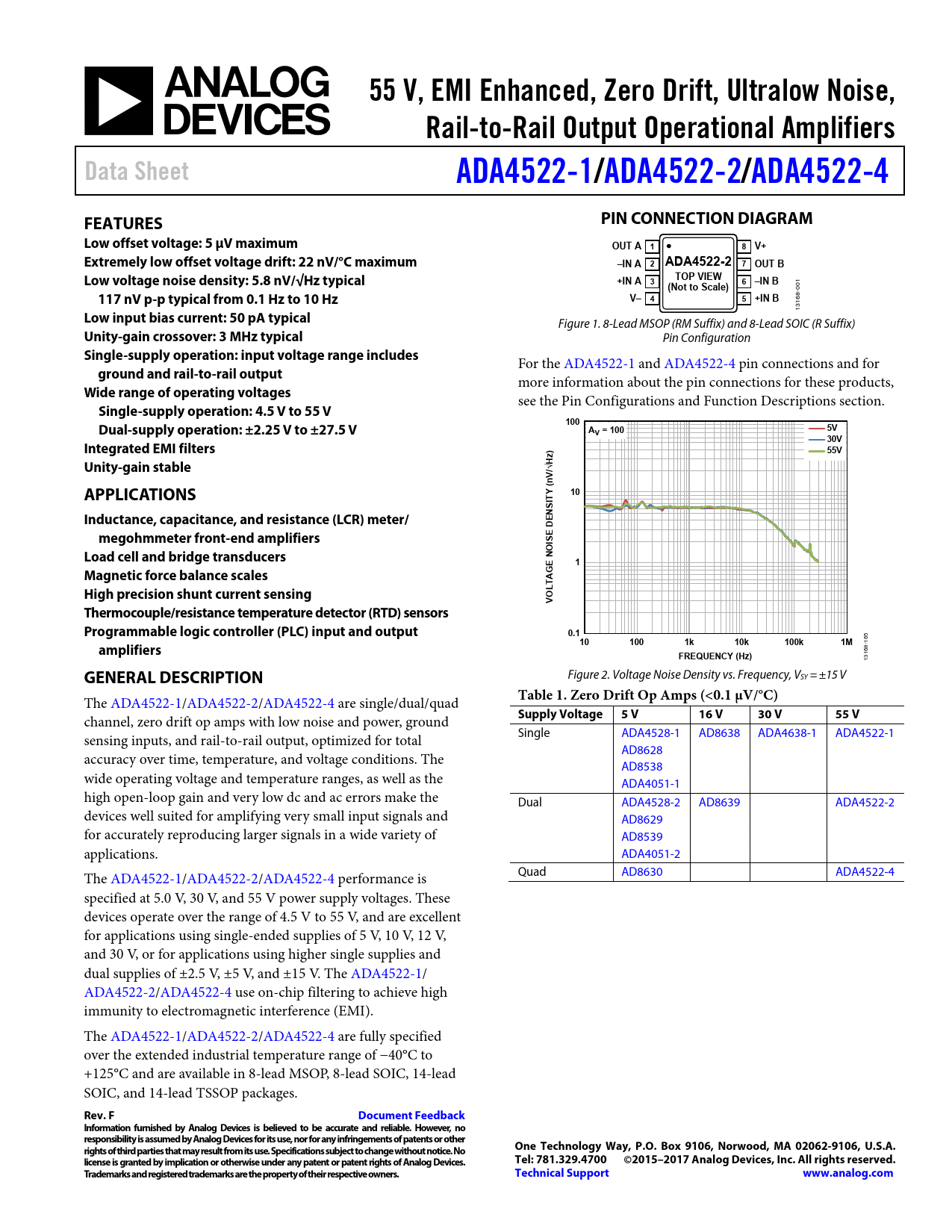

55 V, EMI Enhanced, Zero Drift, Ultralow Noise, Rail-to-Rail Output Operational Amplifiers Data Sheet ADA4522-1 /ADA4522-2 /ADA4522-4 FEATURES PIN CONNECTION DIAGRAM Low offset voltage: 5 μV maximum OUT A 1 8 V+ Extremely low offset voltage drift: 22 nV/°C maximum –IN A 2 ADA4522-2 7 OUT B Low voltage noise density: 5.8 nV/√Hz typical +IN A TOP VIEW 3 6 –IN B (Not to Scale)
001
117 nV p-p typical from 0.1 Hz to 10 Hz V– 4 5 +IN B
168- 13
Low input bias current: 50 pA typical
Figure 1. 8-Lead MSOP (RM Suffix) and 8-Lead SOIC (R Suffix)
Unity-gain crossover: 3 MHz typical
Pin Configuration
Single-supply operation: input voltage range includes
For the ADA4522-1 and ADA4522-4 pin connections and for
ground and rail-to-rail output
more information about the pin connections for these products,
Wide range of operating voltages
see the Pin Configurations and Function Descriptions section.
Single-supply operation: 4.5 V to 55 V 100 Dual-supply operation: ±2.25 V to ±27.5 V AV = 100 5V 30V Integrated EMI filters ) 55V Unity-gain stable /√Hz V n ( APPLICATIONS Y 10 IT NS Inductance, capacitance, and resistance (LCR) meter/ E D E megohmmeter front-end amplifiers IS Load cell and bridge transducers NO E 1 Magnetic force balance scales AG T L High precision shunt current sensing O V Thermocouple/resistance temperature detector (RTD) sensors Programmable logic controller (PLC) input and output 0.110 100 1k 10k 100k 1M
165
amplifiers
68-
FREQUENCY (Hz)
31 1
GENERAL DESCRIPTION
Figure 2. Voltage Noise Density vs. Frequency, VSY = ±15 V
Table 1. Zero Drift Op Amps (<0.1 μV/°C)
The ADA4522-1/ADA4522-2/ADA4522-4 are single/dual/quad
Supply Voltage 5 V 16 V 30 V 55 V
channel, zero drift op amps with low noise and power, ground Single ADA4528-1 AD8638 ADA4638-1 ADA4522-1 sensing inputs, and rail-to-rail output, optimized for total AD8628 accuracy over time, temperature, and voltage conditions. The AD8538 wide operating voltage and temperature ranges, as well as the ADA4051-1 high open-loop gain and very low dc and ac errors make the Dual ADA4528-2 AD8639 ADA4522-2 devices well suited for amplifying very small input signals and AD8629 for accurately reproducing larger signals in a wide variety of AD8539 applications. ADA4051-2 Quad AD8630 ADA4522-4 The ADA4522-1/ADA4522-2/ADA4522-4 performance is specified at 5.0 V, 30 V, and 55 V power supply voltages. These devices operate over the range of 4.5 V to 55 V, and are excellent for applications using single-ended supplies of 5 V, 10 V, 12 V, and 30 V, or for applications using higher single supplies and dual supplies of ±2.5 V, ±5 V, and ±15 V. The ADA4522-1/ ADA4522-2/ADA4522-4 use on-chip filtering to achieve high immunity to electromagnetic interference (EMI). The ADA4522-1/ADA4522-2/ADA4522-4 are fully specified over the extended industrial temperature range of −40°C to +125°C and are available in 8-lead MSOP, 8-lead SOIC, 14-lead SOIC, and 14-lead TSSOP packages.
