Datasheet NCP500, NCV500 (ON Semiconductor) - 5
| Hersteller | ON Semiconductor |
| Beschreibung | Voltage Regulator - CMOS, Low Noise, Low-Dropout 150 mA |
| Seiten / Seite | 18 / 5 — NCP500, NCV500. ELECTRICAL CHARACTERISTICS. Characteristic. Symbol. Min. … |
| Revision | 22 |
| Dateiformat / Größe | PDF / 199 Kb |
| Dokumentensprache | Englisch |

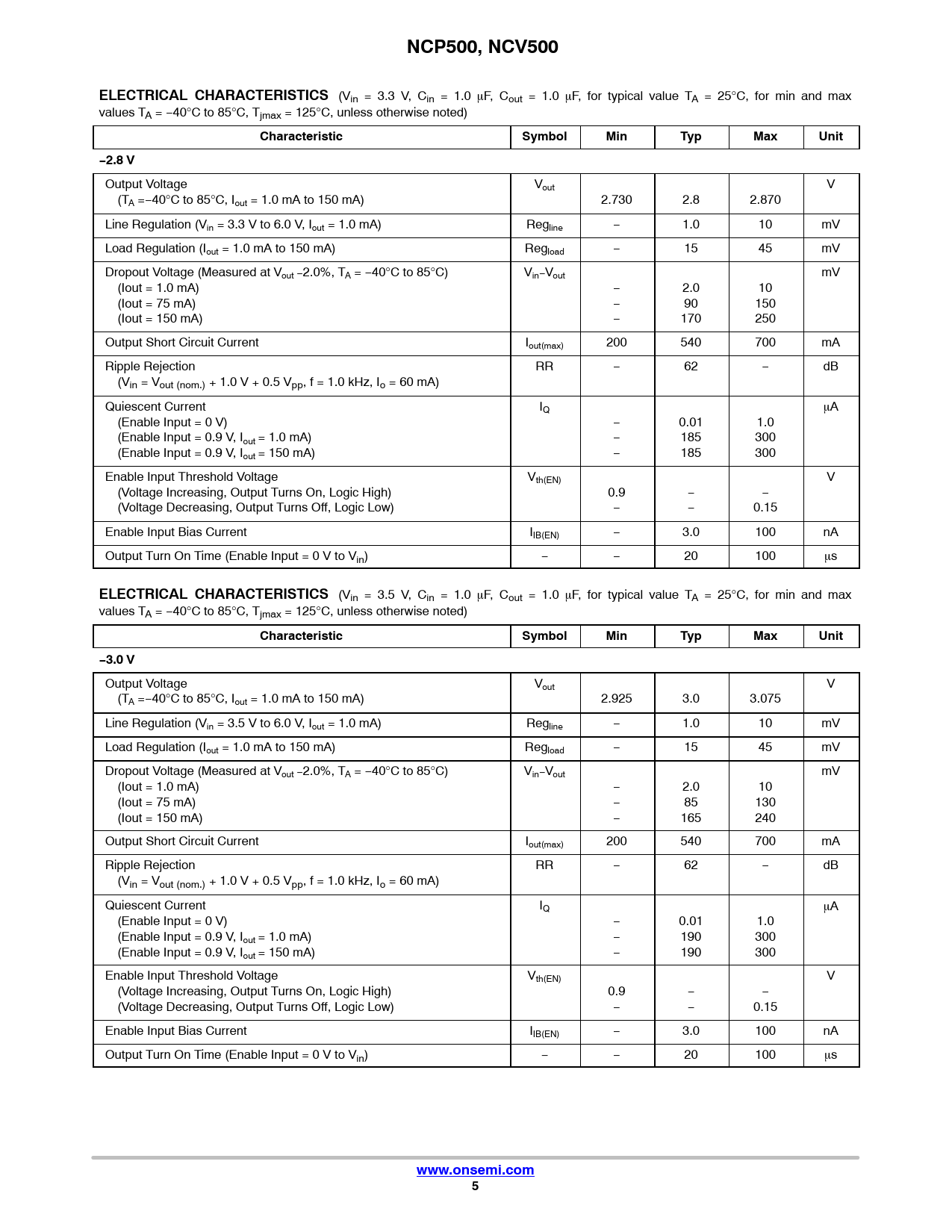

NCP500, NCV500. ELECTRICAL CHARACTERISTICS. Characteristic. Symbol. Min. Typ. Max. Unit. −2.8 V. −3.0 V. www.onsemi.com
Modelllinie für dieses Datenblatt
- NCP500SN185T1G NCP500SN18T1G NCP500SN25T1G NCP500SN26T1G NCP500SN27T1G NCP500SN28T1G NCP500SN30T1G NCP500SN30T2G NCP500SN33T1G NCP500SN50T1G NCP500SQL18T1G NCP500SQL25T1G NCP500SQL27T1G NCP500SQL28T1G NCP500SQL30T1G NCP500SQL33T1G NCP500SQL50T1G NCV500SN185T1G NCV500SN18T1G NCV500SN28T1G NCV500SN33T1G
Textversion des Dokuments
NCP500, NCV500 ELECTRICAL CHARACTERISTICS
(Vin = 3.3 V, Cin = 1.0 mF, Cout = 1.0 mF, for typical value TA = 25°C, for min and max values TA = −40°C to 85°C, Tjmax = 125°C, unless otherwise noted)
Characteristic Symbol Min Typ Max Unit −2.8 V
Output Voltage Vout V (TA =−40°C to 85°C, Iout = 1.0 mA to 150 mA) 2.730 2.8 2.870 Line Regulation (Vin = 3.3 V to 6.0 V, Iout = 1.0 mA) Regline − 1.0 10 mV Load Regulation (Iout = 1.0 mA to 150 mA) Regload − 15 45 mV Dropout Voltage (Measured at Vout −2.0%, TA = −40°C to 85°C) Vin−Vout mV (Iout = 1.0 mA) − 2.0 10 (Iout = 75 mA) − 90 150 (Iout = 150 mA) − 170 250 Output Short Circuit Current Iout(max) 200 540 700 mA Ripple Rejection RR − 62 − dB (Vin = Vout (nom.) + 1.0 V + 0.5 Vpp, f = 1.0 kHz, Io = 60 mA) Quiescent Current IQ mA (Enable Input = 0 V) − 0.01 1.0 (Enable Input = 0.9 V, Iout = 1.0 mA) − 185 300 (Enable Input = 0.9 V, Iout = 150 mA) − 185 300 Enable Input Threshold Voltage Vth(EN) V (Voltage Increasing, Output Turns On, Logic High) 0.9 − − (Voltage Decreasing, Output Turns Off, Logic Low) − − 0.15 Enable Input Bias Current IIB(EN) − 3.0 100 nA Output Turn On Time (Enable Input = 0 V to Vin) − − 20 100 ms
ELECTRICAL CHARACTERISTICS
(Vin = 3.5 V, Cin = 1.0 mF, Cout = 1.0 mF, for typical value TA = 25°C, for min and max values TA = −40°C to 85°C, Tjmax = 125°C, unless otherwise noted)
Characteristic Symbol Min Typ Max Unit −3.0 V
Output Voltage Vout V (TA =−40°C to 85°C, Iout = 1.0 mA to 150 mA) 2.925 3.0 3.075 Line Regulation (Vin = 3.5 V to 6.0 V, Iout = 1.0 mA) Regline − 1.0 10 mV Load Regulation (Iout = 1.0 mA to 150 mA) Regload − 15 45 mV Dropout Voltage (Measured at Vout −2.0%, TA = −40°C to 85°C) Vin−Vout mV (Iout = 1.0 mA) − 2.0 10 (Iout = 75 mA) − 85 130 (Iout = 150 mA) − 165 240 Output Short Circuit Current Iout(max) 200 540 700 mA Ripple Rejection RR − 62 − dB (Vin = Vout (nom.) + 1.0 V + 0.5 Vpp, f = 1.0 kHz, Io = 60 mA) Quiescent Current IQ mA (Enable Input = 0 V) − 0.01 1.0 (Enable Input = 0.9 V, Iout = 1.0 mA) − 190 300 (Enable Input = 0.9 V, Iout = 150 mA) − 190 300 Enable Input Threshold Voltage Vth(EN) V (Voltage Increasing, Output Turns On, Logic High) 0.9 − − (Voltage Decreasing, Output Turns Off, Logic Low) − − 0.15 Enable Input Bias Current IIB(EN) − 3.0 100 nA Output Turn On Time (Enable Input = 0 V to Vin) − − 20 100 ms
www.onsemi.com 5
(Vin = 3.3 V, Cin = 1.0 mF, Cout = 1.0 mF, for typical value TA = 25°C, for min and max values TA = −40°C to 85°C, Tjmax = 125°C, unless otherwise noted)
Characteristic Symbol Min Typ Max Unit −2.8 V
Output Voltage Vout V (TA =−40°C to 85°C, Iout = 1.0 mA to 150 mA) 2.730 2.8 2.870 Line Regulation (Vin = 3.3 V to 6.0 V, Iout = 1.0 mA) Regline − 1.0 10 mV Load Regulation (Iout = 1.0 mA to 150 mA) Regload − 15 45 mV Dropout Voltage (Measured at Vout −2.0%, TA = −40°C to 85°C) Vin−Vout mV (Iout = 1.0 mA) − 2.0 10 (Iout = 75 mA) − 90 150 (Iout = 150 mA) − 170 250 Output Short Circuit Current Iout(max) 200 540 700 mA Ripple Rejection RR − 62 − dB (Vin = Vout (nom.) + 1.0 V + 0.5 Vpp, f = 1.0 kHz, Io = 60 mA) Quiescent Current IQ mA (Enable Input = 0 V) − 0.01 1.0 (Enable Input = 0.9 V, Iout = 1.0 mA) − 185 300 (Enable Input = 0.9 V, Iout = 150 mA) − 185 300 Enable Input Threshold Voltage Vth(EN) V (Voltage Increasing, Output Turns On, Logic High) 0.9 − − (Voltage Decreasing, Output Turns Off, Logic Low) − − 0.15 Enable Input Bias Current IIB(EN) − 3.0 100 nA Output Turn On Time (Enable Input = 0 V to Vin) − − 20 100 ms
ELECTRICAL CHARACTERISTICS
(Vin = 3.5 V, Cin = 1.0 mF, Cout = 1.0 mF, for typical value TA = 25°C, for min and max values TA = −40°C to 85°C, Tjmax = 125°C, unless otherwise noted)
Characteristic Symbol Min Typ Max Unit −3.0 V
Output Voltage Vout V (TA =−40°C to 85°C, Iout = 1.0 mA to 150 mA) 2.925 3.0 3.075 Line Regulation (Vin = 3.5 V to 6.0 V, Iout = 1.0 mA) Regline − 1.0 10 mV Load Regulation (Iout = 1.0 mA to 150 mA) Regload − 15 45 mV Dropout Voltage (Measured at Vout −2.0%, TA = −40°C to 85°C) Vin−Vout mV (Iout = 1.0 mA) − 2.0 10 (Iout = 75 mA) − 85 130 (Iout = 150 mA) − 165 240 Output Short Circuit Current Iout(max) 200 540 700 mA Ripple Rejection RR − 62 − dB (Vin = Vout (nom.) + 1.0 V + 0.5 Vpp, f = 1.0 kHz, Io = 60 mA) Quiescent Current IQ mA (Enable Input = 0 V) − 0.01 1.0 (Enable Input = 0.9 V, Iout = 1.0 mA) − 190 300 (Enable Input = 0.9 V, Iout = 150 mA) − 190 300 Enable Input Threshold Voltage Vth(EN) V (Voltage Increasing, Output Turns On, Logic High) 0.9 − − (Voltage Decreasing, Output Turns Off, Logic Low) − − 0.15 Enable Input Bias Current IIB(EN) − 3.0 100 nA Output Turn On Time (Enable Input = 0 V to Vin) − − 20 100 ms
www.onsemi.com 5
