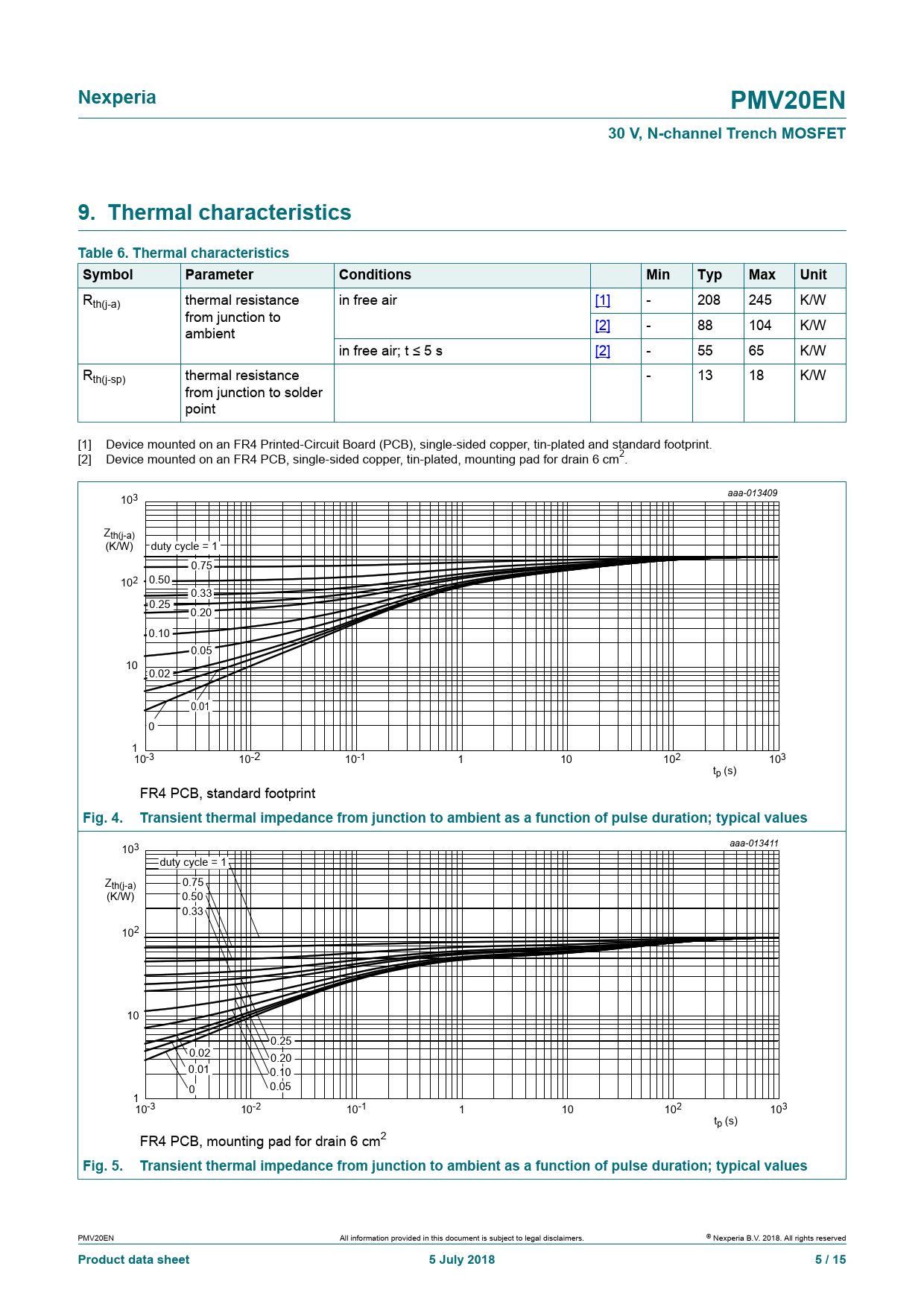

Nexperia PMV20EN 30 V, N-channel Trench MOSFET 9. Thermal characteristics Table 6. Thermal characteristics Symbol Parameter Conditions Min Typ Max Unit
Rth(j-a) thermal resistance in free air [1] - 208 245 K/W from junction to [2] - 88 104 K/W ambient in free air; t ≤ 5 s [2] - 55 65 K/W Rth(j-sp) thermal resistance - 13 18 K/W from junction to solder point [1] Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard footprint. [2] Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for drain 6 cm2. aaa-013409 103 Zth(j-a) (K/W) duty cycle = 1 0.75 102 0.50 0.33 0.25 0.20 0.10 0.05 10 0.02 0.01 0 110-3 10-2 10-1 1 102 103 10 tp (s) FR4 PCB, standard footprint
Fig. 4. Transient thermal impedance from junction to ambient as a function of pulse duration; typical values
aaa-013411 103 duty cycle = 1 Zth(j-a) 0.75 (K/W) 0.50 0.33 102 10 0.25 0.02 0.20 0.01 0.10 0 0.05 110-3 10-2 10-1 1 102 103 10 tp (s) FR4 PCB, mounting pad for drain 6 cm2
Fig. 5. Transient thermal impedance from junction to ambient as a function of pulse duration; typical values
PMV20EN All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2018. Al rights reserved
Product data sheet 5 July 2018 5 / 15
