Nexperia MMBZxAL series Low capacitance unidirectional double ESD protection diodes

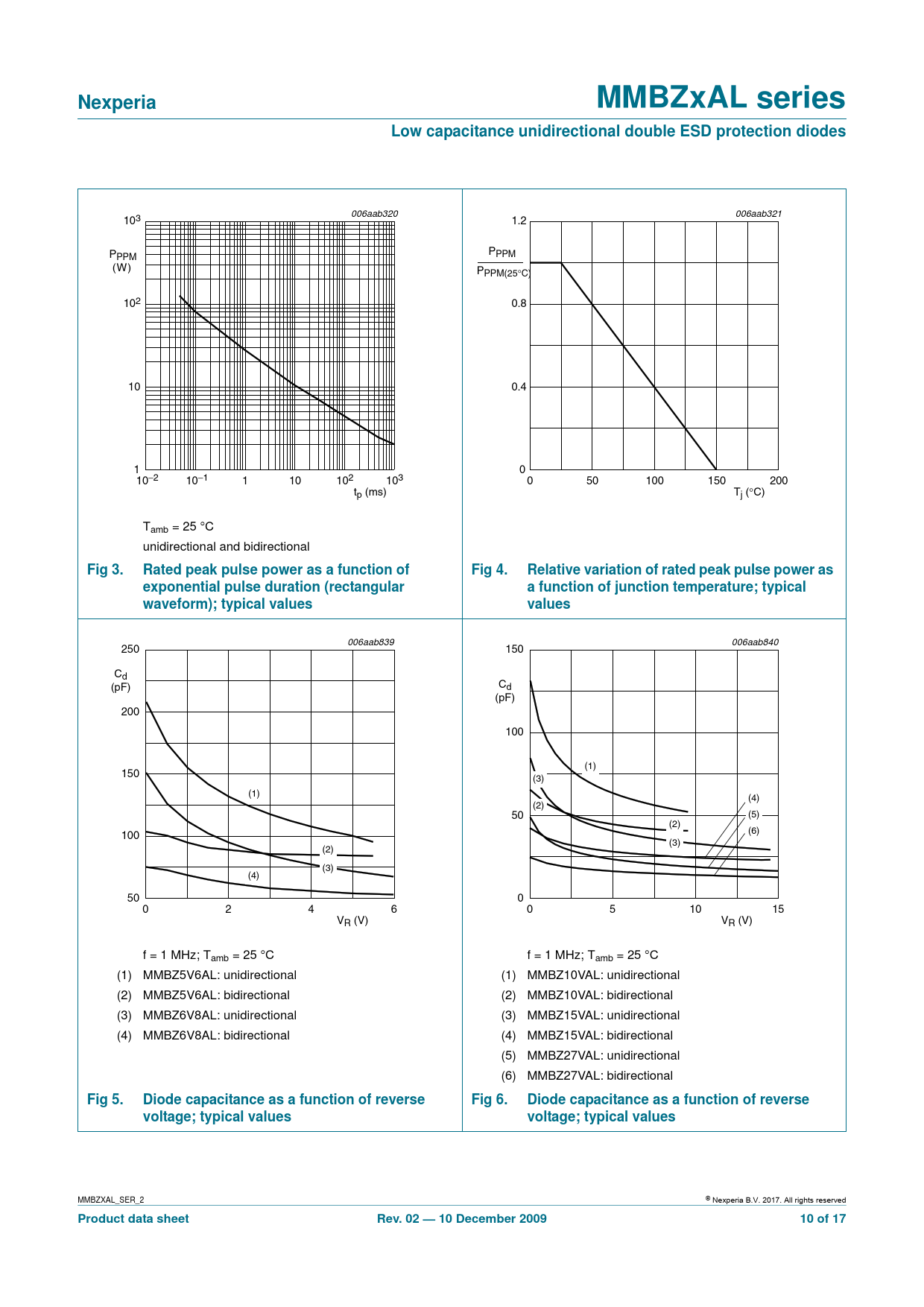

006aab320 006aab321 103 1.2 P P PPM PPM (W) PPPM(25°C) 102 0.8 10 0.4 1 0 10−2 1 103 102 10−1 10 0 50 100 150 200 tp (ms) Tj (°C) Tamb = 25 °C unidirectional and bidirectional
Fig 3. Rated peak pulse power as a function of Fig 4. Relative variation of rated peak pulse power as exponential pulse duration (rectangular a function of junction temperature; typical waveform); typical values values
006aab839 006aab840 250 150 Cd (pF) Cd (pF) 200 100 (1) 150 (3) (1) (4) (2) 50 (5) (2) (6) 100 (3) (2) (3) (4) 50 0 0 2 4 6 0 5 10 15 VR (V) VR (V) f = 1 MHz; Tamb = 25 °C f = 1 MHz; Tamb = 25 °C (1) MMBZ5V6AL: unidirectional (1) MMBZ10VAL: unidirectional (2) MMBZ5V6AL: bidirectional (2) MMBZ10VAL: bidirectional (3) MMBZ6V8AL: unidirectional (3) MMBZ15VAL: unidirectional (4) MMBZ6V8AL: bidirectional (4) MMBZ15VAL: bidirectional (5) MMBZ27VAL: unidirectional (6) MMBZ27VAL: bidirectional
Fig 5. Diode capacitance as a function of reverse Fig 6. Diode capacitance as a function of reverse voltage; typical values voltage; typical values
MMBZXAL_SER_2 © Nexperia B.V. 2017. All rights reserved
Product data sheet Rev. 02 — 10 December 2009 10 of 17
