Datasheet HSMS-282x (Broadcom) - 2
| Hersteller | Broadcom |
| Beschreibung | Surface Mount RF Schottky Barrier Diodes |
| Seiten / Seite | 15 / 2 — Pin Connections and Package Marking. Notes:. Absolute Maximum Ratings[1] … |
| Dateiformat / Größe | PDF / 1.5 Mb |
| Dokumentensprache | Englisch |

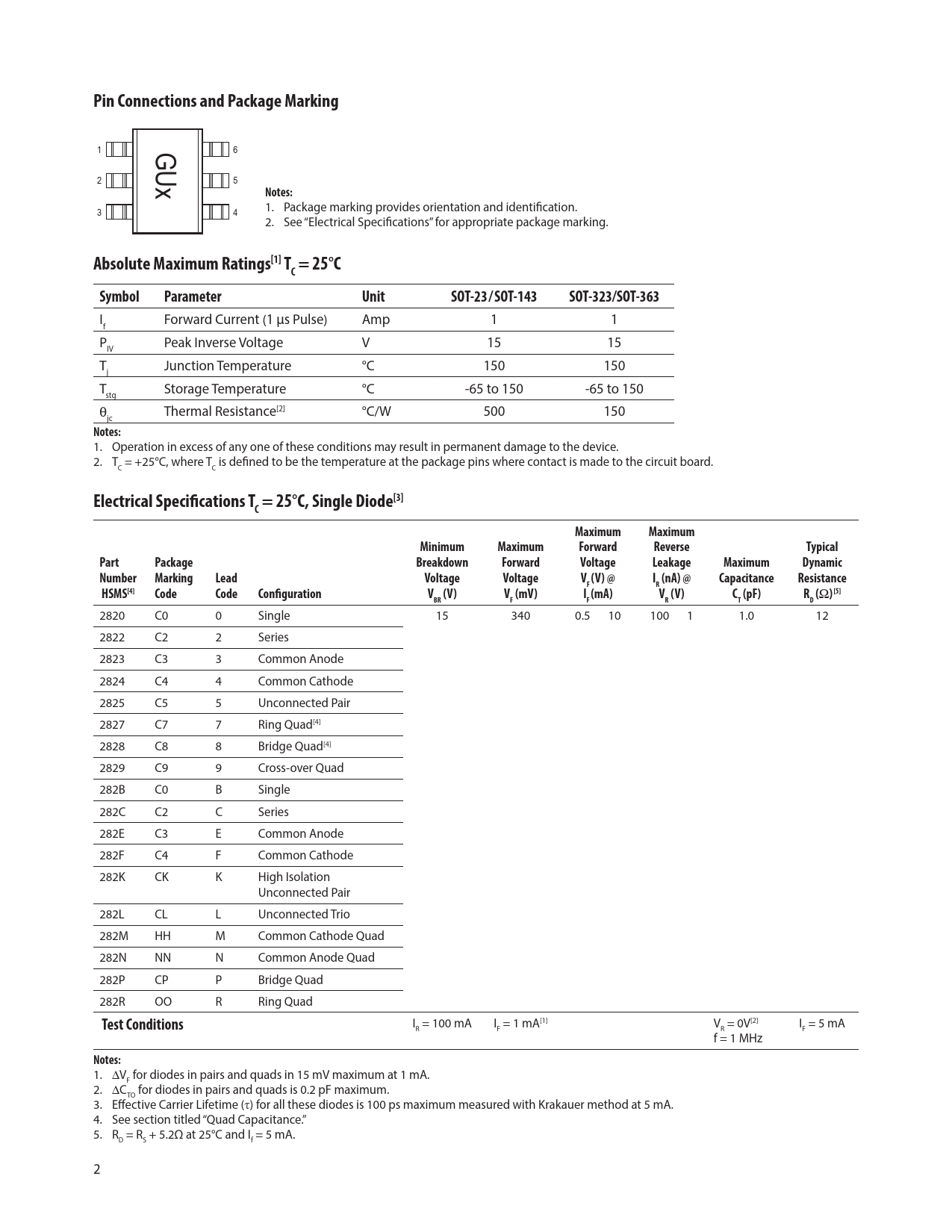

Pin Connections and Package Marking. Notes:. Absolute Maximum Ratings[1] T = 25°C. Symbol. Parameter. Unit. SOT-23/SOT-143
Modelllinie für dieses Datenblatt
- HSMS-2820-BLKG HSMS-2820-BLKG HSMS-2820-TR1G HSMS-2820-TR1G HSMS-2820-TR2G HSMS-2820-TR2G HSMS-2822-BLKG HSMS-2822-BLKG HSMS-2822-TR1G HSMS-2822-TR1G HSMS-2822-TR2G HSMS-2822-TR2G HSMS-2823-BLKG HSMS-2823-BLKG HSMS-2823-TR1G HSMS-2823-TR1G HSMS-2823-TR2G HSMS-2823-TR2G HSMS-2824-BLKG HSMS-2824-BLKG HSMS-2824-TR1G HSMS-2824-TR1G HSMS-2824-TR2G HSMS-2824-TR2G HSMS-2825-BLKG HSMS-2825-BLKG HSMS-2825-TR1G HSMS-2825-TR1G HSMS-2825-TR2G HSMS-2825-TR2G HSMS-2827-BLKG HSMS-2827-BLKG HSMS-2827-TR1G HSMS-2827-TR1G HSMS-2827-TR2G HSMS-2827-TR2G HSMS-2828-BLKG HSMS-2828-BLKG HSMS-2828-TR1G HSMS-2828-TR1G HSMS-2828-TR2G HSMS-2828-TR2G HSMS-2829-BLKG HSMS-2829-BLKG HSMS-2829-TR1G HSMS-2829-TR1G HSMS-2829-TR2G HSMS-2829-TR2G HSMS-282B-BLKG HSMS-282B-BLKG HSMS-282B-TR1G HSMS-282B-TR1G HSMS-282B-TR2G HSMS-282B-TR2G HSMS-282C-BLKG HSMS-282C-BLKG HSMS-282C-TR1G HSMS-282C-TR1G HSMS-282C-TR2G HSMS-282C-TR2G HSMS-282E-BLKG HSMS-282E-BLKG HSMS-282E-TR1G HSMS-282E-TR1G HSMS-282E-TR2G HSMS-282E-TR2G HSMS-282F-BLKG HSMS-282F-BLKG HSMS-282F-TR1G HSMS-282F-TR1G HSMS-282F-TR2G HSMS-282F-TR2G HSMS-282K-BLKG HSMS-282K-BLKG HSMS-282K-TR1G HSMS-282K-TR1G HSMS-282K-TR2G HSMS-282K-TR2G HSMS-282L-BLKG HSMS-282L-BLKG HSMS-282L-TR1G HSMS-282L-TR1G HSMS-282L-TR2G HSMS-282L-TR2G HSMS-282M-BLKG HSMS-282M-BLKG HSMS-282M-TR1G HSMS-282M-TR1G HSMS-282M-TR2G HSMS-282M-TR2G HSMS-282N-BLKG HSMS-282N-BLKG HSMS-282N-TR1G HSMS-282N-TR1G HSMS-282N-TR2G HSMS-282N-TR2G HSMS-282P-BLKG HSMS-282P-BLKG HSMS-282P-TR1G HSMS-282P-TR1G HSMS-282P-TR2G HSMS-282P-TR2G HSMS-282R-BLKG HSMS-282R-BLKG HSMS-282R-TR1G HSMS-282R-TR1G HSMS-282R-TR2G HSMS-282R-TR2G
Textversion des Dokuments
Pin Connections and Package Marking
1 GUx 6 2 5
Notes:
1. Package marking provides orientation and identification. 3 4 2. See “Electrical Specifications” for appropriate package marking.
Absolute Maximum Ratings[1] T = 25°C C Symbol Parameter Unit SOT-23/SOT-143 SOT-323/SOT-363
I Forward Current (1 µs Pulse) Amp 1 1 f P Peak Inverse Voltage V 15 15 IV T Junction Temperature °C 150 150 j T Storage Temperature °C ‑65 to 150 ‑65 to 150 stg θ Thermal Resistance[2] °C/W 500 150 jc
Notes:
1. Operation in excess of any one of these conditions may result in permanent damage to the device. 2. T = +25°C, where T is defined to be the temperature at the package pins where contact is made to the circuit board. C C
Electrical Specifications T = 25°C, Single Diode[3] C Maximum Maximum Minimum Maximum Forward Reverse Typical Part Package Breakdown Forward Voltage Leakage Maximum Dynamic Number Marking Lead Voltage Voltage V (V) @ I (nA) @ Capacitance Resistance F R HSMS[4] Code Code Configuration V (V) V (mV) I (mA) V (V) C (pF) R (
Ω
)[5] BR F F R T D
2820 C0 0 Single 15 340 0.5 10 100 1 1.0 12 2822 C2 2 Series 2823 C3 3 Common Anode 2824 C4 4 Common Cathode 2825 C5 5 Unconnected Pair 2827 C7 7 Ring Quad[4] 2828 C8 8 Bridge Quad[4] 2829 C9 9 Cross‑over Quad 282B C0 B Single 282C C2 C Series 282E C3 E Common Anode 282F C4 F Common Cathode 282K CK K High Isolation Unconnected Pair 282L CL L Unconnected Trio 282M HH M Common Cathode Quad 282N NN N Common Anode Quad 282P CP P Bridge Quad 282R OO R Ring Quad
Test Conditions
I = 100 mA I = 1 mA[1] V = 0V[2] I = 5 mA R F R F f = 1 MHz
Notes:
1. ∆V for diodes in pairs and quads in 15 mV maximum at 1 mA. F 2. ∆C for diodes in pairs and quads is 0.2 pF maximum. TO 3. Effective Carrier Lifetime (τ) for all these diodes is 100 ps maximum measured with Krakauer method at 5 mA. 4. See section titled “Quad Capacitance.” 5. R = R + 5.2Ω at 25°C and I = 5 mA. D S f 2
