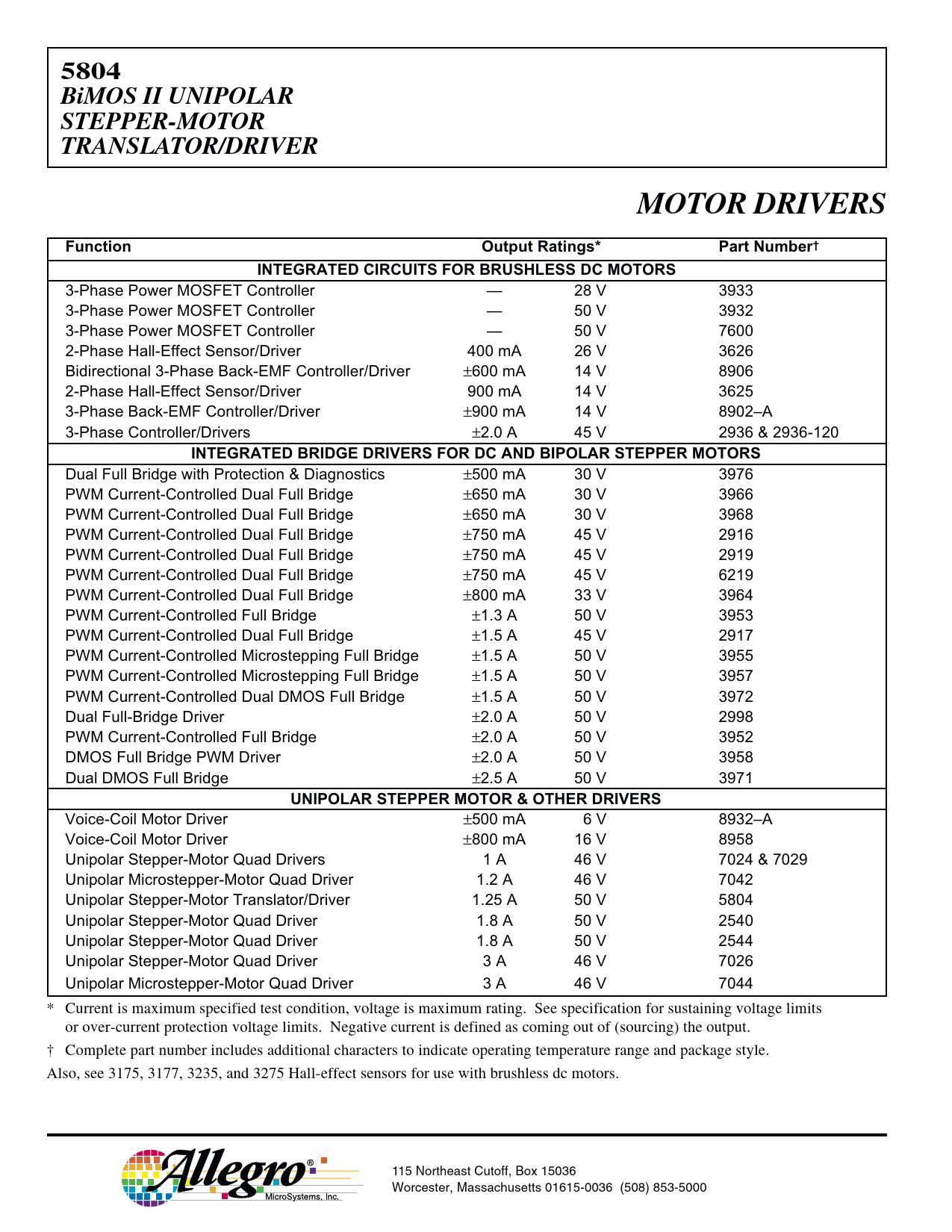

Datasheet 5804 (UCN5804B) (Allegro) - 8

5804 BiMOS II UNIPOLAR STEPPER-MOTOR TRANSLATOR/DRIVER MOTOR DRIVERS Function Output Ratings* Part Number† INTEGRATED CIRCUITS FOR BRUSHLESS DC MOTORS
3-Phase Power MOSFET Controller — 28 V 3933 3-Phase Power MOSFET Controller — 50 V 3932 3-Phase Power MOSFET Controller — 50 V 7600 2-Phase Hall-Effect Sensor/Driver 400 mA 26 V 3626 Bidirectional 3-Phase Back-EMF Controller/Driver ±600 mA 14 V 8906 2-Phase Hall-Effect Sensor/Driver 900 mA 14 V 3625 3-Phase Back-EMF Controller/Driver ±900 mA 14 V 8902–A 3-Phase Controller/Drivers ±2.0 A 45 V 2936 & 2936-120
INTEGRATED BRIDGE DRIVERS FOR DC AND BIPOLAR STEPPER MOTORS
Dual Full Bridge with Protection & Diagnostics ±500 mA 30 V 3976 PWM Current-Controlled Dual Full Bridge ±650 mA 30 V 3966 PWM Current-Controlled Dual Full Bridge ±650 mA 30 V 3968 PWM Current-Controlled Dual Full Bridge ±750 mA 45 V 2916 PWM Current-Controlled Dual Full Bridge ±750 mA 45 V 2919 PWM Current-Controlled Dual Full Bridge ±750 mA 45 V 6219 PWM Current-Controlled Dual Full Bridge ±800 mA 33 V 3964 PWM Current-Controlled Full Bridge ±1.3 A 50 V 3953 PWM Current-Controlled Dual Full Bridge ±1.5 A 45 V 2917 PWM Current-Controlled Microstepping Full Bridge ±1.5 A 50 V 3955 PWM Current-Controlled Microstepping Full Bridge ±1.5 A 50 V 3957 PWM Current-Controlled Dual DMOS Full Bridge ±1.5 A 50 V 3972 Dual Full-Bridge Driver ±2.0 A 50 V 2998 PWM Current-Controlled Full Bridge ±2.0 A 50 V 3952 DMOS Full Bridge PWM Driver ±2.0 A 50 V 3958 Dual DMOS Full Bridge ±2.5 A 50 V 3971
UNIPOLAR STEPPER MOTOR & OTHER DRIVERS
Voice-Coil Motor Driver ±500 mA 6 V 8932–A Voice-Coil Motor Driver ±800 mA 16 V 8958 Unipolar Stepper-Motor Quad Drivers 1 A 46 V 7024 & 7029 Unipolar Microstepper-Motor Quad Driver 1.2 A 46 V 7042 Unipolar Stepper-Motor Translator/Driver 1.25 A 50 V 5804 Unipolar Stepper-Motor Quad Driver 1.8 A 50 V 2540 Unipolar Stepper-Motor Quad Driver 1.8 A 50 V 2544 Unipolar Stepper-Motor Quad Driver 3 A 46 V 7026 Unipolar Microstepper-Motor Quad Driver 3 A 46 V 7044 * Current is maximum specified test condition, voltage is maximum rating. See specification for sustaining voltage limits or over-current protection voltage limits. Negative current is defined as coming out of (sourcing) the output. † Complete part number includes additional characters to indicate operating temperature range and package style. Also, see 3175, 3177, 3235, and 3275 Hall-effect sensors for use with brushless dc motors. 115 Northeast Cutoff, Box 15036 Worcester, Massachusetts 01615-0036 (508) 853-5000
