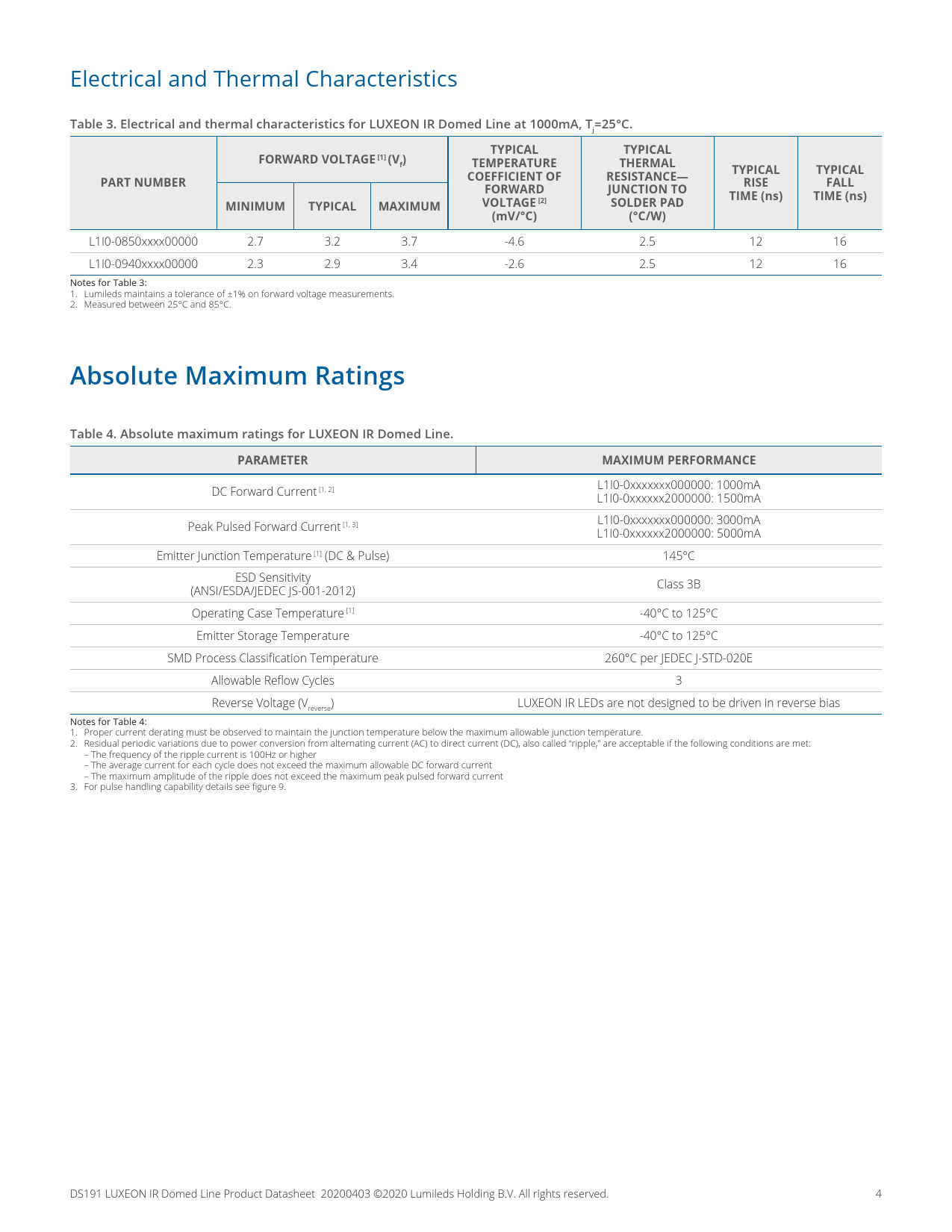

Electrical and Thermal Characteristics
Table 3 . Electrical and thermal characteristics for LUXEON IR Domed Line at 1000mA, T =25°C . j tyPIcaL tyPIcaL fOrWard VOLtaGe [1] (V )f temPeratUre tHermaL tyPIcaL tyPIcaL Part nUmBer cOeffIcIent Of resIstance— fOrWard JUnctIOn tO rIse faLL VOLtaGe tIme (ns) tIme (ns) [2] sOLder Pad mInImUm tyPIcaL maXImUm (mV/°c) (°c/W)
L1I0-0850xxxx00000 2.7 3.2 3.7 -4.6 2.5 12 16 L1I0-0940xxxx00000 2.3 2.9 3.4 -2.6 2.5 12 16 Notes for Table 3: 1. Lumileds maintains a tolerance of ±1% on forward voltage measurements. 2. Measured between 25°C and 85°C.
Absolute Maximum Ratings Table 4 . Absolute maximum ratings for LUXEON IR Domed Line . Parameter maXImUm PerfOrmance
DC Forward Current L1I0-0xxxxxxx000000: 1000mA [1, 2] L1I0-0xxxxxx2000000: 1500mA Peak Pulsed Forward Current L1I0-0xxxxxxx000000: 3000mA [1, 3] L1I0-0xxxxxx2000000: 5000mA Emitter Junction Temperature [1] (DC & Pulse) 145°C ESD Sensitivity (ANSI/ESDA/JEDEC JS-001-2012) Class 3B Operating Case Temperature [1] -40°C to 125°C Emitter Storage Temperature -40°C to 125°C SMD Process Classification Temperature 260°C per JEDEC J-STD-020E Allowable Reflow Cycles 3 Reverse Voltage (V ) LUXEON IR LEDs are not designed to be driven in reverse bias reverse Notes for Table 4: 1. Proper current derating must be observed to maintain the junction temperature below the maximum allowable junction temperature. 2. Residual periodic variations due to power conversion from alternating current (AC) to direct current (DC), also called “ripple,” are acceptable if the following conditions are met: – The frequency of the ripple current is 100Hz or higher – The average current for each cycle does not exceed the maximum allowable DC forward current – The maximum amplitude of the ripple does not exceed the maximum peak pulsed forward current 3. For pulse handling capability details see figure 9. DS191 LUXEON IR Domed Line Product Datasheet 20200403 ©2020 Lumileds Holding B.V. All rights reserved. 4 Document Outline General Product Information Product Test Conditions Part Number Nomenclature Radiometric Power Maintenance Environmental Compliance Performance Characteristics Product Selection Guide Optical Characteristics Electrical and Thermal Characteristics Absolute Maximum Ratings Characteristic Curves Spectral Power Distribution Characteristics Light Output Characteristics Forward Current Characteristics Wavelength Shift Characteristics Radiation Pattern Characteristics Permissible Pulse Handling Characteristics Product Bin and Labeling Definitions Decoding Product Bin Labeling Radiometric Power Bins Peak Wavelength Bins Forward Voltage Bins Mechanical Dimensions Reflow Soldering Guidelines JEDEC Moisture Sensitivity Solder Pad Design Packaging Information Pocket Tape Dimensions Reel Dimensions
