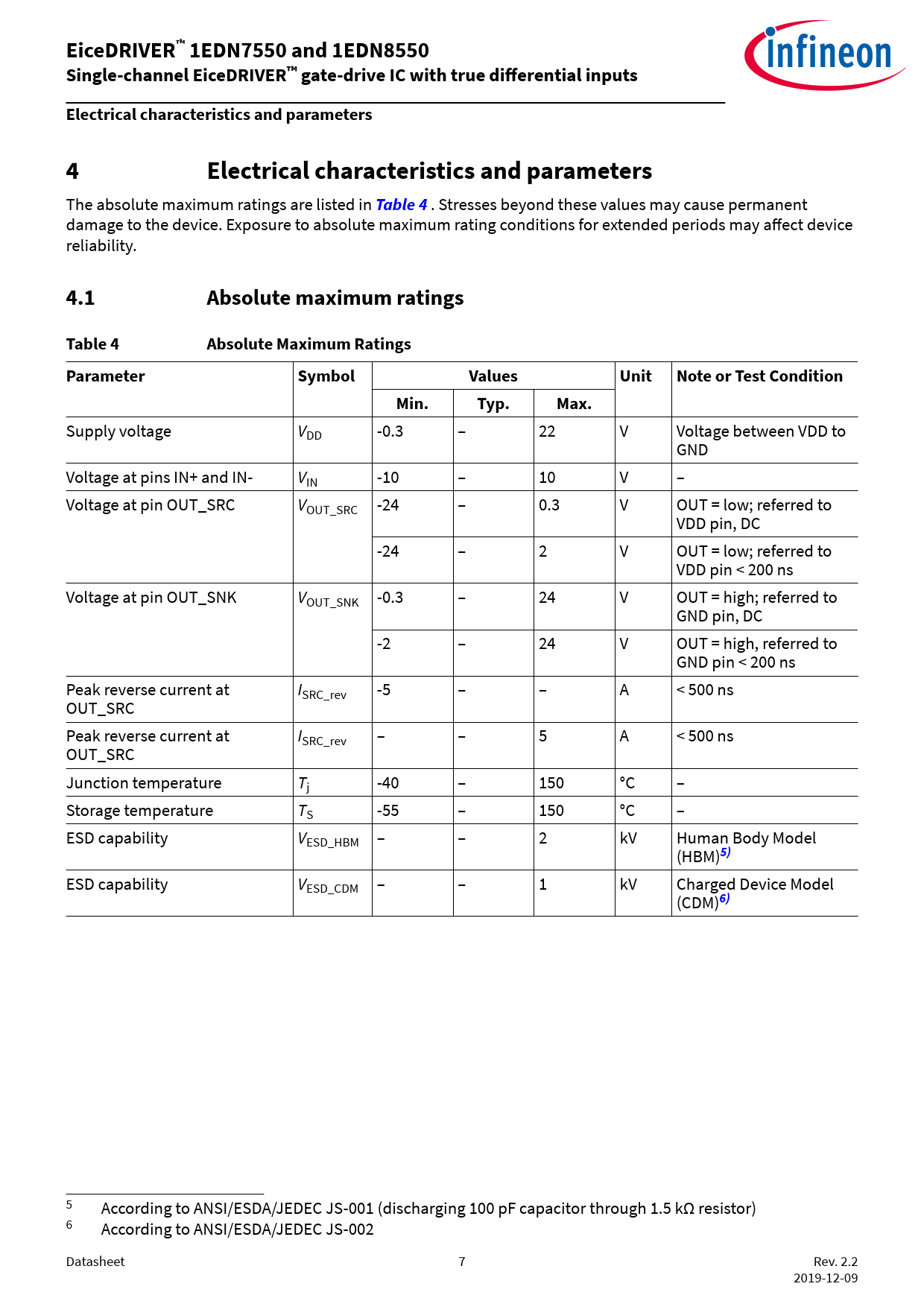

EiceDRIVER™ 1EDN7550 and 1EDN8550 Single-channel EiceDRIVER™ gate-drive IC with true differential inputs Electrical characteristics and parameters 4 Electrical characteristics and parameters
The absolute maximum ratings are listed in
Table 4
. Stresses beyond these values may cause permanent damage to the device. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
4.1 Absolute maximum ratings Table 4 Absolute Maximum Ratings Parameter Symbol Values Unit Note or Test Condition Min. Typ. Max.
Supply voltage VDD -0.3 – 22 V Voltage between VDD to GND Voltage at pins IN+ and IN- VIN -10 – 10 V – Voltage at pin OUT_SRC VOUT_SRC -24 – 0.3 V OUT = low; referred to VDD pin, DC -24 – 2 V OUT = low; referred to VDD pin < 200 ns Voltage at pin OUT_SNK VOUT_SNK -0.3 – 24 V OUT = high; referred to GND pin, DC -2 – 24 V OUT = high, referred to GND pin < 200 ns Peak reverse current at ISRC_rev -5 – – A < 500 ns OUT_SRC Peak reverse current at ISRC_rev – – 5 A < 500 ns OUT_SRC Junction temperature Tj -40 – 150 °C – Storage temperature TS -55 – 150 °C – ESD capability VESD_HBM – – 2 kV Human Body Model (HBM)
5)
ESD capability VESD_CDM – – 1 kV Charged Device Model (CDM)
6)
5 According to ANSI/ESDA/JEDEC JS-001 (discharging 100 pF capacitor through 1.5 kΩ resistor) 6 According to ANSI/ESDA/JEDEC JS-002 Datasheet 7 Rev. 2.2 2019-12-09 Document Outline Features Description Table of contents 1 Pin configuration and description 2 Block diagram 3 Functional description 3.1 Differential input 3.1.1 Common mode input range 3.2 Driver outputs 3.3 Supply voltage and Undervoltage Lockout (UVLO) 4 Electrical characteristics and parameters 4.1 Absolute maximum ratings 4.2 Thermal characteristics 4.3 Operating range 4.4 Electrical characteristics 4.5 Timing diagram 5 Typical characteristics 6 Typical applications 6.1 Switches with Kelvin source connection (4-pin packages) 6.2 Applications with significant parasitic PCB-inductances 6.3 Switches with bipolar gate drive 6.4 High-side switches 7 Layout guidelines 8 Package information 8.1 PG-SOT23-6 package 8.2 PG-TSNP-6 package 9 Device numbers and markings Revision history Disclaimer
