Datasheet AD8428-KGD (Analog Devices) - 5
| Hersteller | Analog Devices |
| Beschreibung | Low Noise, Low Gain Drift, G = 2000 Instrumentation Amplifier |
| Seiten / Seite | 7 / 5 — Data Sheet. AD8428-KGD. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. … |
| Dateiformat / Größe | PDF / 237 Kb |
| Dokumentensprache | Englisch |

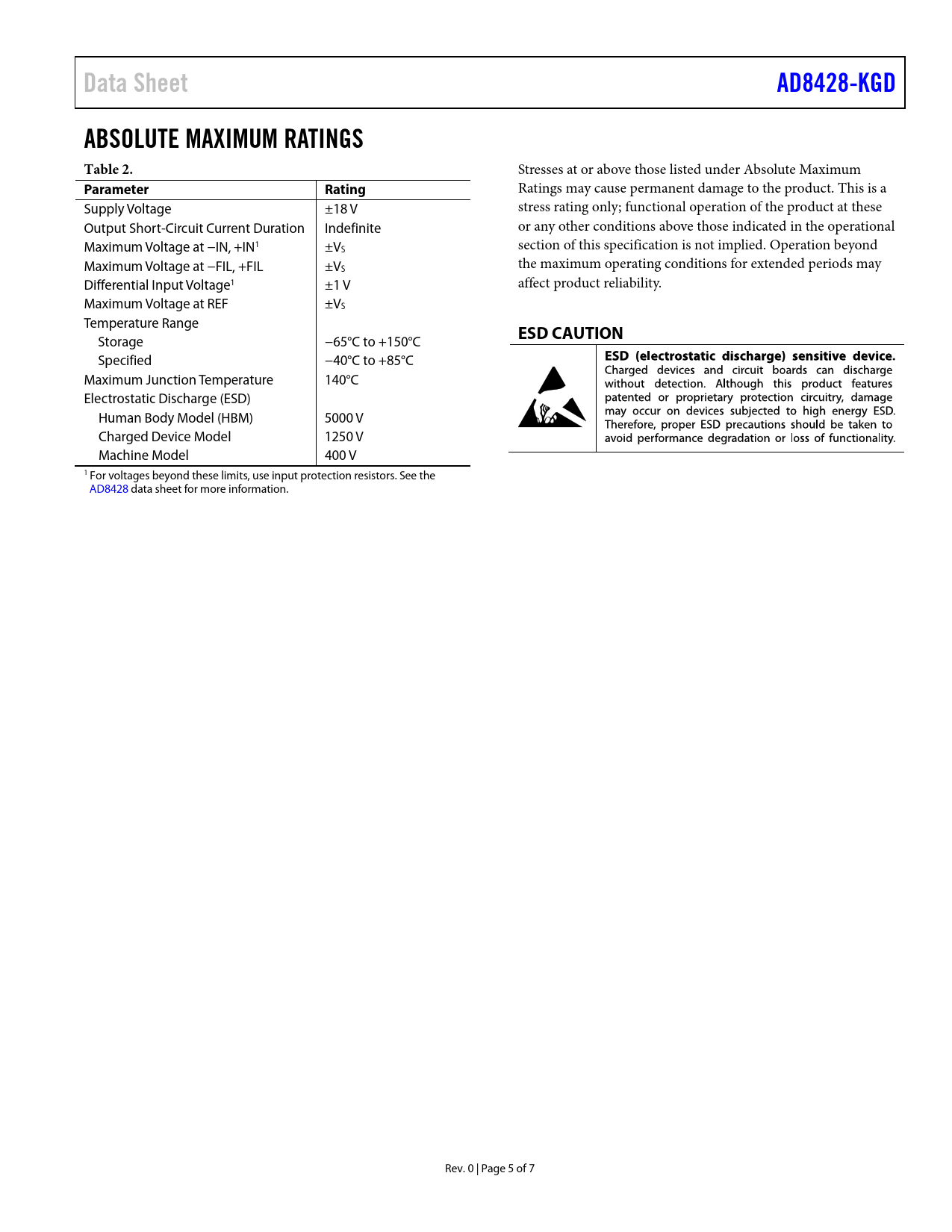

Data Sheet. AD8428-KGD. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter. Rating. ESD CAUTION
Modelllinie für dieses Datenblatt
Textversion des Dokuments
Data Sheet AD8428-KGD ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses at or above those listed under Absolute Maximum
Parameter Rating
Ratings may cause permanent damage to the product. This is a Supply Voltage ±18 V stress rating only; functional operation of the product at these Output Short-Circuit Current Duration Indefinite or any other conditions above those indicated in the operational Maximum Voltage at −IN, +IN1 ±VS section of this specification is not implied. Operation beyond Maximum Voltage at −FIL, +FIL ±VS the maximum operating conditions for extended periods may Differential Input Voltage1 ±1 V affect product reliability. Maximum Voltage at REF ±VS Temperature Range
ESD CAUTION
Storage −65°C to +150°C Specified −40°C to +85°C Maximum Junction Temperature 140°C Electrostatic Discharge (ESD) Human Body Model (HBM) 5000 V Charged Device Model 1250 V Machine Model 400 V 1 For voltages beyond these limits, use input protection resistors. See the AD8428 data sheet for more information. Rev. 0 | Page 5 of 7 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS OUTLINE DIMENSIONS DIE SPECIFICATIONS AND ASSEMBLY RECOMMENDATIONS ORDERING GUIDE
