Datasheet STUSB4500L (STMicroelectronics)
| Hersteller | STMicroelectronics |
| Beschreibung | Standalone USB Type-C sink port controller |
| Seiten / Seite | 32 / 1 — STUSB4500L. Features. Applications. Product status link. Product summary. … |
| Dateiformat / Größe | PDF / 1.8 Mb |
| Dokumentensprache | Englisch |
STUSB4500L. Features. Applications. Product status link. Product summary. Order code. Description. Package. Marking. DS13102. Rev 2
Modelllinie für dieses Datenblatt
Textversion des Dokuments

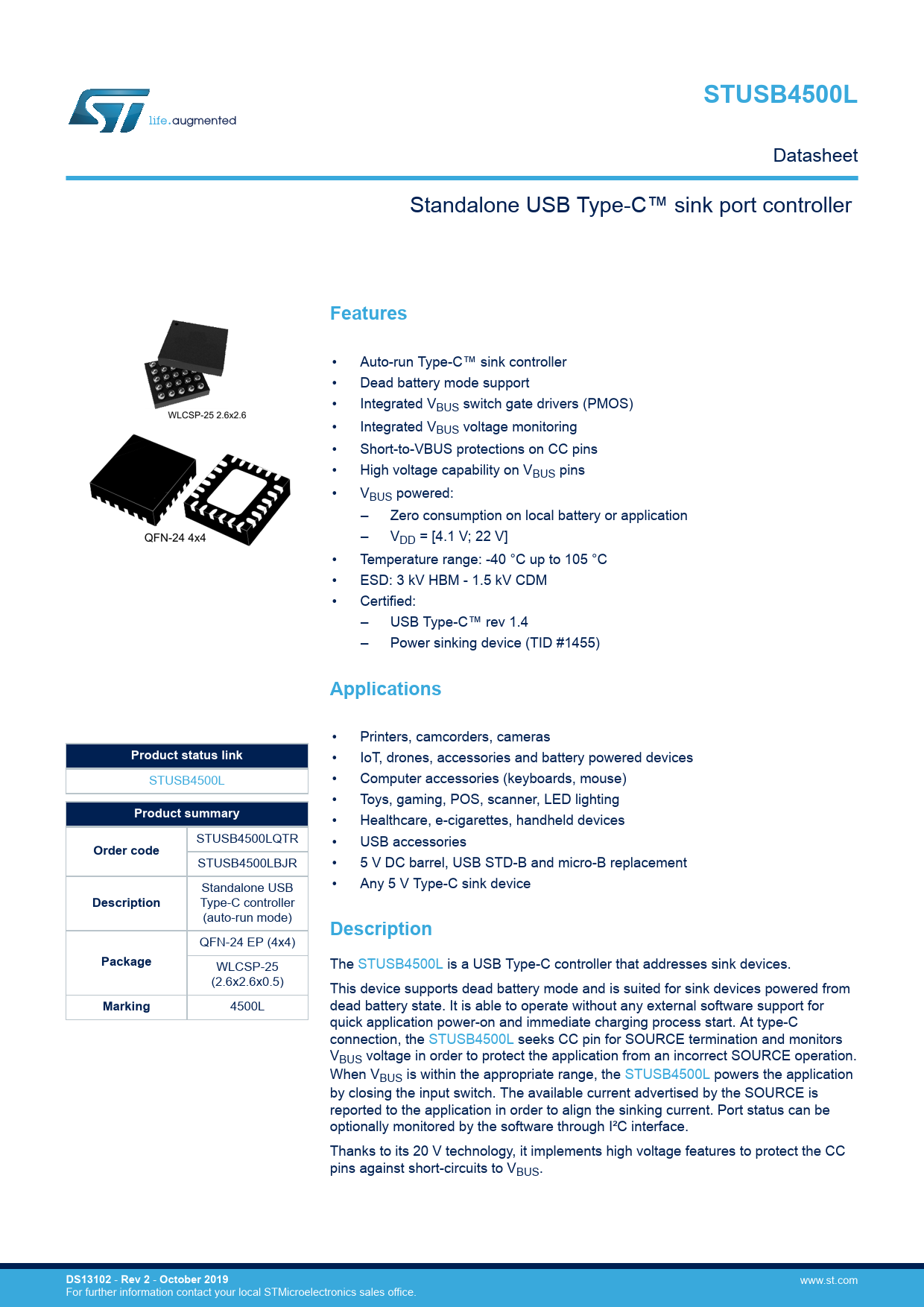

STUSB4500L
Datasheet Standalone USB Type-C™ sink port controller
Features
• Auto-run Type-C™ sink controller • Dead battery mode support • Integrated VBUS switch gate drivers (PMOS) • Integrated VBUS voltage monitoring • Short-to-VBUS protections on CC pins • High voltage capability on VBUS pins • VBUS powered: – Zero consumption on local battery or application – VDD = [4.1 V; 22 V] • Temperature range: -40 °C up to 105 °C • ESD: 3 kV HBM - 1.5 kV CDM • Certified: – USB Type-C™ rev 1.4 – Power sinking device (TID #1455)
Applications
• Printers, camcorders, cameras
Product status link
• IoT, drones, accessories and battery powered devices STUSB4500L • Computer accessories (keyboards, mouse) • Toys, gaming, POS, scanner, LED lighting
Product summary
• Healthcare, e-cigarettes, handheld devices STUSB4500LQTR • USB accessories
Order code
STUSB4500LBJR • 5 V DC barrel, USB STD-B and micro-B replacement • Any 5 V Type-C sink device Standalone USB
Description
Type-C controller (auto-run mode)
Description
QFN-24 EP (4x4)
Package
WLCSP-25 The STUSB4500L is a USB Type-C controller that addresses sink devices. (2.6x2.6x0.5) This device supports dead battery mode and is suited for sink devices powered from
Marking
4500L dead battery state. It is able to operate without any external software support for quick application power-on and immediate charging process start. At type-C connection, the STUSB4500L seeks CC pin for SOURCE termination and monitors VBUS voltage in order to protect the application from an incorrect SOURCE operation. When VBUS is within the appropriate range, the STUSB4500L powers the application by closing the input switch. The available current advertised by the SOURCE is reported to the application in order to align the sinking current. Port status can be optionally monitored by the software through I²C interface. Thanks to its 20 V technology, it implements high voltage features to protect the CC pins against short-circuits to VBUS.
DS13102
-
Rev 2
-
October 2019
www.st.com For further information contact your local STMicroelectronics sales office. Document Outline Cover image Product status link / summary Product status link / summary Features Applications Description 1 Functional description 1.1 Block overview 2 Inputs/outputs 2.1 Pinout 2.2 Pin description 2.2.1 CC1 / CC2 2.2.2 CC1DB / CC2DB 2.2.3 RESET 2.2.4 I²C interface pins 2.2.5 DISCH 2.2.6 GND 2.2.7 ATTACH 2.2.8 RP_3A/RP_1A5 2.2.9 GPIO 2.2.10 VBUS_EN_SNK 2.2.11 A_B_SIDE 2.2.12 VBUS_VS_DISCH 2.2.13 VREG_1V2 2.2.14 VSYS 2.2.15 VREG_2V7 2.2.16 VDD 3 Description of the features 3.1 CC interface 3.2 VBUS power path control 3.2.1 VBUS monitoring 3.2.2 VBUS discharge 3.2.3 VBUS power path assertion 3.3 Dead battery mode 3.4 High voltage protections 3.5 Hardware fault management 3.6 Debug accessory mode detection 4 I²C Interface 4.1 Read and write operations 4.2 Timing specifications 5 Start-up configuration 5.1 User-defined parameters 5.2 Default start-up configuration 6 Application 6.1 General information 6.1.1 Power supplies 6.1.2 Connection to MCU or application processor 6.2 Typical application 7 Electrical characteristics 7.1 Absolute maximum ratings 7.2 Operating conditions 7.3 Electrical and timing characteristics 8 Package information 8.1 QFN-24 EP (4x4) package information 8.2 WLCSP (2.6x2.6x0.5) 25 bumps package information 8.3 Thermal information 9 Terms and abbreviations Revision history
