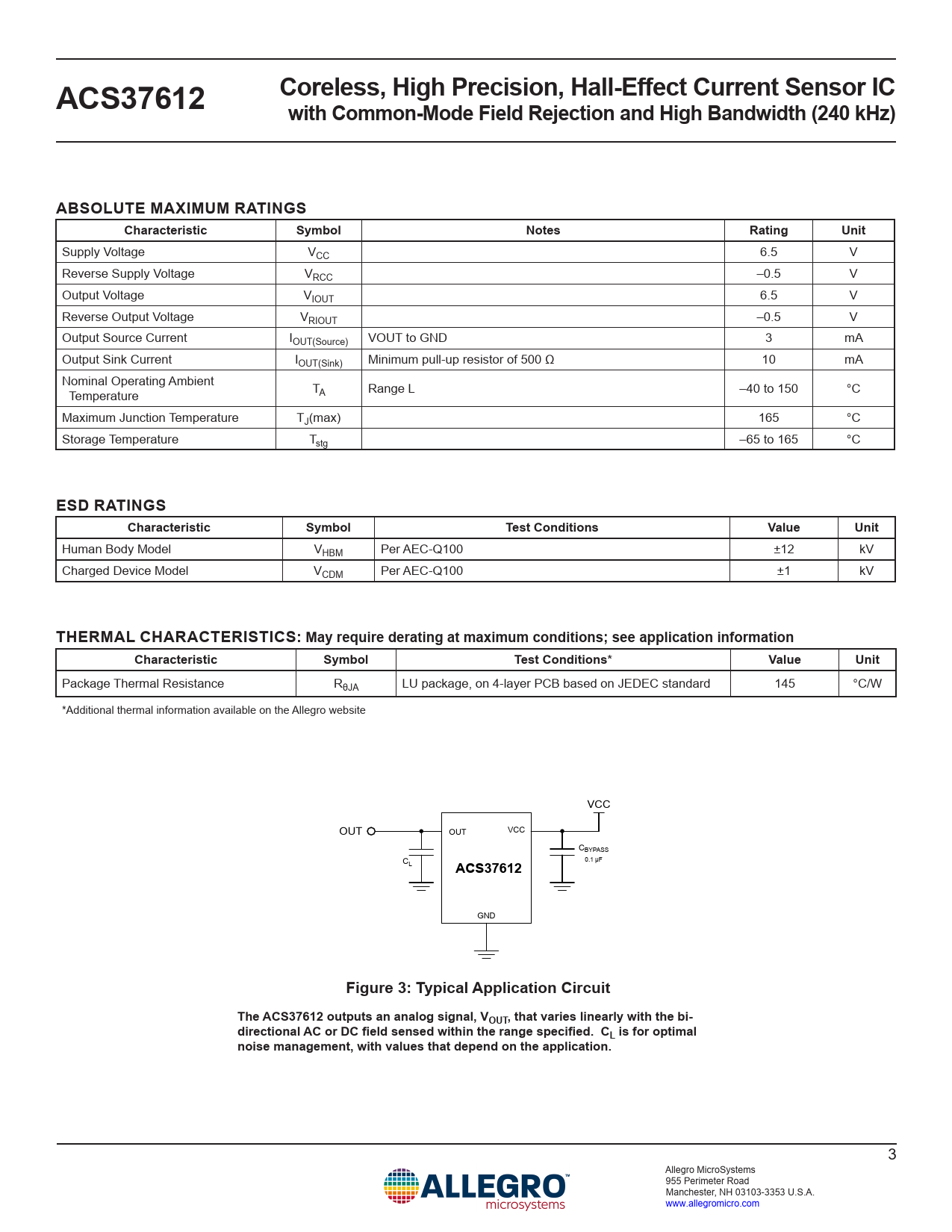

Coreless, High Precision, Hall-Effect Current Sensor IC ACS37612 with Common-Mode Field Rejection and High Bandwidth (240 kHz) ABSOLUTE MAXIMUM RATINGS Characteristic Symbol Notes Rating Unit
Supply Voltage VCC 6.5 V Reverse Supply Voltage VRCC –0.5 V Output Voltage VIOUT 6.5 V Reverse Output Voltage VRIOUT –0.5 V Output Source Current IOUT(Source) VOUT to GND 3 mA Output Sink Current IOUT(Sink) Minimum pull-up resistor of 500 Ω 10 mA Nominal Operating Ambient Temperature TA Range L –40 to 150 °C Maximum Junction Temperature TJ(max) 165 °C Storage Temperature Tstg –65 to 165 °C
ESD RATINGS Characteristic Symbol Test Conditions Value Unit
Human Body Model VHBM Per AEC-Q100 ±12 kV Charged Device Model VCDM Per AEC-Q100 ±1 kV
THERMAL CHARACTERISTICS: May require derating at maximum conditions; see application information Characteristic Symbol Test Conditions* Value Unit
Package Thermal Resistance RθJA LU package, on 4-layer PCB based on JEDEC standard 145 °C/W *Additional thermal information available on the Allegro website VCC OUT OUT VCC CBYPASS C 0.1 µF L
ACS37612
GND
Figure 3: Typical Application Circuit The ACS37612 outputs an analog signal, VOUT, that varies linearly with the bi- directional AC or DC field sensed within the range specified. CL is for optimal noise management, with values that depend on the application.
