A product Line of Diodes Incorporated

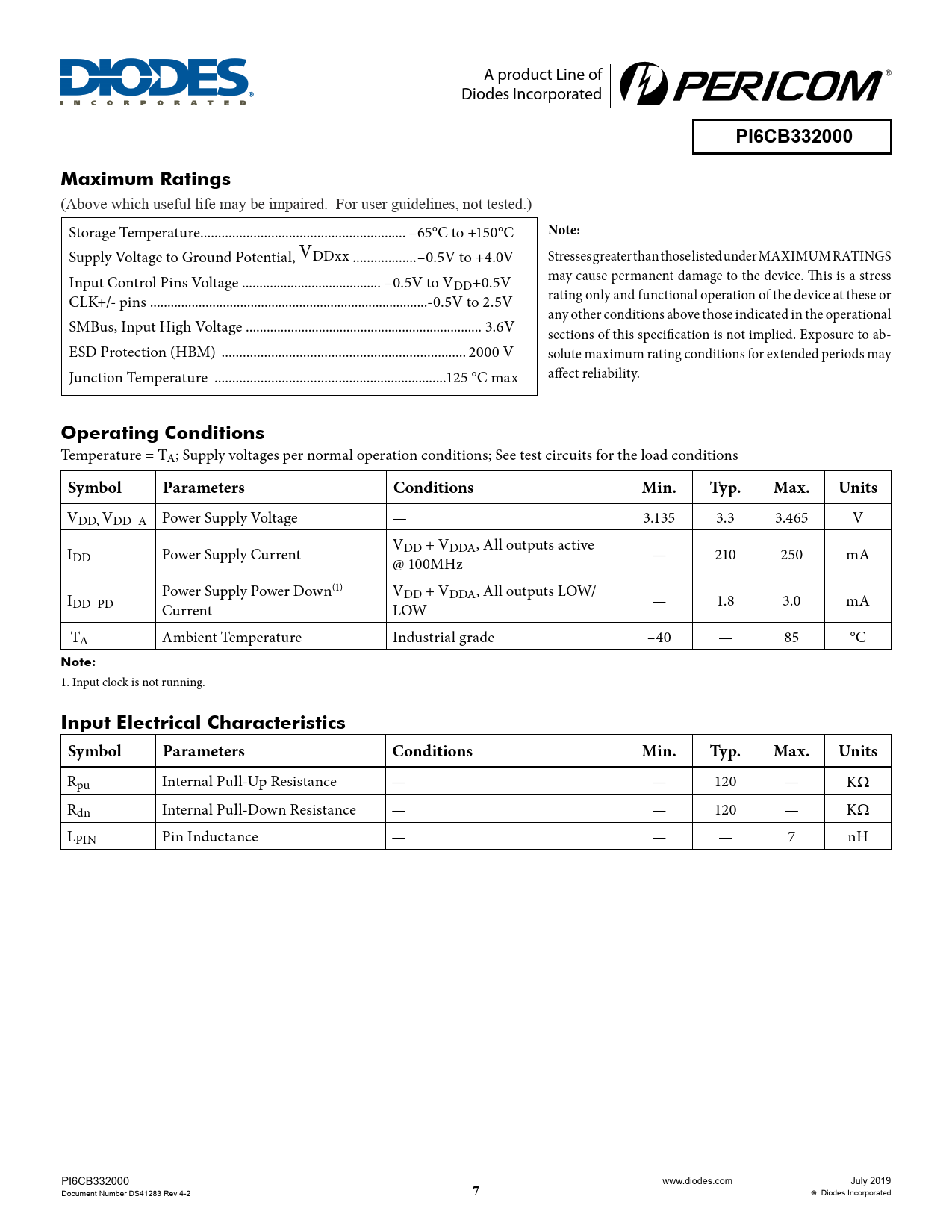

PI6CB332000 Maximum Ratings
(Above which useful life may be impaired. For user guidelines, not tested.) Storage Temperature .. –65°C to +150°C
Note:
Supply Voltage to Ground Potential, VDDxx ..–0.5V to +4.0V Stresses greater than those listed under MAXIMUM RATINGS Input Control Pins Voltage .. –0.5V to V may cause permanent damage to the device. This is a stress DD+0.5V CLK+/- pins ..-0.5V to 2.5V rating only and functional operation of the device at these or any other conditions above those indicated in the operational SMBus, Input High Voltage .. 3.6V sections of this specification is not implied. Exposure to ab- ESD Protection (HBM) ... 2000 V solute maximum rating conditions for extended periods may Junction Temperature ..125 °C max affect reliability.
Operating Conditions
Temperature = TA; Supply voltages per normal operation conditions; See test circuits for the load conditions
Symbol Parameters Conditions Min. Typ. Max. Units
VDD, VDD_A Power Supply Voltage — 3.135 3.3 3.465 V IDD Power Supply Current VDD + VDDA, All outputs active @ 100MHz — 210 250 mA I Power Supply Power Down(1) VDD + VDDA, All outputs LOW/ DD_PD Current LOW — 1.8 3.0 mA TA Ambient Temperature Industrial grade –40 — 85 °C
Note:
1. Input clock is not running.
Input Electrical Characteristics Symbol Parameters Conditions Min. Typ. Max. Units
Rpu Internal Pull-Up Resistance — — 120 — KW Rdn Internal Pull-Down Resistance — — 120 — KW LPIN Pin Inductance — — — 7 nH PI6CB332000 www.diodes.com July 2019 Document Number DS41283 Rev 4-2 7 Diodes Incorporated
