| Beschreibung | 3.3V Very Low Power 8-Output PCIe Clock Generator With On-chip Termination |
| Seiten / Seite | 24 / 2 — PI6CG33801C. Pin Configuration. GND. Pin Description. Pin #. Pin Name. … |
| Dateiformat / Größe | PDF / 1.7 Mb |
| Dokumentensprache | Englisch |
PI6CG33801C. Pin Configuration. GND. Pin Description. Pin #. Pin Name. Type. Description
Modelllinie für dieses Datenblatt
Textversion des Dokuments
A product Line of Diodes Incorporated

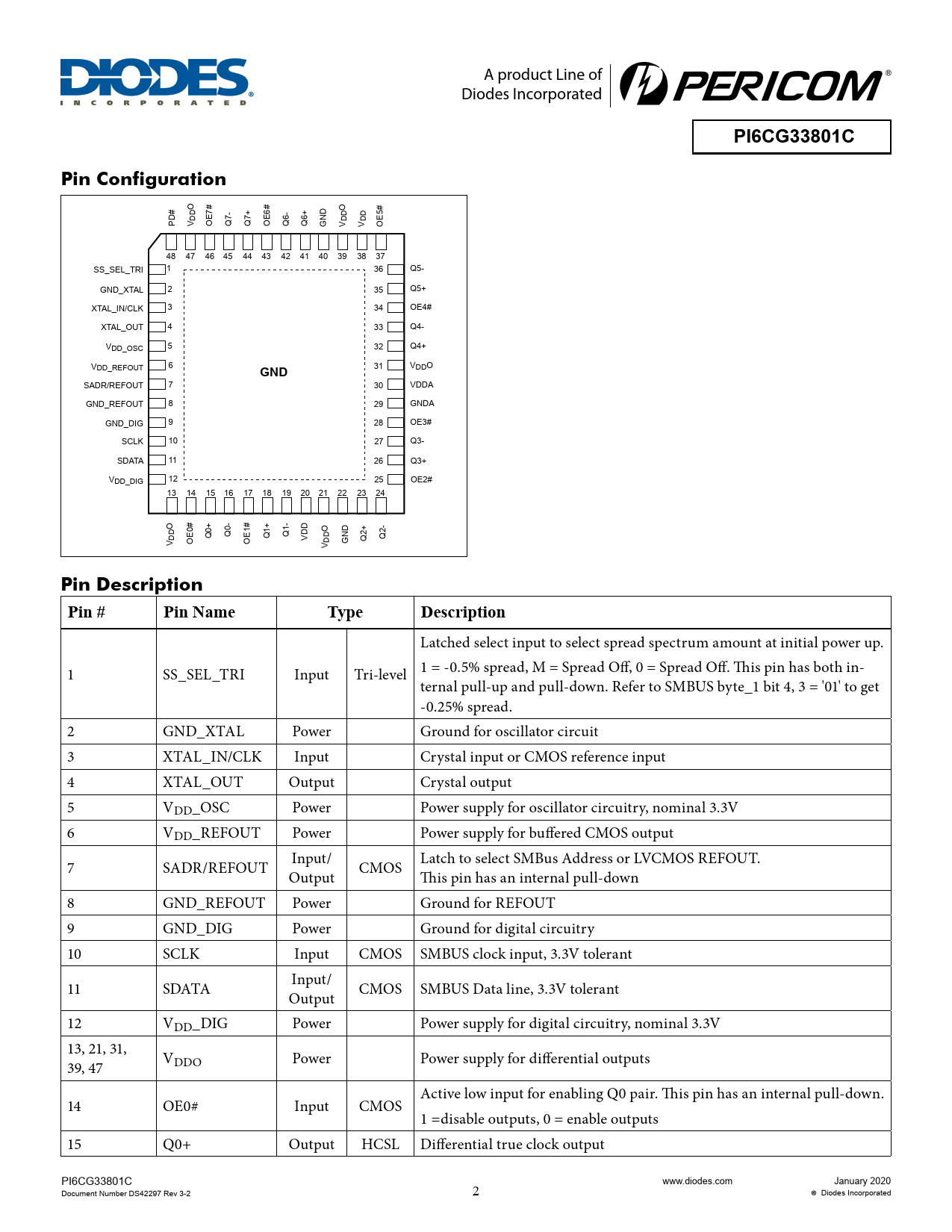

PI6CG33801C Pin Configuration
O O PD# V DD OE7# Q7- Q7+ OE6# Q6- Q6+ GND V DD V DD OE5# 48 47 46 45 44 43 42 41 40 39 38 37 SS_SEL_TRI 1 36 Q5- GND_XTAL 2 35 Q5+ XTAL_IN/CLK 3 34 OE4# XTAL_OUT 4 33 Q4- V 5 DD_OSC 32 Q4+ V 6 DD_REFOUT 31 VDDO
GND
SADR/REFOUT 7 30 VDDA GND_REFOUT 8 29 GNDA GND_DIG 9 28 OE3# SCLK 10 27 Q3- SDATA 11 26 Q3+ V 12 DD_DIG 25 OE2# 13 14 15 16 17 18 19 20 21 22 23 24 O O Q0+ Q0- Q1+ Q1- V DD OE0# VDD OE1# Q2+ V DD GND Q2-
Pin Description Pin # Pin Name Type Description
Latched select input to select spread spectrum amount at initial power up. 1 SS_SEL_TRI Input Tri-level 1 = -0.5% spread, M = Spread Off, 0 = Spread Off. This pin has both in- ternal pull-up and pull-down. Refer to SMBUS byte_1 bit 4, 3 = '01' to get -0.25% spread. 2 GND_XTAL Power Ground for oscillator circuit 3 XTAL_IN/CLK Input Crystal input or CMOS reference input 4 XTAL_OUT Output Crystal output 5 VDD_OSC Power Power supply for oscillator circuitry, nominal 3.3V 6 VDD_REFOUT Power Power supply for buffered CMOS output 7 SADR/REFOUT Input/ Output CMOS Latch to select SMBus Address or LVCMOS REFOUT. This pin has an internal pull-down 8 GND_REFOUT Power Ground for REFOUT 9 GND_DIG Power Ground for digital circuitry 10 SCLK Input CMOS SMBUS clock input, 3.3V tolerant 11 SDATA Input/ Output CMOS SMBUS Data line, 3.3V tolerant 12 VDD_DIG Power Power supply for digital circuitry, nominal 3.3V 13, 21, 31, 39, 47 VDDO Power Power supply for differential outputs Active low input for enabling Q0 pair. This pin has an internal pull-down. 14 OE0# Input CMOS 1 =disable outputs, 0 = enable outputs 15 Q0+ Output HCSL Differential true clock output PI6CG33801C www.diodes.com January 2020 Document Number DS42297 Rev 3-2 2 Diodes Incorporated
