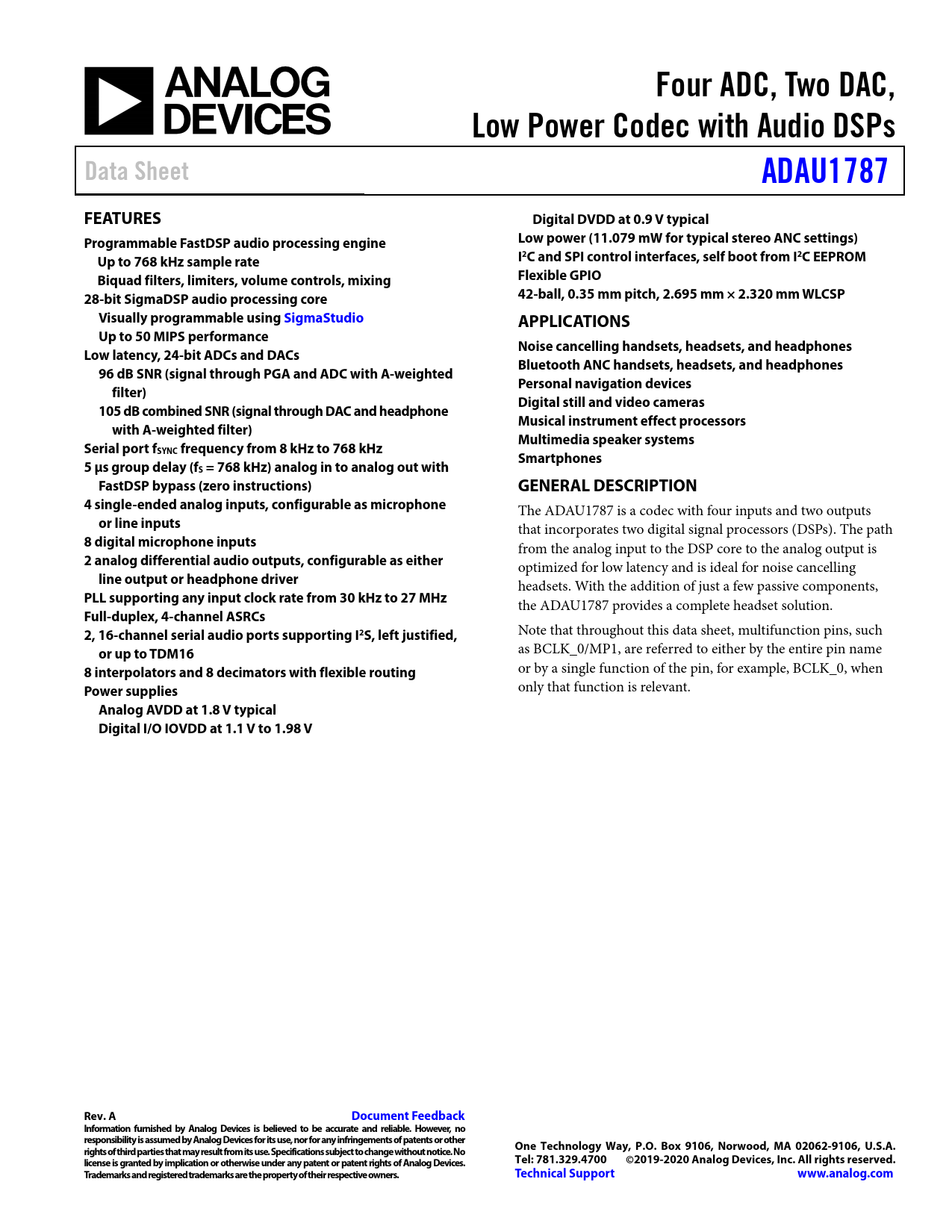

Four ADC, Two DAC, Low Power Codec with Audio DSPs Data Sheet ADAU1787 FEATURES Digital DVDD at 0.9 V typical Programmable FastDSP audio processing engine Low power (11.079 mW for typical stereo ANC settings) Up to 768 kHz sample rate I2C and SPI control interfaces, self boot from I2C EEPROM Biquad filters, limiters, volume controls, mixing Flexible GPIO 28-bit SigmaDSP audio processing core 42-ball, 0.35 mm pitch, 2.695 mm × 2.320 mm WLCSP Visually programmable using SigmaStudio APPLICATIONS Up to 50 MIPS performance Noise cancelling handsets, headsets, and headphones Low latency, 24-bit ADCs and DACs Bluetooth ANC handsets, headsets, and headphones 96 dB SNR (signal through PGA and ADC with A-weighted Personal navigation devices filter) Digital still and video cameras 105 dB combined SNR (signal through DAC and headphone Musical instrument effect processors with A-weighted filter) Multimedia speaker systems Serial port fSYNC frequency from 8 kHz to 768 kHz Smartphones 5 μs group delay (fS = 768 kHz) analog in to analog out with FastDSP bypass (zero instructions) GENERAL DESCRIPTION 4 single-ended analog inputs, configurable as microphone
The ADAU1787 is a codec with four inputs and two outputs
or line inputs
that incorporates two digital signal processors (DSPs). The path
8 digital microphone inputs
from the analog input to the DSP core to the analog output is
2 analog differential audio outputs, configurable as either
optimized for low latency and is ideal for noise cancelling
line output or headphone driver
headsets. With the addition of just a few passive components,
PLL supporting any input clock rate from 30 kHz to 27 MHz
the ADAU1787 provides a complete headset solution.
Full-duplex, 4-channel ASRCs 2, 16-channel serial audio ports supporting I2S, left justified,
Note that throughout this data sheet, multifunction pins, such
or up to TDM16
as BCLK_0/MP1, are referred to either by the entire pin name
8 interpolators and 8 decimators with flexible routing
or by a single function of the pin, for example, BCLK_0, when
Power supplies
only that function is relevant.
Analog AVDD at 1.8 V typical Digital I/O IOVDD at 1.1 V to 1.98 V Rev. A Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 ©2019-2020 Analog Devices, Inc. All rights reserved. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
