10. Optical Filter Specification
Modelllinie für dieses Datenblatt
Textversion des Dokuments
[AK9730AJF21]
10. Optical Filter Specification

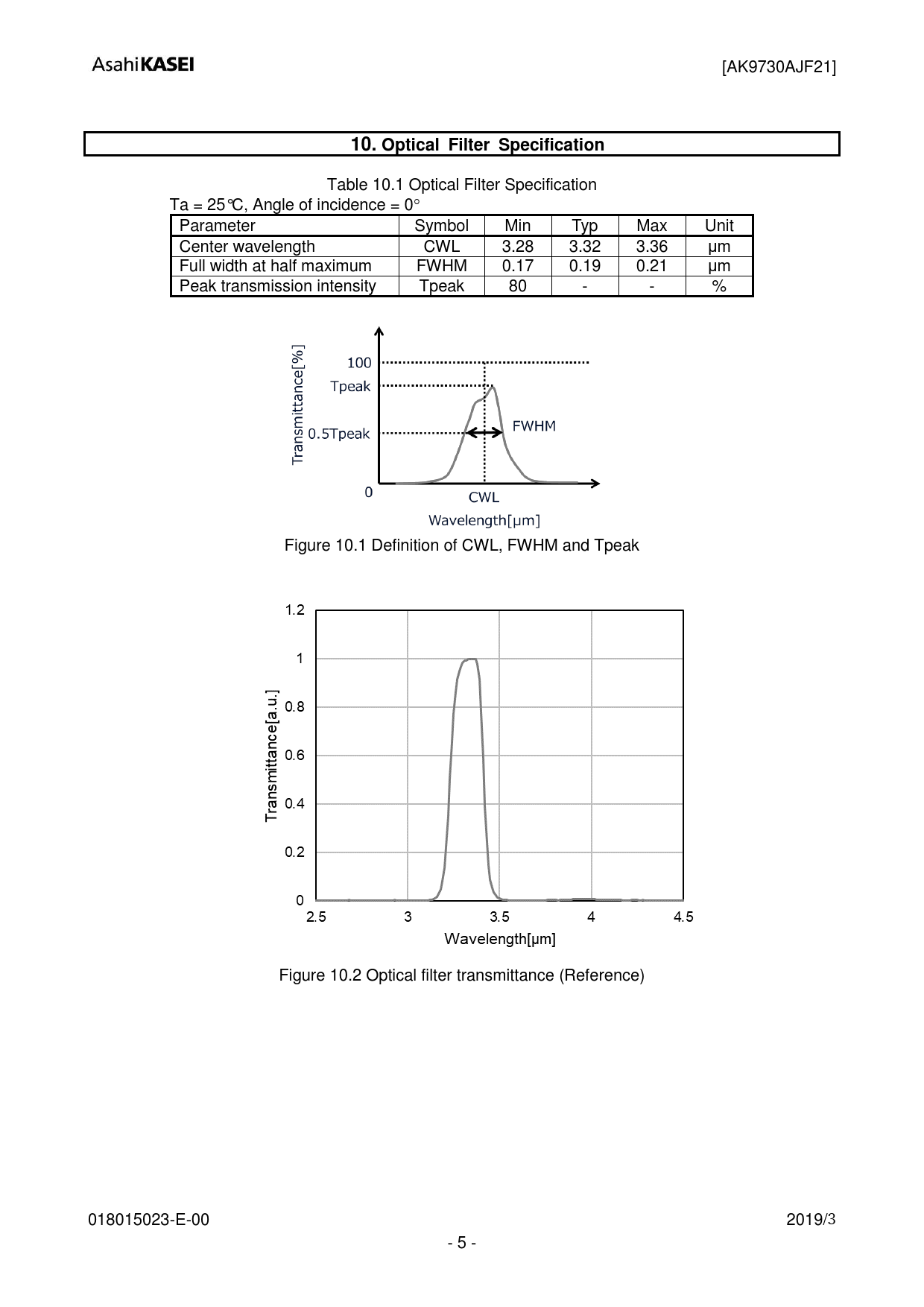

Table 10.1 Optical Filter Specification Ta = 25°C, Angle of incidence = 0 Parameter Symbol Min Typ Max Unit Center wavelength CWL 3.28 3.32 3.36 μm Full width at half maximum FWHM 0.17 0.19 0.21 μm Peak transmission intensity Tpeak 80 - - % Figure 10.1 Definition of CWL, FWHM and Tpeak Figure 10.2 Optical filter transmittance (Reference) 018015023-E-00 2019/3 - 5 -
