Ultra-Low Power Voice Codec CMX655D

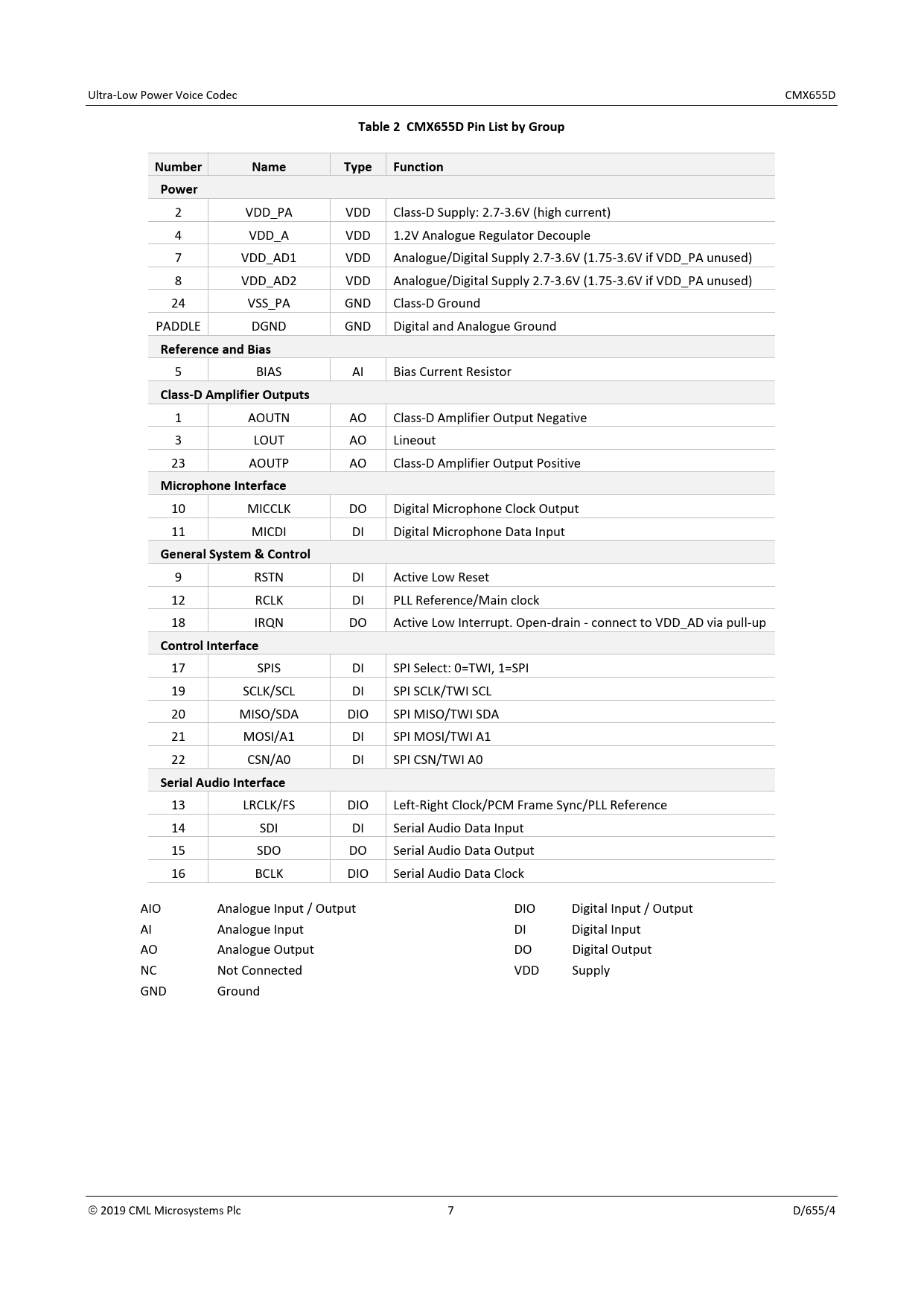

Table 2 CMX655D Pin List by Group Number Name Type Function Power
2 VDD_PA VDD Class-D Supply: 2.7-3.6V (high current) 4 VDD_A VDD 1.2V Analogue Regulator Decouple 7 VDD_AD1 VDD Analogue/Digital Supply 2.7-3.6V (1.75-3.6V if VDD_PA unused) 8 VDD_AD2 VDD Analogue/Digital Supply 2.7-3.6V (1.75-3.6V if VDD_PA unused) 24 VSS_PA GND Class-D Ground PADDLE DGND GND Digital and Analogue Ground
