OPTIREG™ Linear TLS715B0NAV50 Low dropout linear voltage regulator Block description and electrical characteristics
Modelllinie für dieses Datenblatt
Textversion des Dokuments
link to page 10 link to page 10 link to page 10 link to page 10 link to page 10 link to page 10 link to page 10 link to page 10 link to page 10 link to page 10 link to page 10

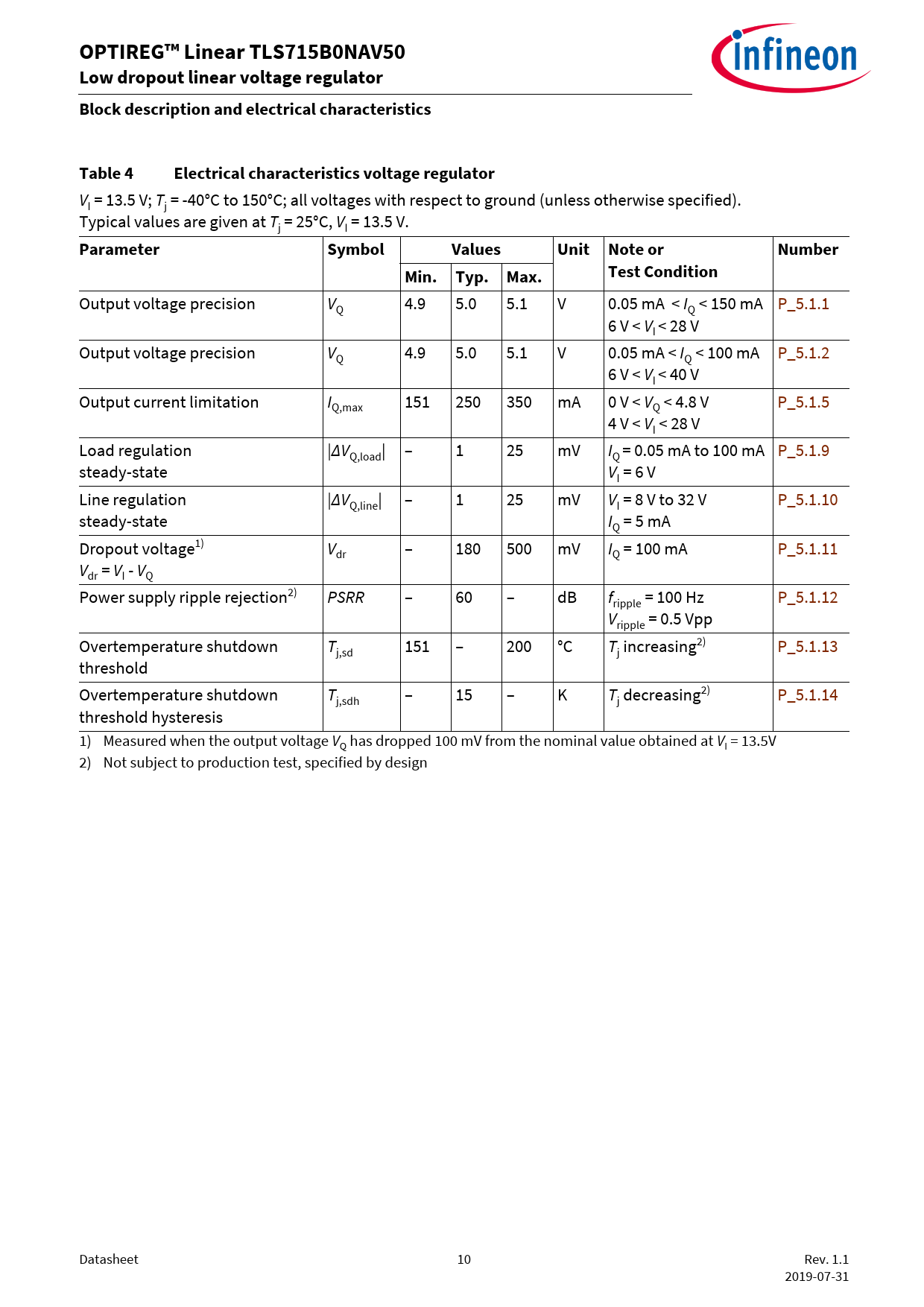

OPTIREG™ Linear TLS715B0NAV50 Low dropout linear voltage regulator Block description and electrical characteristics Table 4 Electrical characteristics voltage regulator
VI = 13.5 V; Tj = -40°C to 150°C; all voltages with respect to ground (unless otherwise specified). Typical values are given at Tj = 25°C, VI = 13.5 V.
Parameter Symbol Values Unit Note or Number Test Condition Min. Typ. Max.
Output voltage precision VQ 4.9 5.0 5.1 V 0.05 mA < IQ < 150 mA P_5.1.1 6 V < VI < 28 V Output voltage precision VQ 4.9 5.0 5.1 V 0.05 mA < IQ < 100 mA P_5.1.2 6 V < VI < 40 V Output current limitation IQ,max 151 250 350 mA 0 V < VQ < 4.8 V P_5.1.5 4 V < VI < 28 V Load regulation |∆VQ,load| – 1 25 mV IQ= 0.05 mA to 100 mA P_5.1.9 steady-state VI = 6 V Line regulation |∆VQ,line| – 1 25 mV VI = 8 V to 32 V P_5.1.10 steady-state IQ = 5 mA Dropout voltage1) Vdr – 180 500 mV IQ = 100 mA P_5.1.11 Vdr = VI - VQ Power supply ripple rejection2) PSRR – 60 – dB fripple = 100 Hz P_5.1.12 Vripple = 0.5 Vpp Overtemperature shutdown Tj,sd 151 – 200 °C Tj increasing2) P_5.1.13 threshold Overtemperature shutdown Tj,sdh – 15 – K Tj decreasing2) P_5.1.14 threshold hysteresis 1) Measured when the output voltage VQ has dropped 100 mV from the nominal value obtained at VI = 13.5V 2) Not subject to production test, specified by design Datasheet 10 Rev. 1.1 2019-07-31 Document Outline Features Potential applications Product validation Description Table of contents 1 Block diagram 2 Pin configuration 2.1 Pin assignment PG-TSNP-7 2.2 Pin definitions and functions PG-TSNP-7 3 General product characteristics 3.1 Absolute maximum ratings 3.2 Functional range 3.3 Thermal resistance 4 Block description and electrical characteristics 4.1 Voltage regulation 4.2 Typical performance characteristics voltage regulator 4.3 Current consumption 4.4 Typical performance characteristics current consumption 4.5 Enable 4.6 Typical performance characteristics enable 5 Application information 5.1 Application diagram 5.2 Selection of external components 5.2.1 Input pin 5.2.2 Output pin 5.3 Thermal considerations 5.4 Reverse polarity protection 5.5 Further application information 6 Package information 7 Revision history
